RUN ELECTRIC CABLES
LH TAILLIGHT CONNECTORS
(TO VEHICLE WIRING HARNESS)
PUMP
BOX
CONTROLLER

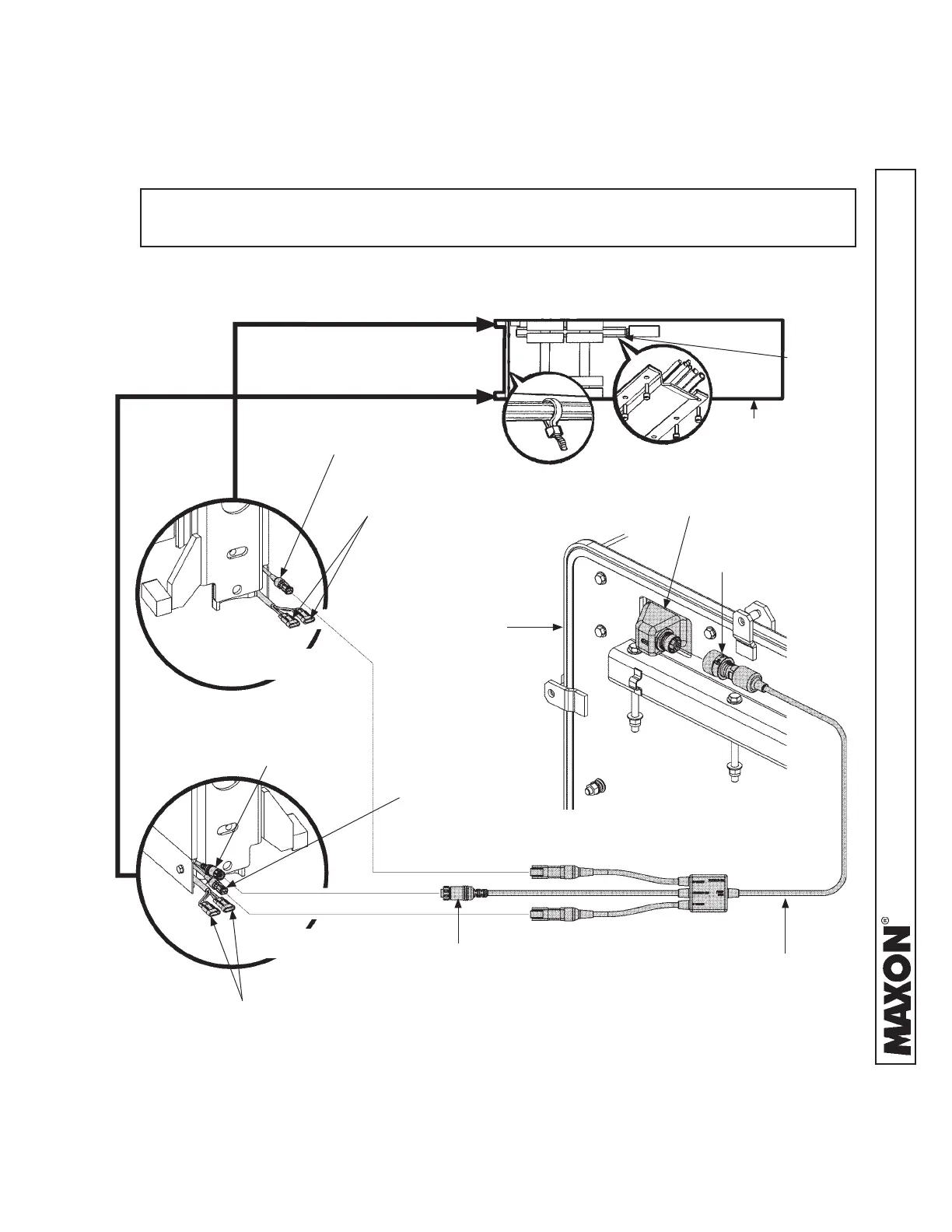

FIG. 53-1
RH TAILLIGHT CONNECTORS
(TO VEHICLE WIRING HARNESS)
STEP 8 - RUN HYDRAULIC LINES & ELECTRIC CABLES
- Continued
VEHICLE
(BOTTOM VIEW)
CHANNEL
GUARD
RH
LH
LH COLUMN
RH COLUMN
D-VALVE CABLE
CONNECTOR
CONTROL
SWITCH CABLE
(GREEN) CONNECTOR
INTERCONNECT
HARNESS
D-VALVE CABLE
CONNECTOR
GREEN
CONNECTOR
NOTE: Liftgates with auxiliary or street-side controls have a tee assembly with three
green connectors. Use the following procedure on all green connectors.
1. Locate GREEN connector at the base of RH column, that connects runner switch to
interconnect harness (FIG. 53-1).
TWIST-LOCK
CONNECTOR
