RUN GRAVITY DOWN HYDRAULIC LINES
STEP 8 - RUN HYDRAULIC LINES & ELECTRIC CABLES
- Continued

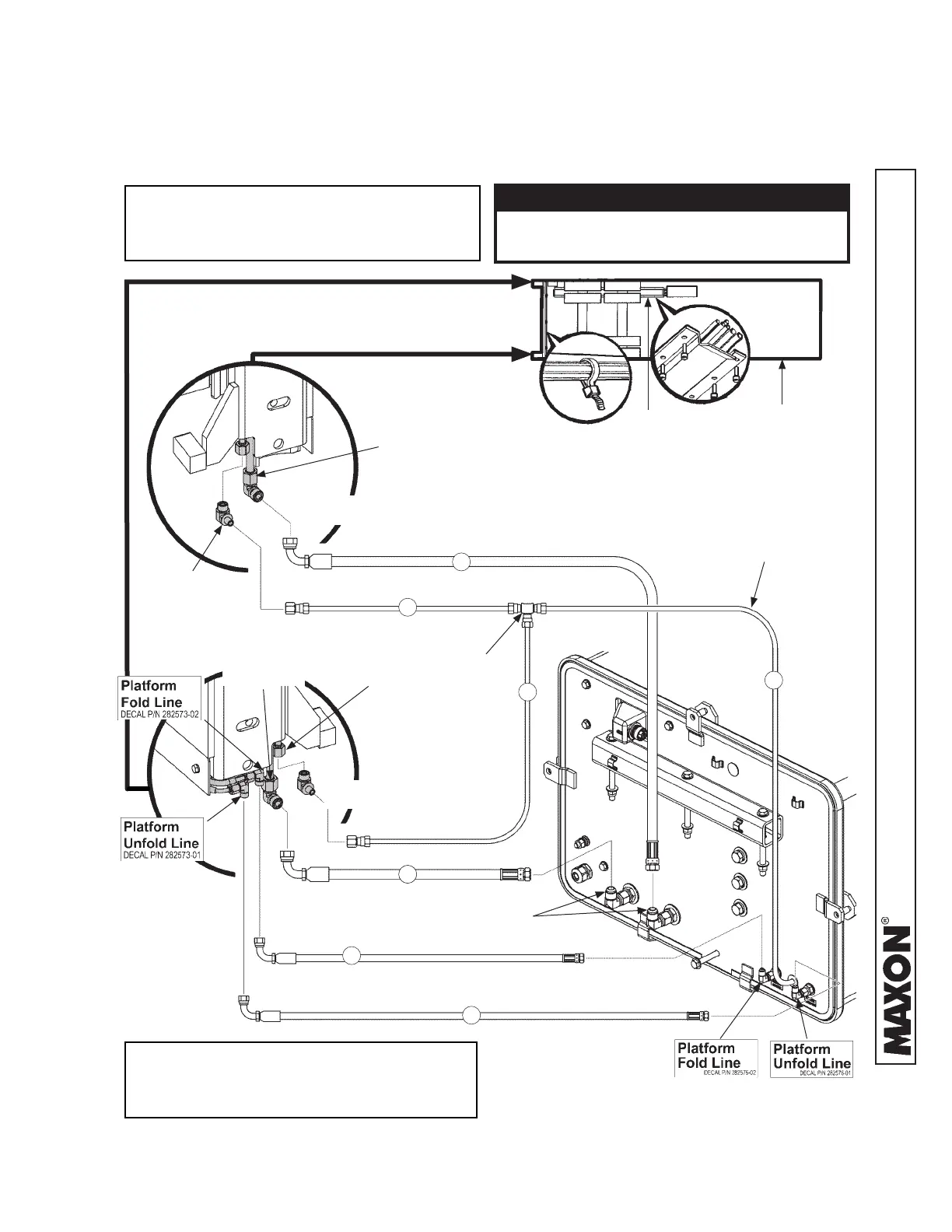

TEE
FIG. 48-1
4
1
2
3
4
LIFTING
LINE
RETURN
LINE
RETURN
LINE
3
LIFTING
LINE
LIFTING
LINE
RETURN LINE
(TO PUMP RESERVOIR)
NOTE: See TABLES 49-1 & 49-2 for
information on the numbered
hoses in this illustration.
Before connecting hoses, ensure face
seal o-rings are in place.
CAUTION
NOTE: Lifting & folding hoses run up
from column connectors, as
shown, to bottom of vehicle fl oor.
LH COLUMN
RH COLUMN
VEHICLE
(BOTTOM VIEW)
CHANNEL
GUARD
RH
LH
4
