VEHICLE REQUIREMENTS

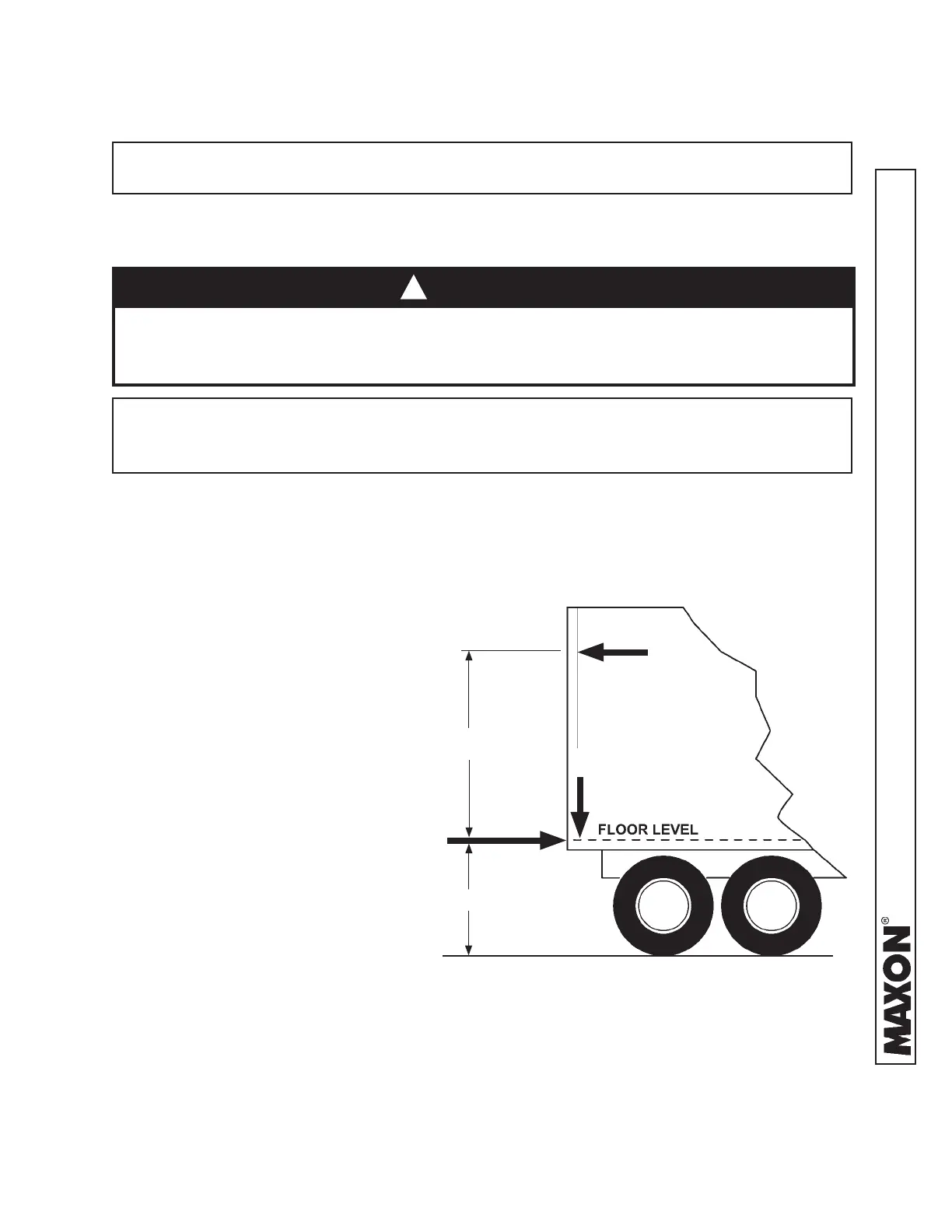

The BMR is a body-mounted Liftgate
that puts forces on the side walls of truck
and trailer bodies (FIG. 8-1). For cor-
rect installation, truck and trailer bodies
must be strong enough to withstand the
tension, compression and shear forces
shown in FIG. 8-1. Use TABLES 9-1,
9-2, 9-3, and 9-4 on the following page
to determine the forces that apply to the
type of platform, size of platform, and
load capacity of your Liftgate.
X= Tension on each sidewall
Y= Compression on each sidewall
Z= Shear on each sidewall
X
77”
BED HEIGHT
Y
Z
Consult vehicle body manufacturer for vehicle body strength data. Make sure the
forces created by the Liftgate are within the limits prescribed by the vehicle body
manufacturer.
WARNING
FIG. 8-1
BODY STRENGTH
NOTE: Maximum operating bed height for body is 56” (Unloaded). Minimum is 44”
(Loaded). Do not install this Liftgate on vehicle bodies equipped with swing
open doors.
!
NOTE: Installer is responsible for ensuring vehicle meets Federal, State, and Local
standards and regulations.
