STEP 14 - REMOVE UPPER SUPPORT FIXTURES
2. Position forklift or hoist to hold
upper support fi xtures as shown
in FIG. 72-1.

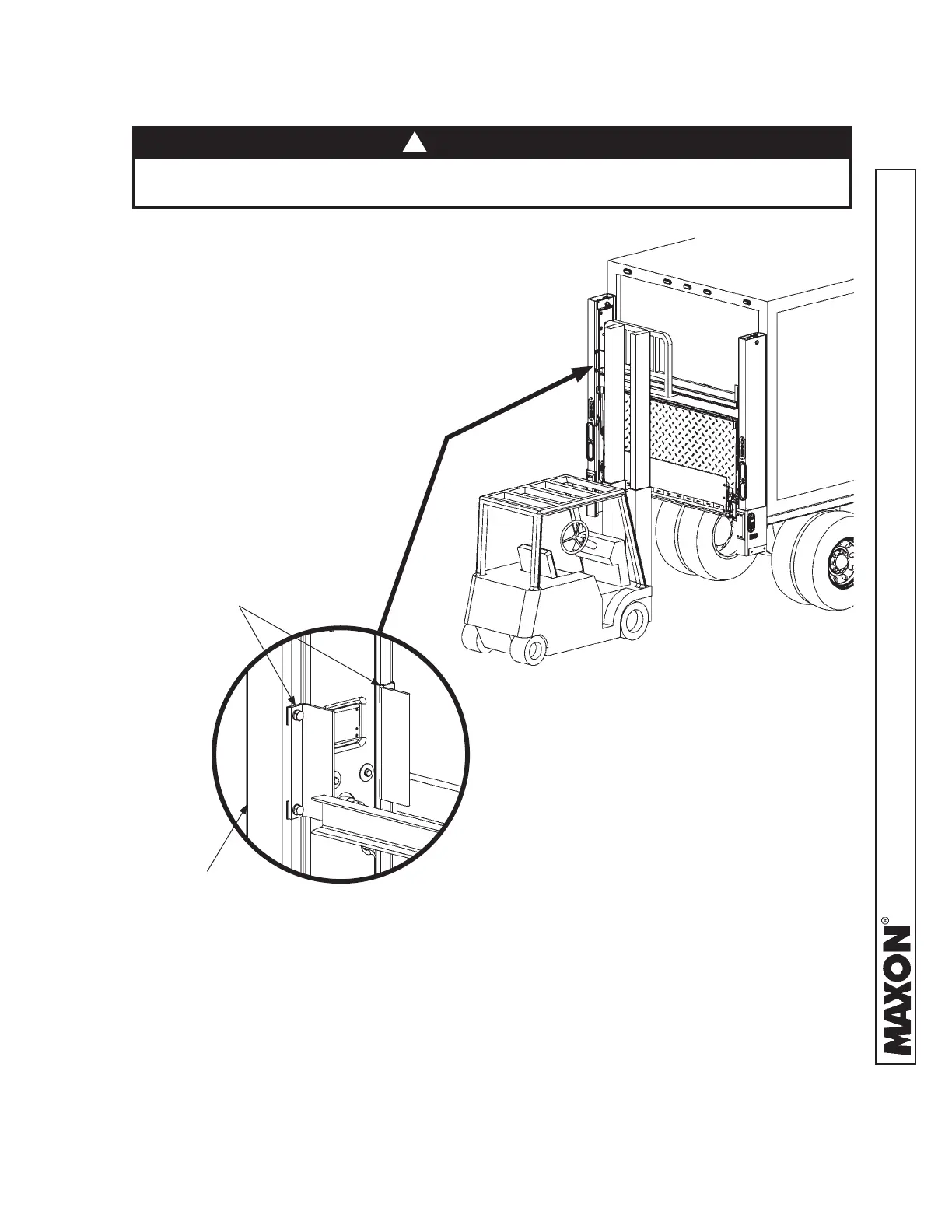

FIG. 72-1
FIG. 72-1A
UPPER SUPPORT
FIXTURES
3. Unbolt the 2 upper support fi x-
tures from the LH column (FIGS.
72-1 and 72-1A). Repeat for RH
column. Use forklift to remove
upper support fi xtures from work
area.
Upper support fi xtures are heavy. To prevent injury to installer and damage to
Liftgate, use forklift or hoist to hold support fi xtures during removal.
CAUTION
!
1. Stow the platform as shown in
FIG. 72-1.
LH COLUMN
