STEP 15 - SECURING COLUMNS - Continued

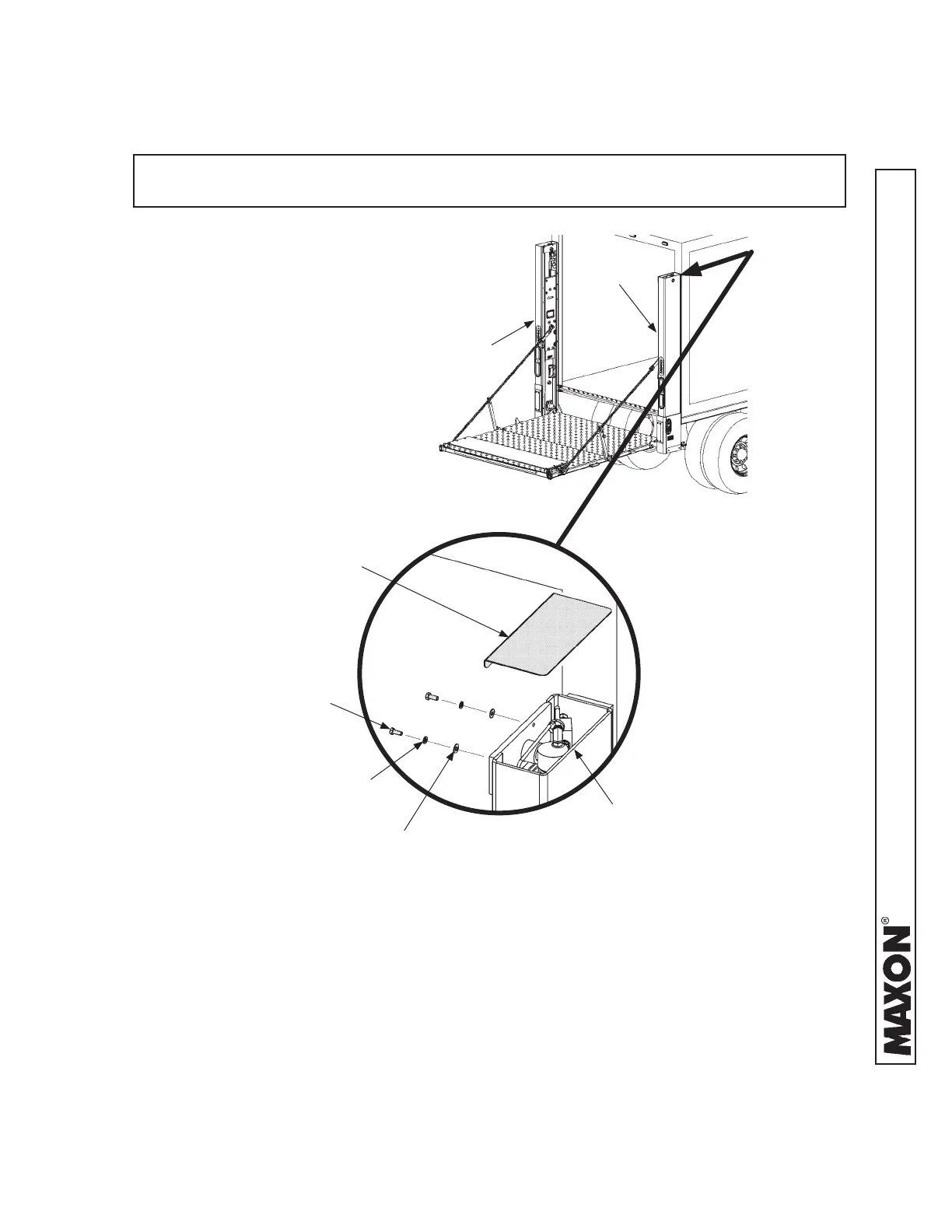

7. Reinstall RH top column cover,
cap screws, lock washers and fl at
washers (FIGS. 76-1 and 76-1A).
Tighten screws, then repeat for LH
top column cover.
FIG. 76-1
LH
COLUMN
RH
COLUMN
REINSTALLING RH COLUMN COVER
FIG. 76-1A
RH COLUMN
SCREW
(4 PLACES)
LOCK WASHER
(4 PLACES)
FLAT WASHER
(4 PLACES)
RH COLUMN
COVER
NOTE: Skip this step if using the METHOD 3 weld-on installation with no mounting
plates.
METHOD 1 & METHOD 2
