2. Check to make sure RH and LH columns are
square and perpendicular to the extension
plate by measuring dimensions at the top and
bottom of the columns, and dimensions A and
B, as shown in FIG. 28-1. Squareness is ac-
ceptable when dimensions A and B are within
1/4” of each other, and top and bottom column
dimensions are as shown in FIG. 28-1.
NOTE: Before welding Liftgate to vehicle frame, check squareness to make sure
columns are perpendicular to extension plate.
RH MOUNTING
PLATE
LH MOUNTING
PLATE

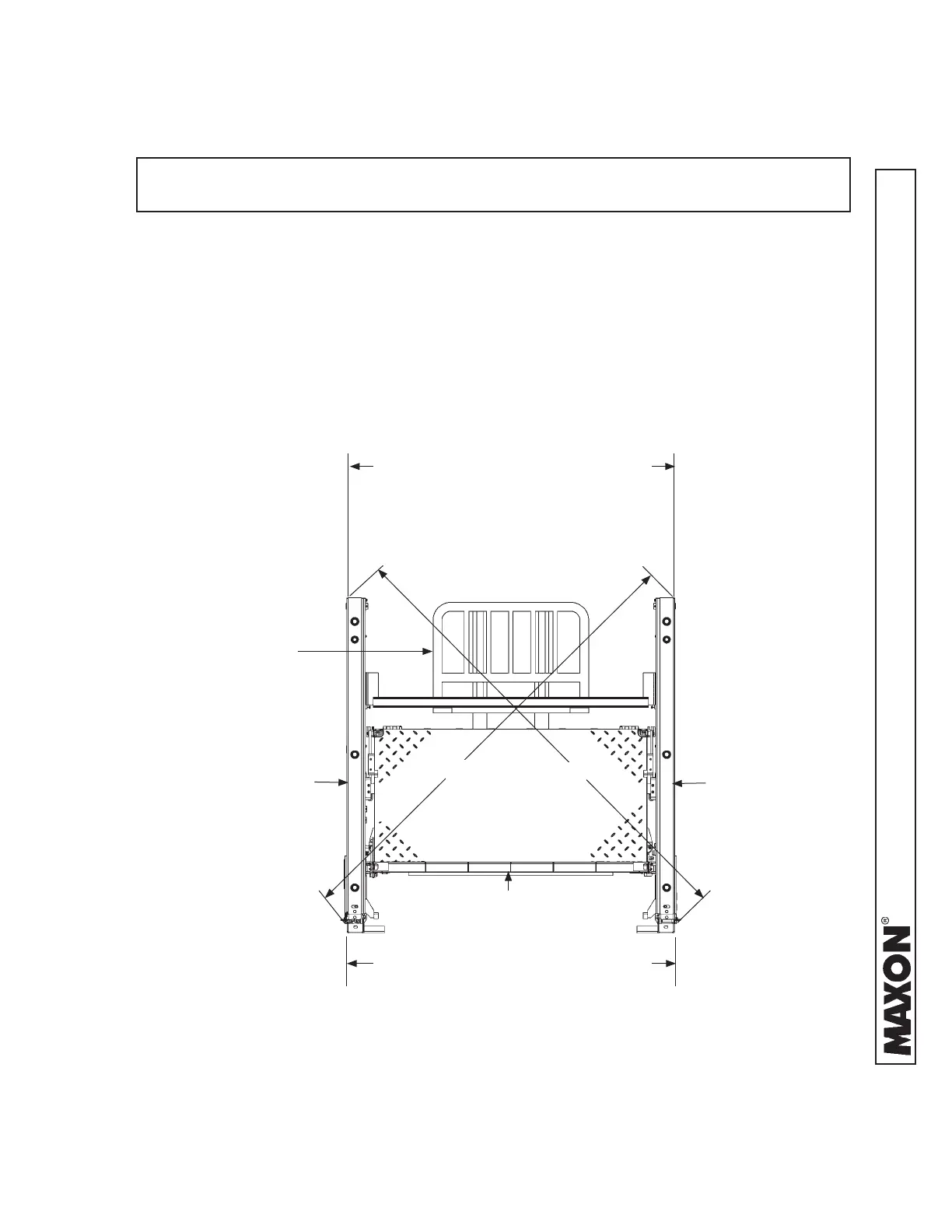

CHECKING IF COLUMNS ARE SQUARE
(REAR OF LIFTGATE SHOWN)
FIG. 28-1
STEP 3 - POSITION LIFTGATE - Continued
FORKLIFT
EXTENSION
PLATE
A
B
METHOD 2 - WELD BOLT-ON LIFTGATE TO BODY - Continued
96-1/8” + 3/16” /- 1/16” (96” WIDE VEH)
101-1/8” + 3/16” /- 1/16” (102” WIDE VEH)
(DIMENSIONS TAKEN FROM
OUTSIDE EDGE OF COLUMNS)
97-1/8” + 3/16” /- 1/16” (96” WIDE VEH)
102-1/8” + 3/16” /- 1/16” (102” WIDE VEH)
(DIMENSIONS TAKEN FROM
OUTSIDE EDGE OF COLUMNS)
