37
11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713

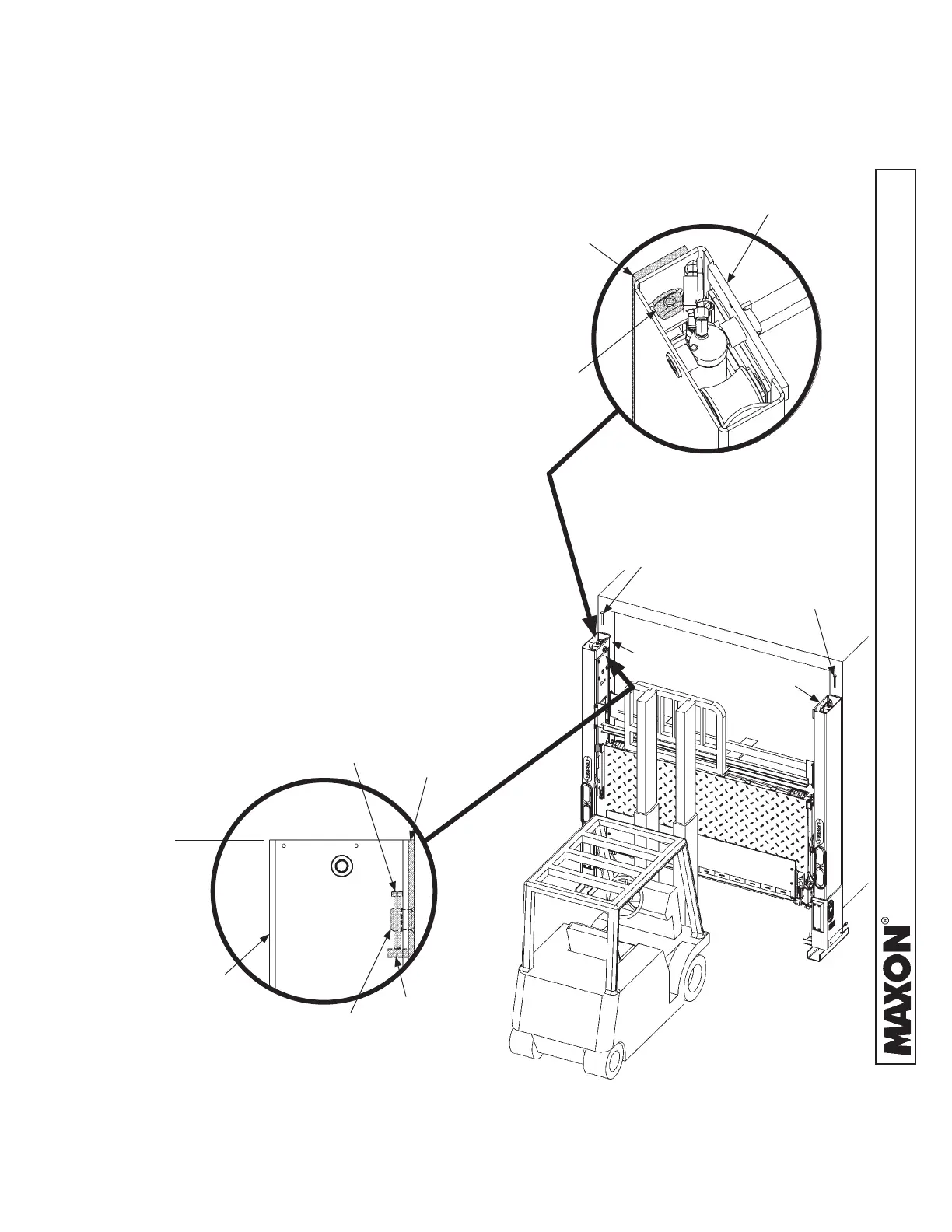

STEP 4 - BOLT LIFTGATE TO VEHICLE - Continued
CAP SCREW
CAP SCREW
LH COLUMN
RH COLUMN
FIG. 37-1
6. Get (2) hanger bolts from parts bag.
Then look down into the top of LH
column (FIGS. 37-1 and 37-1A) and
locate top hanger.
METHOD 1 - PRE-INSTALL MOUNTING PLATES AND EXTENSION
PLATE ON VEHICLE - Continued
TOP HANGER
MOUNTING
PLATE
LH COLUMN
LOCATING LH TOP HANGER
FIG. 37-1A
7. Insert (1) hanger bolt through top hanger
in LH column (FIGS. 37-1 and 37-1B)
and tighten against bolt guide until
mounting plate is fl ush with column.
Repeat for RH column.
8. Remove forklift.
HANGER BOLT,
5/8”-11 X 4-1/2” LG.
TOP HANGER
BOLT GUIDE
MOUNTING
PLATE
LH COLUMN
FLUSH
INSERTING CAP SCREW
INTO LH TOP HANGER
FIG. 37-1B
