56
11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
STEP 8 - RUN HYDRAULIC LINES & ELECTRIC CABLES
- Continued
ALIGN & CONNECT
FIG. 56-2
TWIST COUPLING
RING TO UNLOCK
FIG. 56-4
RUN ELECTRIC CABLES
ALIGN
MARKS
Before connecting, ensure connectors are clean inside. Ensure there is a thin
coating of dielectric grease on face of receptacle, and there is no dielectric
grease on connector contacts.
CAUTION
PULL CONNECTORS
TO DISCONNECT
FIG. 56-6
TWIST TO LOCK
FIG. 56-3
PULL COUPLING RING
TO DISENGAGE
FIG. 56-5
DIELECTRIC GREASE
ON RECEPTACLE
FIG. 56-1
ENSURE THERE IS A THIN COATING
OF DIELECTRIC GREASE
ON THIS SHADED AREA

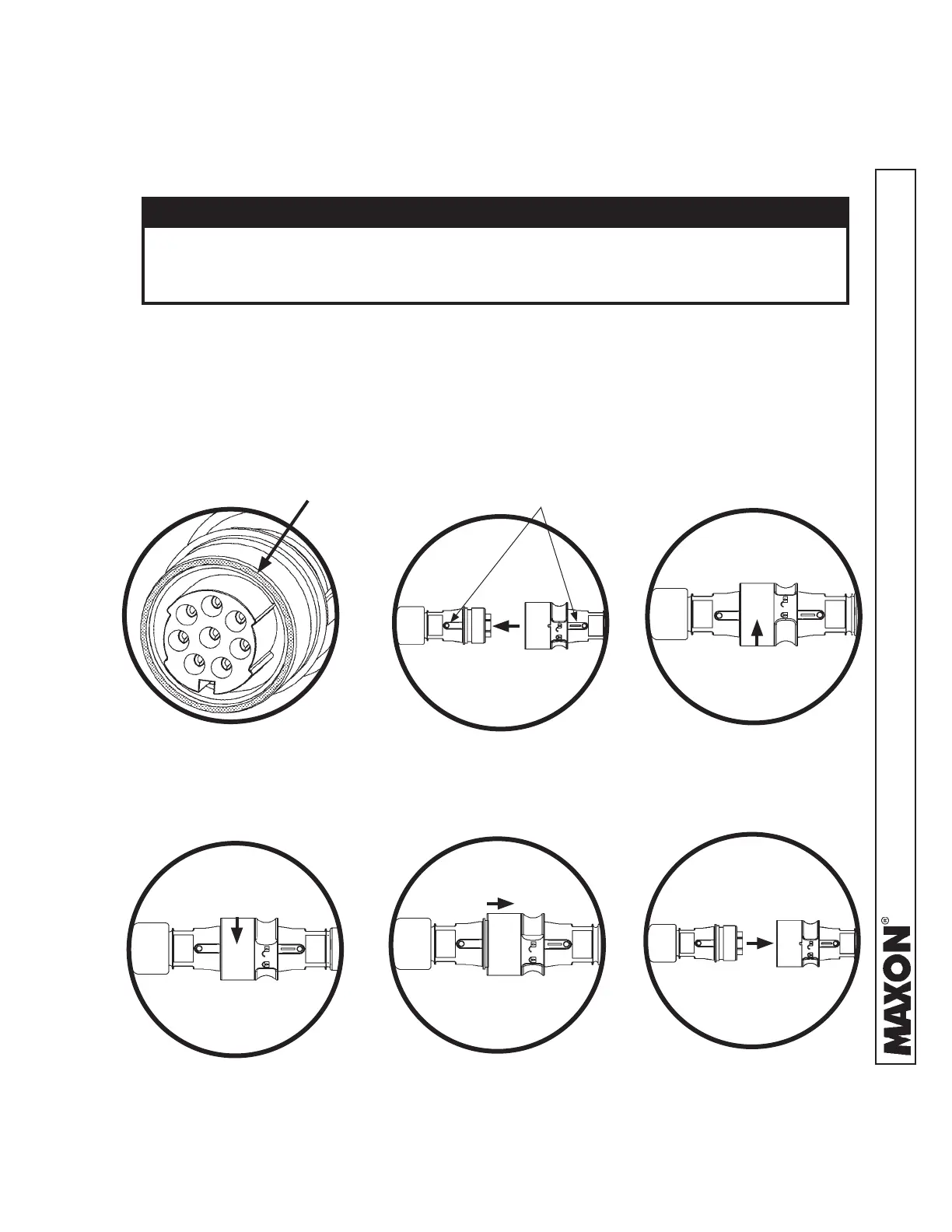

8. Refer to illustrations below for checking for dielectric grease, connecting and disconnect-
ing twist-lock style connectors.
9. Connect twist-lock connector to controller on back of pump enclosure (FIG. 53-1).
To Next Page
