1 From the Main screen, press MENU.
2 From the Menu screen, press
ASSET.
3 From the Assets menu, press
GROUPS.
4 To add, enter the new group code and press
OK.
To edit or erase, either enter the group code and press
OK, or press LIST and scroll through the
groups. When the required group is displayed, press the
MORE key, followed by EDIT or ERASE as required.
If erasing, press
OK on the confirmation screen to proceed with the erase.
5 Type in/edit the description of the group (10 characters max.) and press the OK key.
6 Select 230 Volt or 110 Volt assets by using the up/down Keys. Complete the selection using the
OK key.
7 Press the up/down keys to change to the required Insulation Class. Continue by pressing the
OK key.
8 Operate the up/down keys to scroll through the available tests for the group. The
OK key toggles the test on and
off, a 3 indicating that the test is enabled. Note:- Earth Bond/Continuity tests are available for Class 1 items only.
When all required tests have been included, press the EXIT key.
If a Bond test has been selected an additional screen allows selection of the test current.
9 For each test limit, toggle the up/down keys until the required setting is displayed, then press the OK key to save
the setting.
10 To save the new group to the memory, press the YES key. To cancel press the NO key.

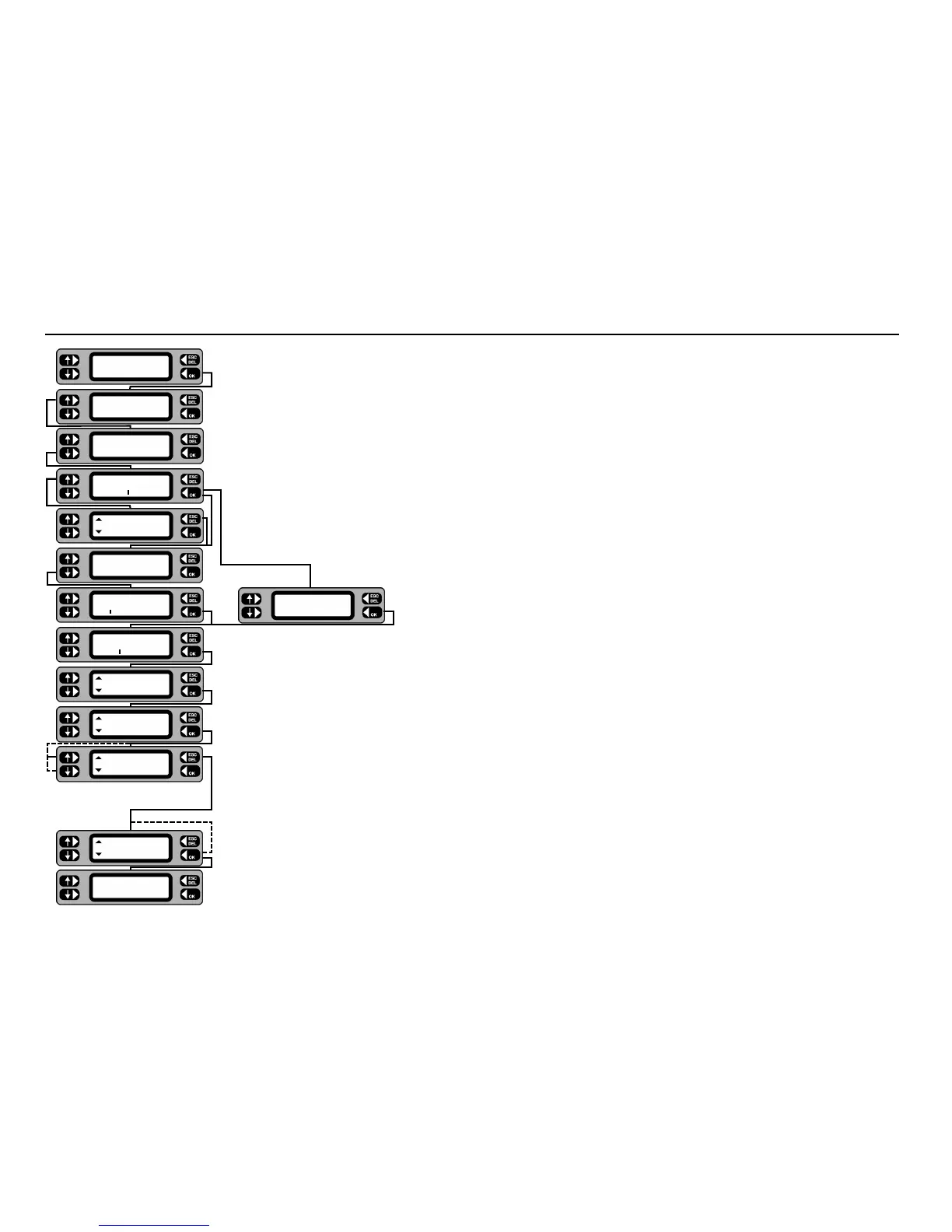

Adding, editing or erasing a Group
