6

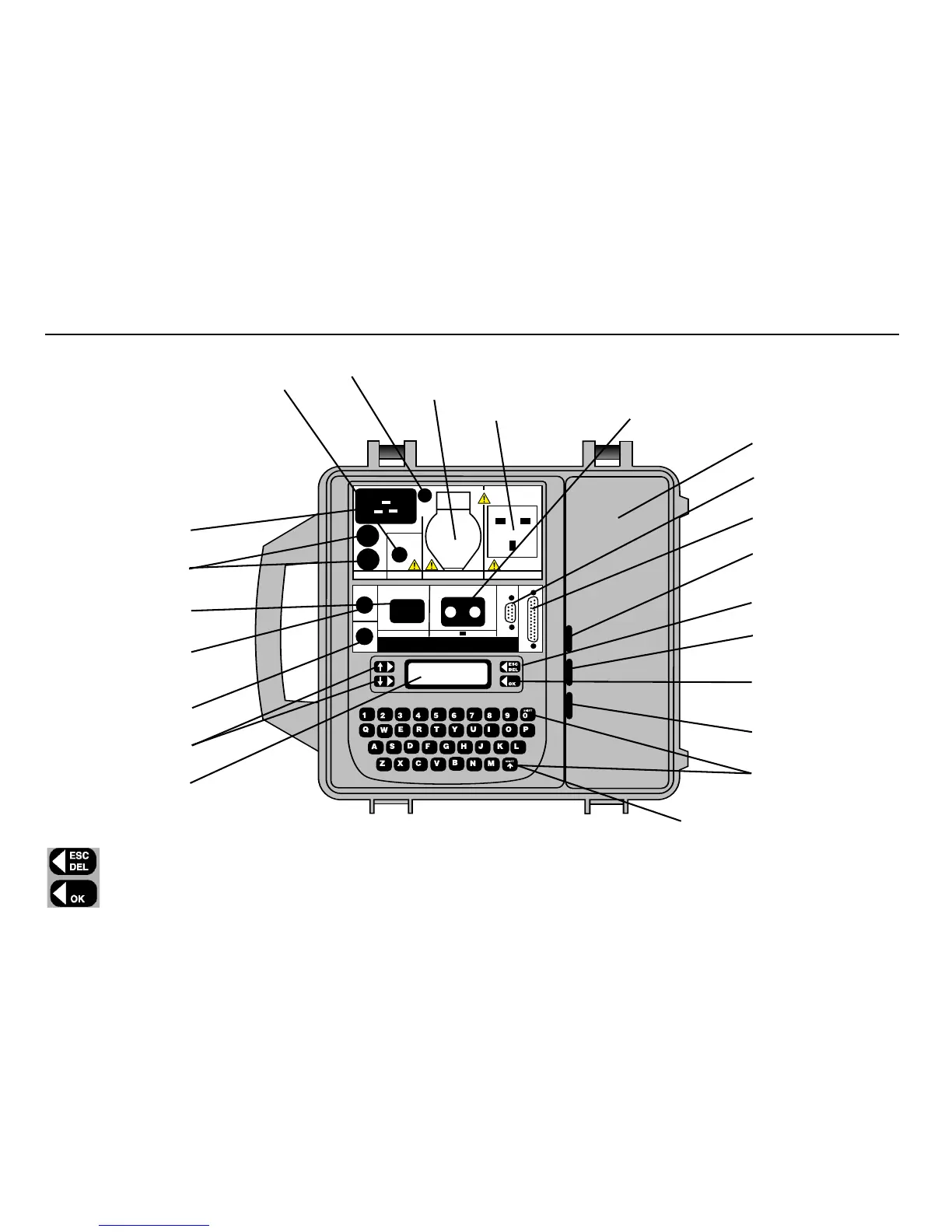

Featur
es and Contr
ols
TESTS
COMMS
CHECK-TEST
MENU
Auxiliary Earthing Point
(see Safety W
arnings)
1
10V Appliance
connection
230V Appliance
connection
Fuse test points
LCD display
Multi-function
Soft keys
Earth
Continuity connection
(200mA)
Earth Bond Connection
Lead test Connection
13A
protection fuses
Mains power Connection
230V or 1
10V
Flash test socket
(Class 2 equipment)
(P
A
T4 DVF only)
Lead/Accessory
Storage
Barcode scanner/ PC
connection
Parallel
PrinterConnection
FS2
ESC/DEL
key and
Multi-function soft key
FS4
OK key and
Multi-Function Soft key
SP
ACE=SHIFT
+ 0
Flash T
est
Operation
FS1
Multi Function keys.
ESCape back to previous screen or used to DELete typed text.
OK when there is no displayed function.
5
7
Table of Contents
Default Chapter
3
Table of Contents
3
Safety
4
General Description
4
Fuses
5
Features and Controls
6
Setting up
7
Contrast Adjustment
7
Reset to Default Settings
7
Shortcut to Comms Upload (from PC)
7
Results Print-Out after Test
7
Logging in to the Unit
8
User Names and PIN Numbers
9
Setup Manual/Autopass Testing/Fail Buzzer
10
Setup Test Times
11
Setting the Clock
12
Setting up the Test Company Title
13
Barcode Scanner
14
Clients and Locations
15
Selecting an Existing Client and Location
16
Adding or Editing a Client
17
Adding or Editing a Location
18
Erasing a Client or Location
19
Asset Test Groups
20
Adding, Editing or Erasing a Group
22
Assets
23
Adding an Asset
24
Editing or Erasing an Asset
25
Locate an Asset
26
Testing an Asset
28
Auto Restart to Main Screen
29
Repair Codes
29
Historical Data
30
Quick-Check
31
Erase Memory
32
Printing Reports and Results
33
Download/Upload Data
34
Download to a Computer
35
Upload from a Computer
36
Description of Tests
37
Visual Inspection List
37
Earth Bond Test
38
Earth Continuity Test
38
Circuit Test (Pre-Test)
39
Insulation Test
39
Operation Test
39
Earth Leakage (Touch Current) Test
40
Fuse Test
40
Extension Lead Testing
40
Flash Test (PAT4 DVF Only)
41
Demonstration Data
42
Specification
45
Accessories
48
Repair and Warranty
49
4
