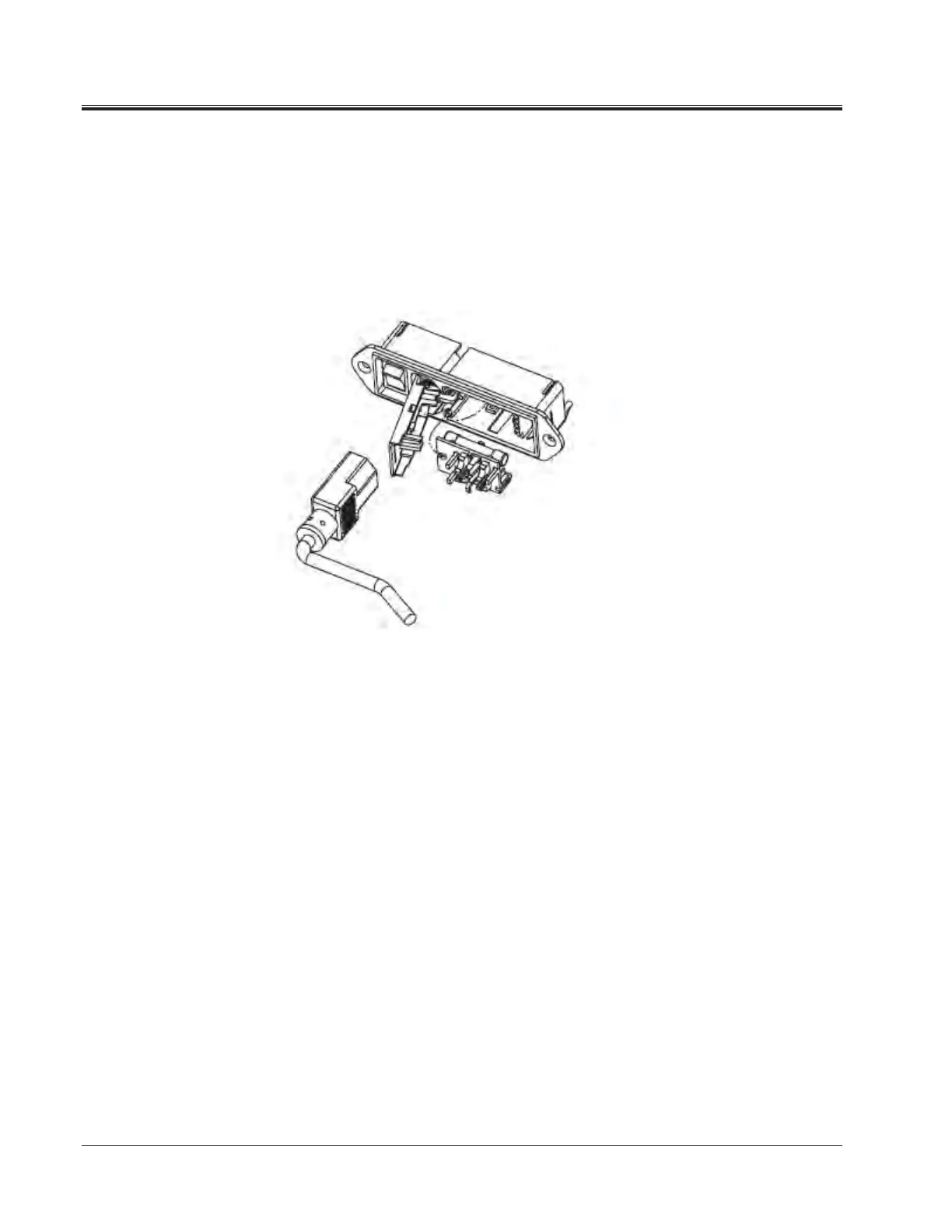

5. Install one (1) AG fuse or two (2) metric fuses*.

6. Replace fuse holder into housing.

7. Swing and snap door back in place.

*Install fuses on one side only, do not install both AG and metric fuses at the

same time
