M
AVTMTTR310 Rev 8 May 2016
34
(a)
IEC VECTOR GROUP CODING
Dyn1
PHASE DISPLACEMENT
30
LAG
(b)
IEC VECTOR GROUP CODING
Dyn5
PHASE DISPLACEMENT
150
LAG
(c)
IEC VECTOR GROUP CODING
Dyn1
PHASE DISPLACEMENT
30
LAG
(d)
IEC VECTOR GROUP CODING
YNd7
PHASE DISPLACEMENT
210
LAG

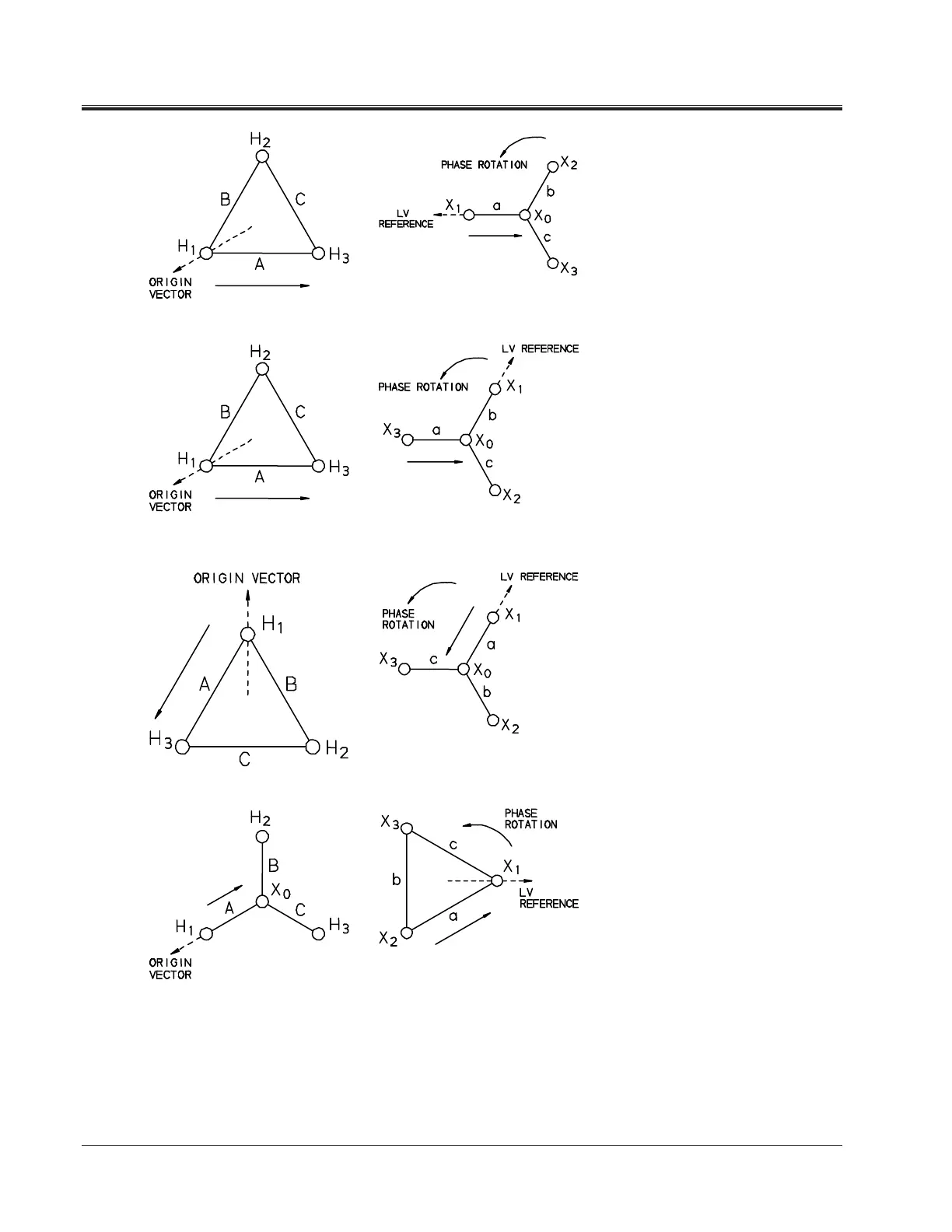

Figure 5-10. Winding Connections and Phase Relationship
