Megmeet MV600 Series User Manual

12

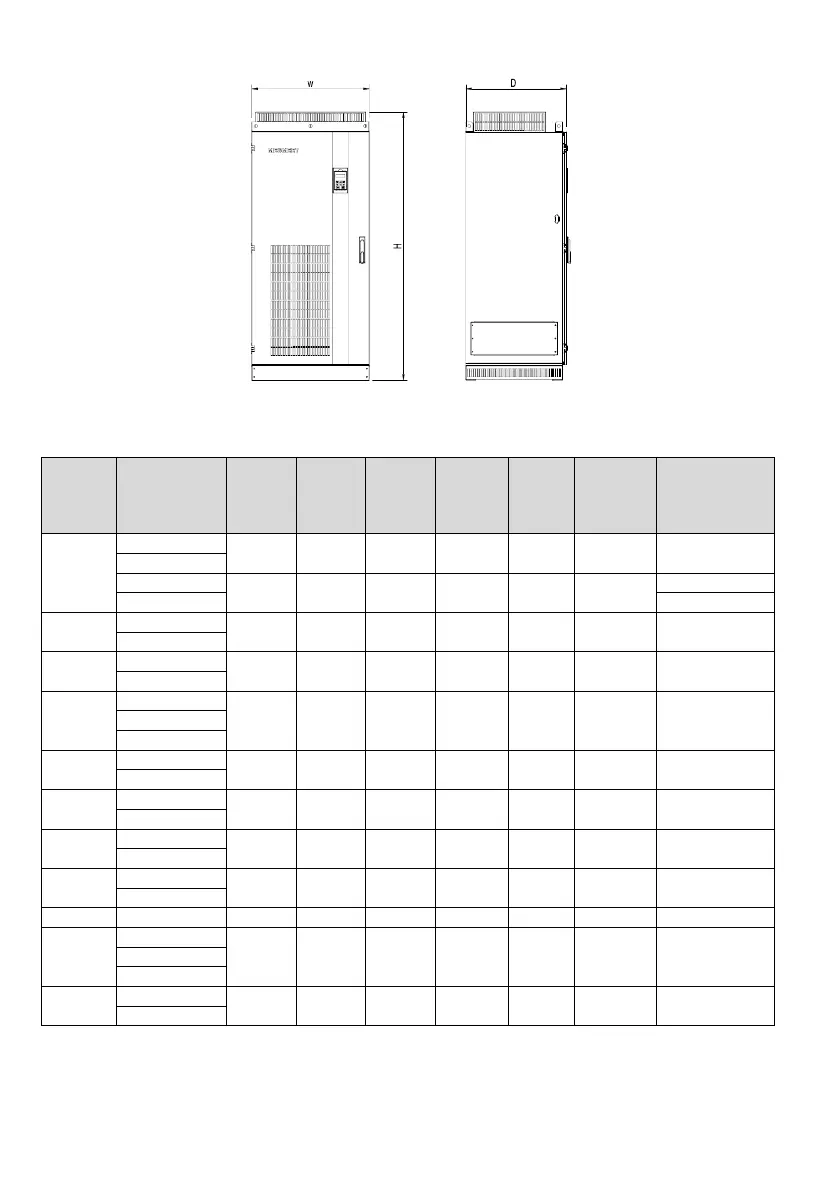

Fig. 1-5 Outline, mounting dimensions for products of 355kW-400kW
Table1-3 Outline, mounting dimensions and gross weight
Enclosure
model
Drive model
A（mm） B（mm） H（mm） W（mm） D（mm）
Diameter of
mounting
aperture
(mm)
Gross weight
±0.5 (kg)
R2
MV600G-4T0.75
115 218 229 126 174 5.5 4
MV600G-4T1.5
MV600G-4T2.2
115 218 229 126 174 5.5
4
MV600G-4T3.7 4
R3
MV600G-4T5.5
137 236 249 155 198 5.5 4
MV600G-4T7.5
R4
MV600G-4T11
186 314.5 330 209 206 6.5 9
MV600G-4T15
R5
MV600G-4T18.5
220 437.5 451.5 284.5 213 6.5 19 MV600G-4T22
MV600G-4T30
R6
MV600G-4T37
270 549 570 335 267 7 41
MV600G-4T45
R7
MV600G-4T55
270 579 600 335 292 7 49
MV600G-4T75
R8
MV600G-4T90
350 705 726.5 452 328.5 12 87
MV600G-4T110
R9
MV600G-4T132
350 827.5 849.5 500 350 12 154
MV600G-4T160
R9P MV600G-4T200 370 827.5 849.5 530 350 12 154
R10
MV600G-4T220
500 932 956 700 361.5 14 216 MV600G-4T280
MV600G-4T315
R11
MV600G-4T355
- - 1624 710 610 - 250
MV600G-4T400
