0: Speed set value
This is the only one detection mode under the V/F mode.
1: Speed detection value
During the deceleration, when it decelerates to the stop DWELL frequency set by P08.10, continues to
decelerate after the retention time set by P08.11 for keeping the frequency.

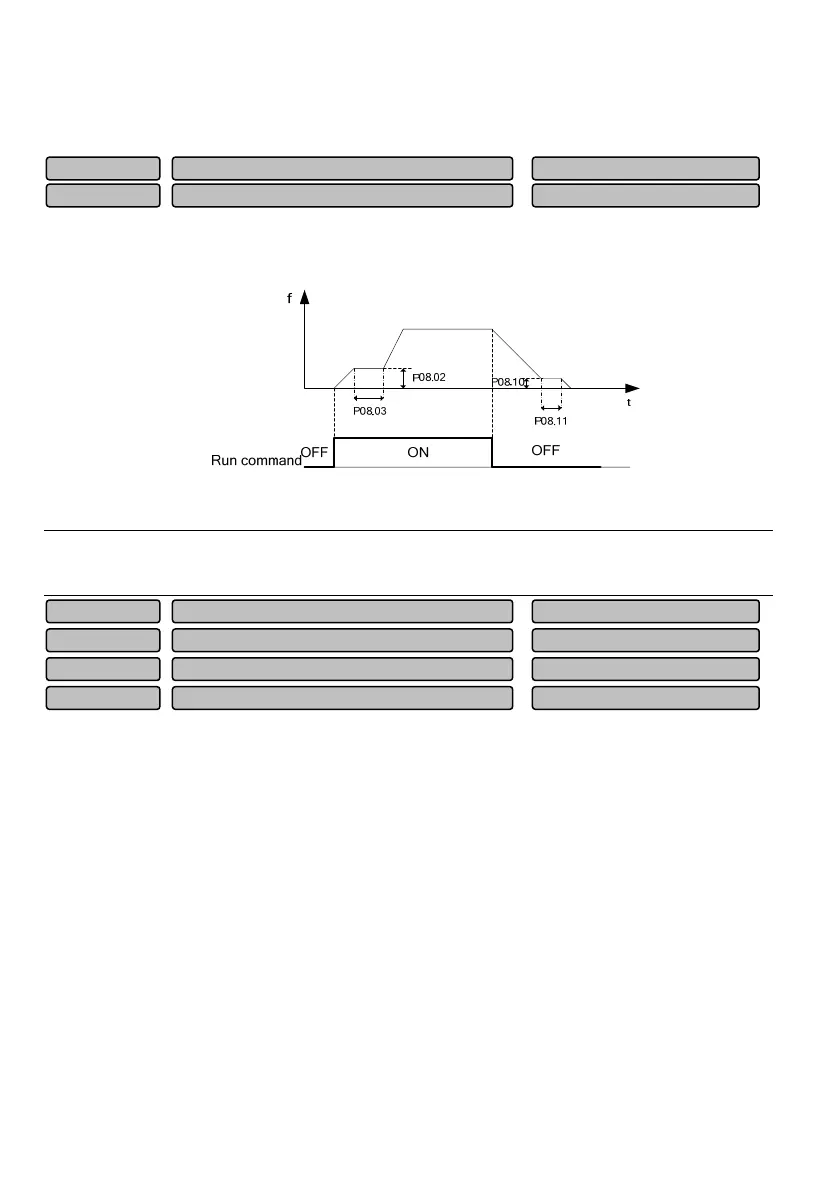

Fig. 6-28 Sequence diagram for DWELL function upon startup/stop
 Note
The stop speed delay time is invalid for the V/F control mode and the stop speed detection mode is valid
only when it is the speed detection value (P08.09=1).
Begin to inject the initial frequency of the stop DC braking current during the stop process set by P08.12.
P08.13 waiting time for the stop braking: The time interval from the moment when the running frequency
reaches the initial frequency for braking (P08.12) till the DC braking is injected during decelerating to
stop.
P08.14 sets the volume of the stop DC braking current, which is indicated in a percentage of the rated
current of the drive.
P08.15 sets the action time for the stop DC braking.
Stop DC braking time
0.00~30.00s
(
0.00s
)
P08.15
Stop DC braking current
0.0~100.0 %
(
0.0%
)
P08.14
Waiting time for stop DC braking
0.00~10.00s
(
0.00s
)
P08.13
Initial frequency for stop DC braking
0.00~60.00Hz
(
0.00Hz
)
P08.12
Stop (dwell) frequency retention time
0.00~10.00s
(
0.00s
)
P08.11
Stop (dwell) frequency
0.00~150.00Hz
(
02.00Hz
)
P08.10
