Meler Micron+ Series - Pump Assembly Spare Parts

FOCKE MELER GLUING SOLUTIONS
9-6
SPARE PARTS LIST
2
3
7
1
4
4
6
5

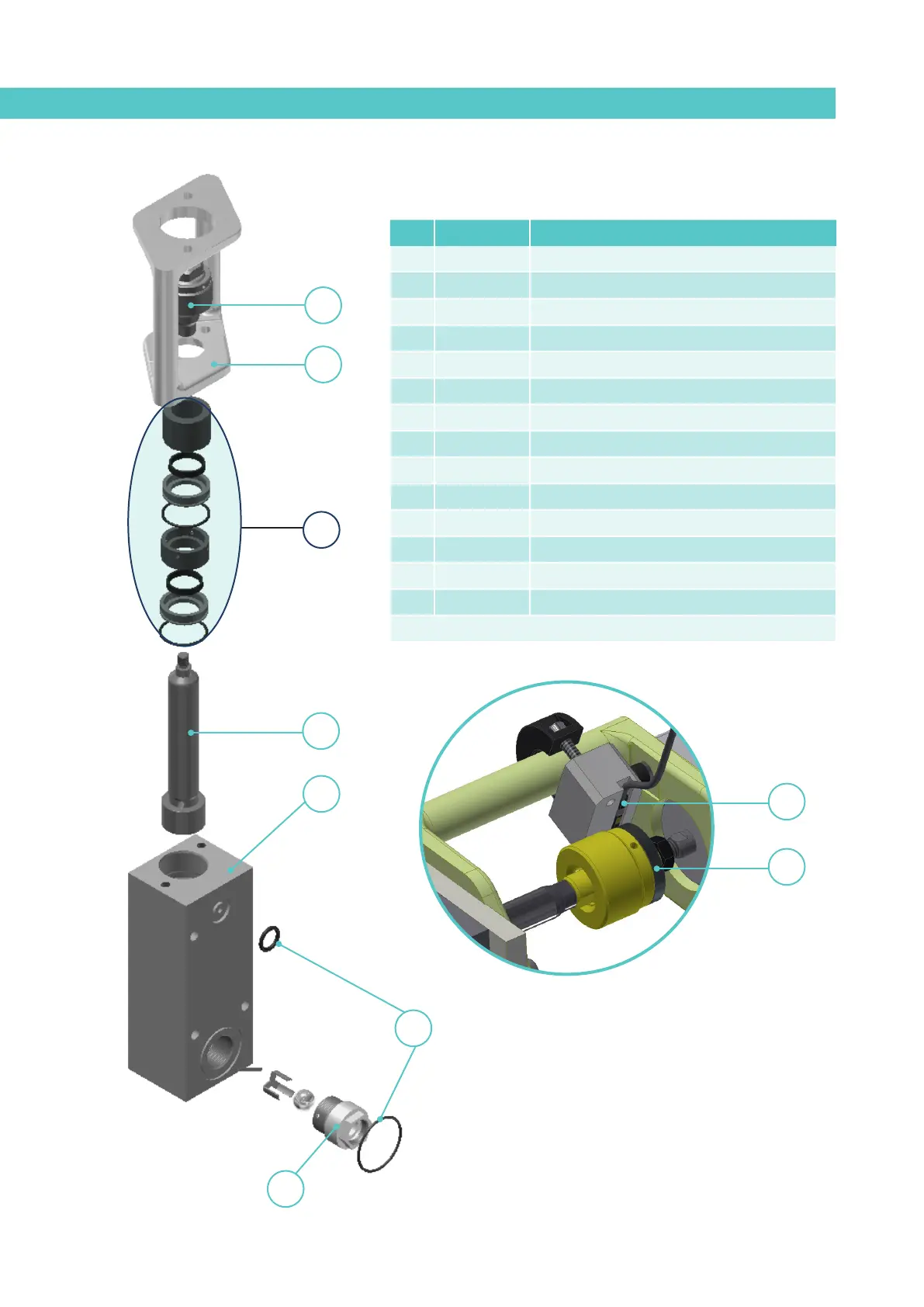

C. PUMP ASSEMBLY
Nº Ref. Description
1 150113550
7cc pump body with braces and fittings
1 150113560
19cc pump body with braces and fittings
2 10100011
Pump shaft 7cc
2 150023080
Pump shaft 19cc
3 150113570
Tank-pump-distributor seating O-ring kit
4 150113530
7cc pump guide bushing kit
4 150113540
19cc pump guide bushing kit
5 150020590
Short ball and socket joint for pump shaft activator
6 150113580
Pump holding support 7cc
6 150113590
Pump holding support 19cc
7 150024970
Inlet valve fitting micron pump 7cc
7 150024980
Inlet valve fitting micron pump 19cc
8 150127550
Cylinder magnetic LED sensor (*)
9 150127560
Magnetic flow sensor ring (*)
(*) optional
9
8
