Meler Micron+ Series - PNEUMATIC UNIT ASSEMBLY 19 Cc

FOCKE MELER GLUING SOLUTIONS
9-8
SPARE PARTS LIST

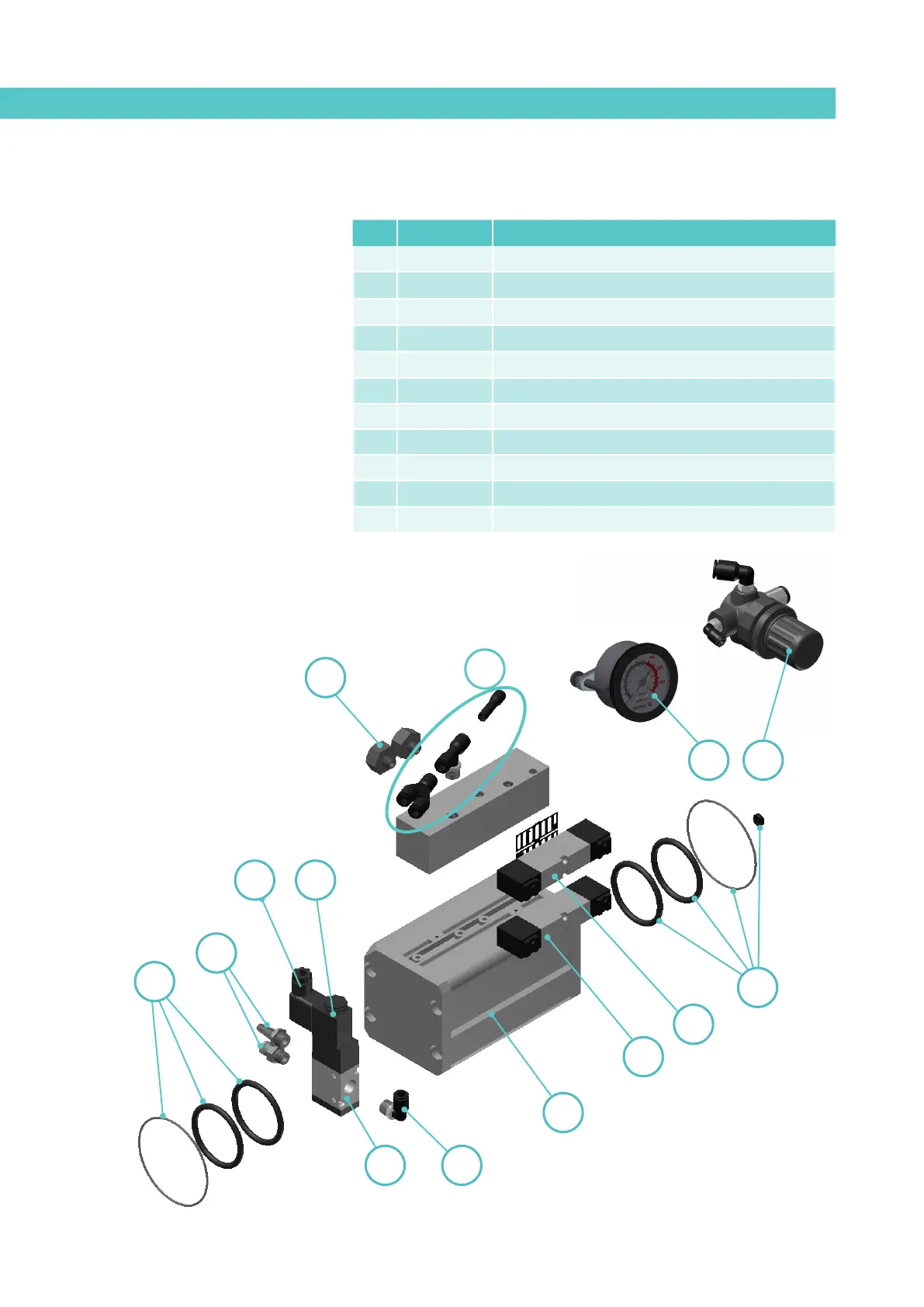

D. PNEUMATIC UNIT ASSEMBLY 19cc
Nº Ref. Description
1 150113620 Pneumatic unit assembly 19cc with filter
2 150114480 Pressure gauge
3 10110031 Pressure regulator
4 150113850 Connector kit for 19cc pump unit without VP
5 150123660 Solenoid coil 19cc (24V)
6 150060040 Solenoid valve connector DIN 43650B
7 150123670 Intake solenoid valve (24V)
8 150020490 Differential valve with o-ring
9 150020500 Control valve with o-ring
10 150023330 Exhaust silencer
11 150023300 O-ring kit of pneumatic cylinder 19cc
1
11
11
10
6 5
4
4
4
7
9
8
3
2
