FOCKE MELER GLUING SOLUTIONS INSTALLATION
3-12
Connecting zone inhibition
Attention: it is necessary that all inhibition imput cables are shielded.
In the melting equipment, the shield must be connected outside, in the
equipment chassis or in the connector prepared for this purpose in
some models.
Warning: Risk of electric shock. Carelessness may cause injury or death.

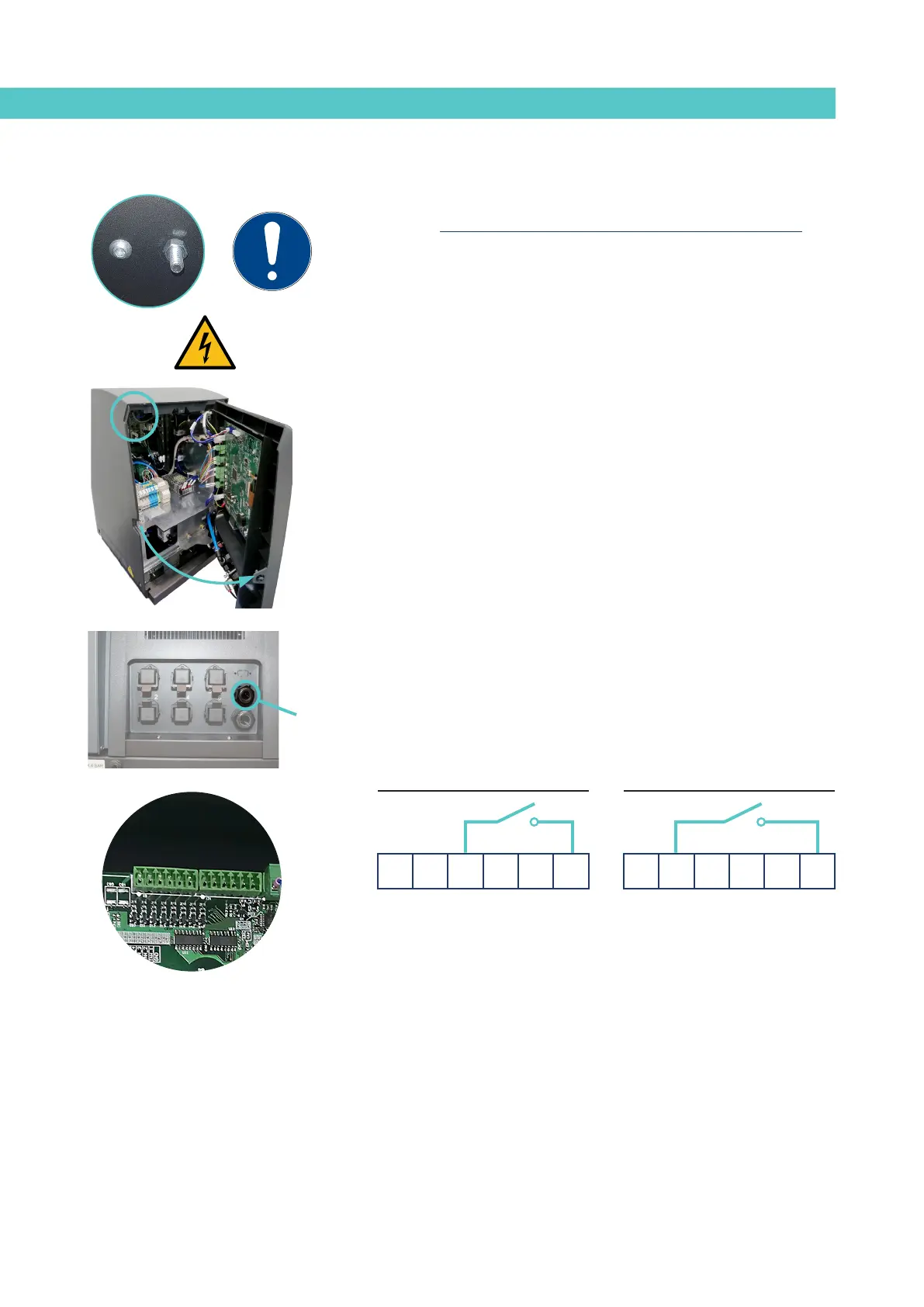

1. Disconnect the unit’s power.
2. Open the front door of the electric cabinet by giving the fastening screw
a 1/4 turn.
3. Run the signal cable (max. Ø14mm) through the bushing at the rear of
the unit and attach it to the interior fitting, taking care to ensure that
the cable reaches the connectors (X21 / X9) in the temperature control
board.
4. Remove the connectors from the board and connect the cable wires to
their corresponding terminals. To activate it, all disabling signals must
be switched with the GND pin.
5. Reconnect the connectors to the board.
6. Check that the cable is correctly connected and that its passage
through the electric cabinet presents no risk of jamming, being cut or
any other accidental damage.
7. To configure the various inhibition groups and assign them the
corresponding signal, see point ‘4 Use / Heating Menu / Inhibitions’’.
X9 X21
+24 8 7 6 5 GND +24 4 3 2 1 GND
X
é é é é é
X
é é é é é
X21
X9
