Meler Micron+ Series - Flowmeter Operation and Calibration

MA-5162-ENG MICRON
+
PISTON ADHESIVE MELTERMELTER OPERATION
4-27
Flowmeter
Optionally, the unit can come equipped with an adhesive flow control system
with the following functions:
• Immediate measurement of adhesive consumption by time and by product
(<5% error).
• Configuration of 5 products with editable names.
• Programmable alarm for consumption that exceeds programmed limits.
• Target consumption by product.
• Automatic learning of target consumption by product.
• Automatic adjustment based on the pattern being used and the working
speed.
• Automatic adjustment of the system when the working pressure changes.
• Automatic or manual system calibration.
• Automatic calculation of the adhesive density.
• Flow adjustment by manually entering a value into the correction field.
• Selector of programmed products from the start screen.
• Total statistics and statistics for each product.
System calibration
This function can be activated or disabled via the ‘2. Additional set-up / 2.2
Additional settings’ screen. To calibrate the system, press the right arrow in
the Flowmeter option.
Calibration must be done when:
• The unit is programmed for its first use.
• The type of adhesive is changed.
• The working temperature is changed.
• Accuracy losses are noticed.
• Regularly (3-4 weeks), for jobs with low adhesive consumption.
Important: During calibration, the unit must be at the working pressure and
temperature.
1. Enter the unit’s hydraulic pressure.
2. Press ‘Play’ in ‘Calibration’ and the unit will automatically do the
calculations. Depending on the programmed pressure and temperature
and the adhesive type, the time could be up to a maximum of 1 hour.
3. When the calculation is completed, it will show ‘Ready’ next to the ‘Play’
button. The ‘Adjustment’ section will show the calculated value. The value
will be between 30 and 1000, depending on the viscosity of the adhesive,
the temperature, and the working pressure.
4. Press ‘Save’ once the process is completed.
MICRON+ PISTÓN
HMI : S02001101 v1.1.2
TC : S02200100 v1.0.84
IO FM : XXXXXXXXX vx.x.x
6

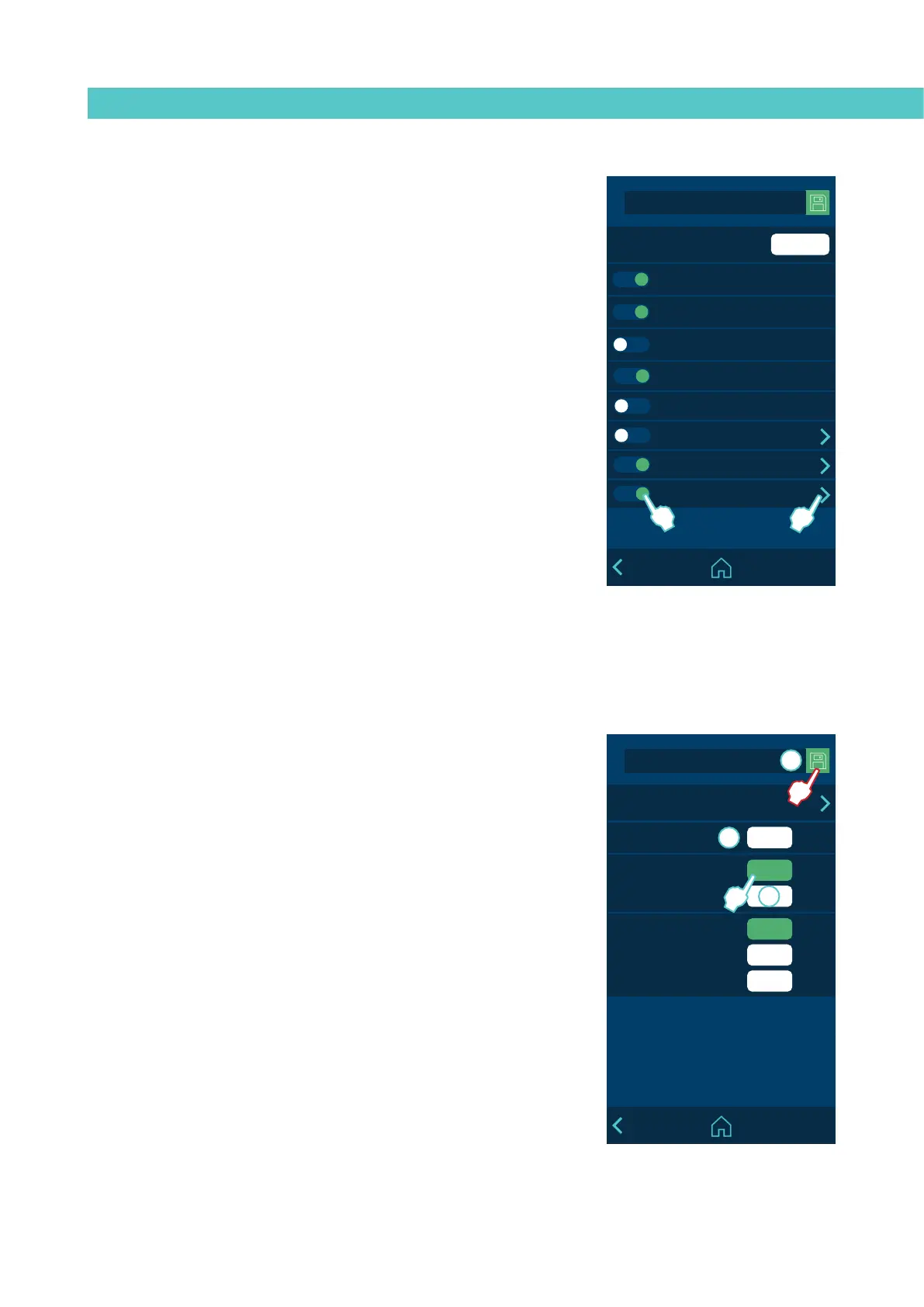

2.2 Extra Settings
