Installation
Rev 2.2
31Mellanox Technologies

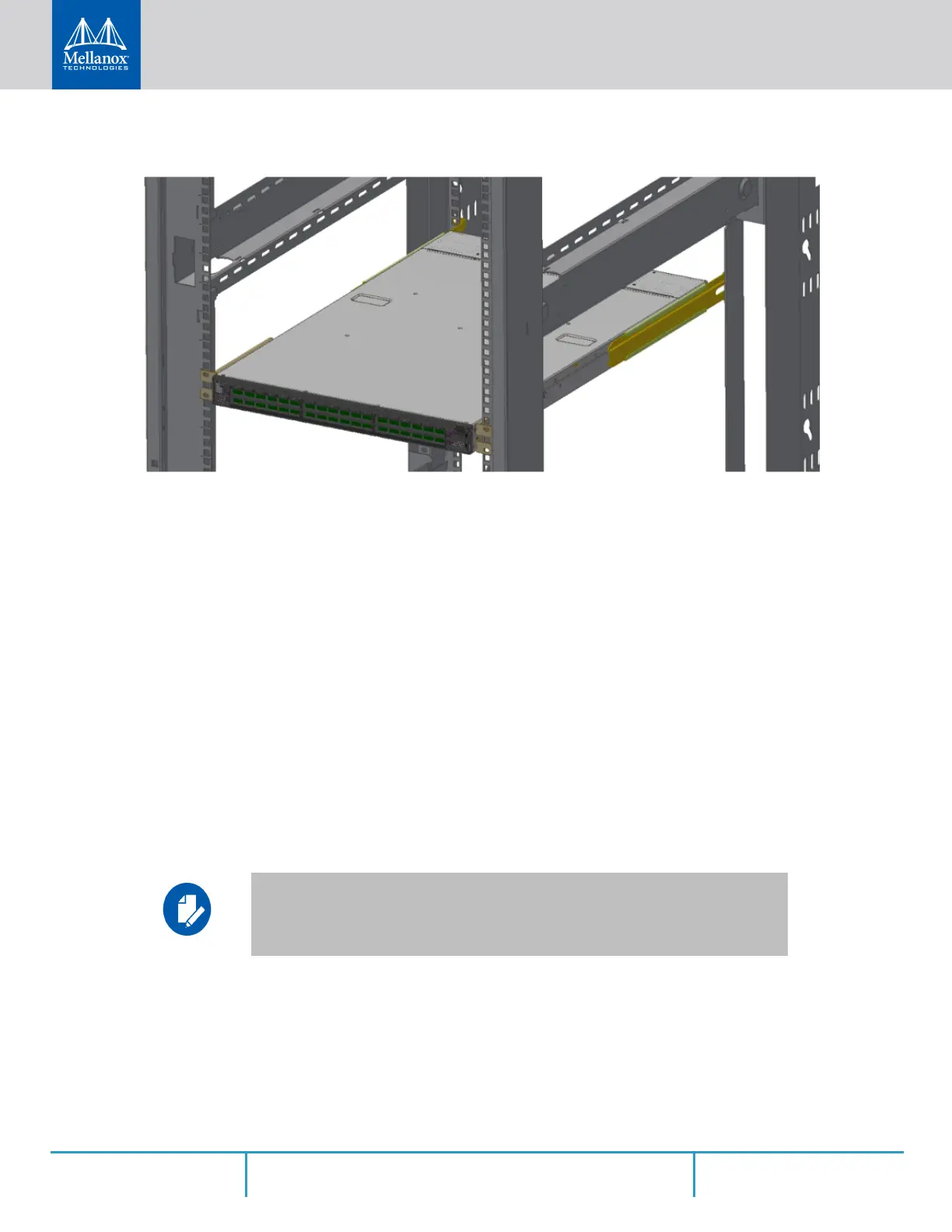

Figure 18: Sliding the Blades in the Rails
Step 7. Secure the system in the rack by tightening the 8 screws inserted in Step 5 and Step 6 with a
torque of 4.5±0.5 Nm.
2.5.1.1 Removing the System from the Rack
To remove a unit from the rack:
Step 1. Turn off the system and disconnect it from peripherals and from the electrical outlet.
While your installation partner is supporting the system’s weight:
Step 2. Loosen the screws attaching the brackets to the rack. Do not remove them yet.
Step 3. Loosen the screws attaching the blades to the rack, and pull the blades towards you, while
your partner is holding the system.
Step 4. Extract the loosened screws from Step 2 and dismount the system from the rack.
Step 5. Remove the rails and brackets from the chassis by unscrewing 8 screws.
2.5.2 Telescopic Rail Kit for SN2700
There are two installation kit options:
• Standard depth systems should be mounted using the standard rail kit.
The Telescopic rail kit is not included in the system’s package, and can be purchased
separately.
