Mellanox Technologies Spectrum SN2010 User Manual

Installation
Rev 2.2
51Mellanox Technologies

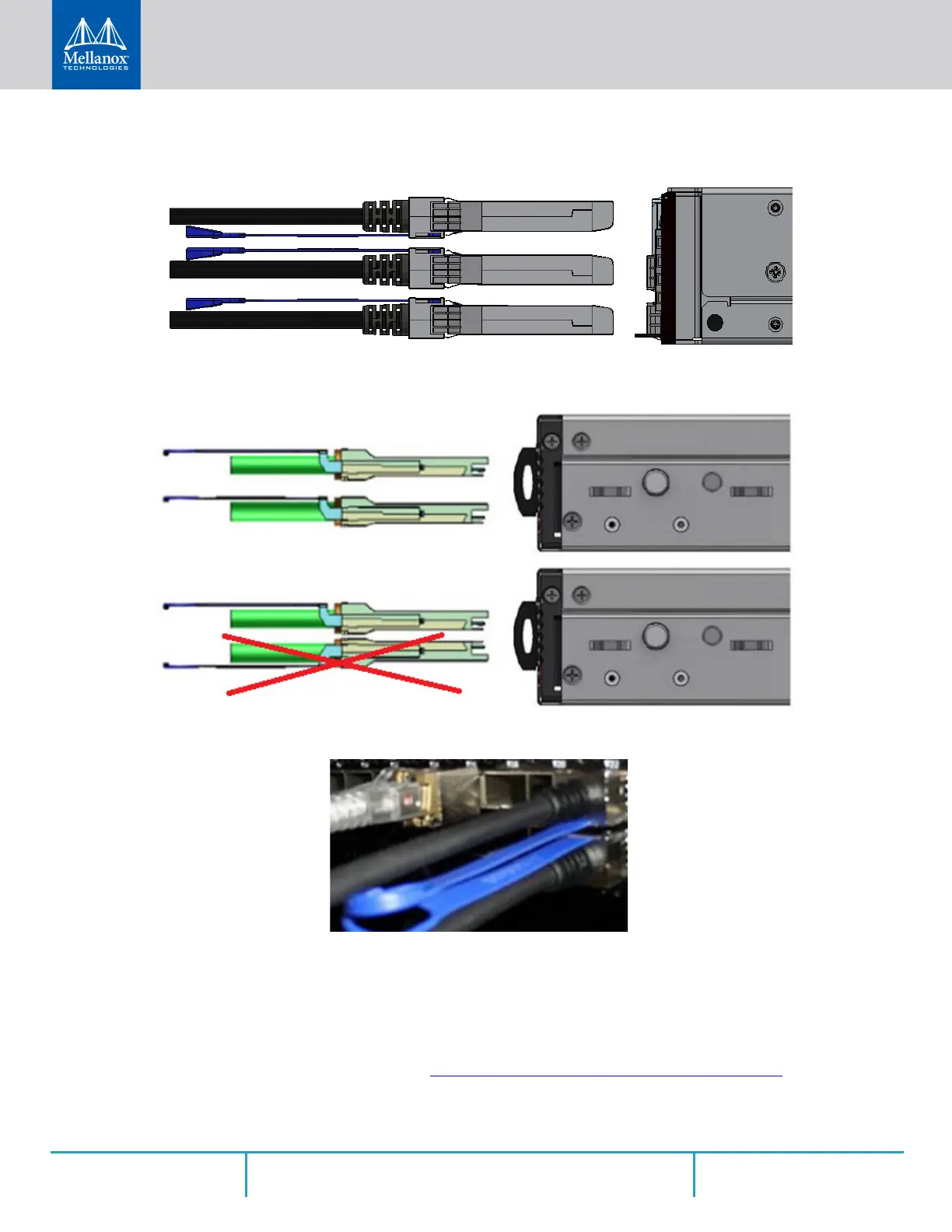

Figure 45: SN2010 SFP Cable Orientation
Figure 46: SN2740 Cable Orientation
Figure 47: SN2410 Cable Orientation
2.6.1 Splitter (Breakout) Cables and Adapters
A 100GbE port can be split to two 50GbE ports, or to four (or less) 25GbE ports, using a Mella-
nox splitter cable.
Splitting a 100GbE QSFP28 port to 4 separate 25GbE ports (using a splitter cable) disables
(unmaps) the 100GbE port below it. See
Figure 49,“SN2700 and SN2740 Splitting Options”.
