To remove a fan unit:
Step 1. Grasping the handle with your right hand, push the latch release with your thumb while
pulling the handle outward. As the fan unit unseats, the fan unit status LEDs will turn off.
Step 2. Remove the fan unit.
To insert a fan unit:
Step 1. Make sure the mating connector of the new unit is free of any dirt and/or obstacles.
Step 2. Insert the fan unit by sliding it into the opening until slight resistance is felt. Continue press-
ing the fan unit until it seats completely.

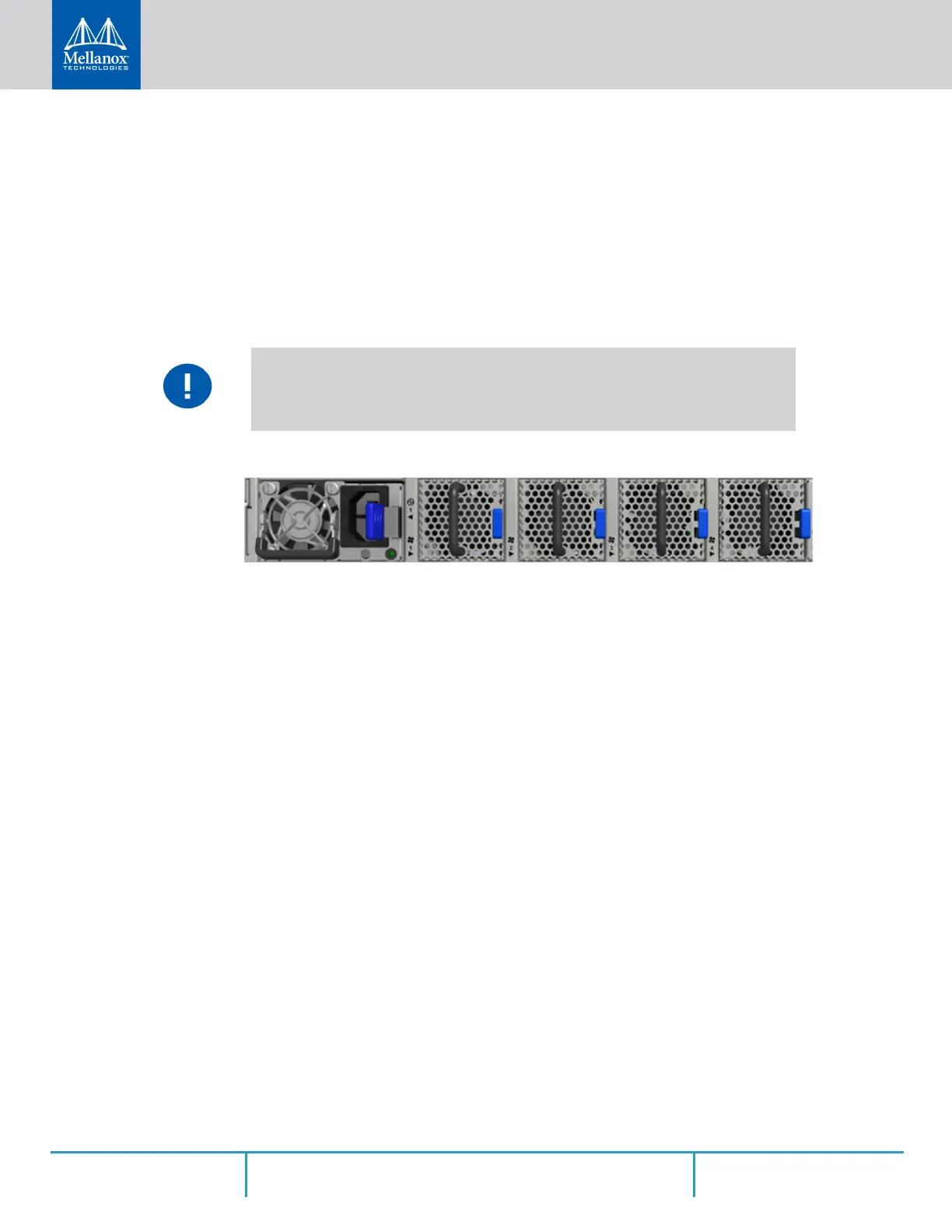

Figure 59: Fan Module Latches
The green Fan Status LED should light. If not, extract the fan unit and reinsert it. After
two unsuccessful attempts to install the fan unit, power off the
system before attempt-
ing any system debug.
