Installation
Rev 2.2
48Mellanox Technologies

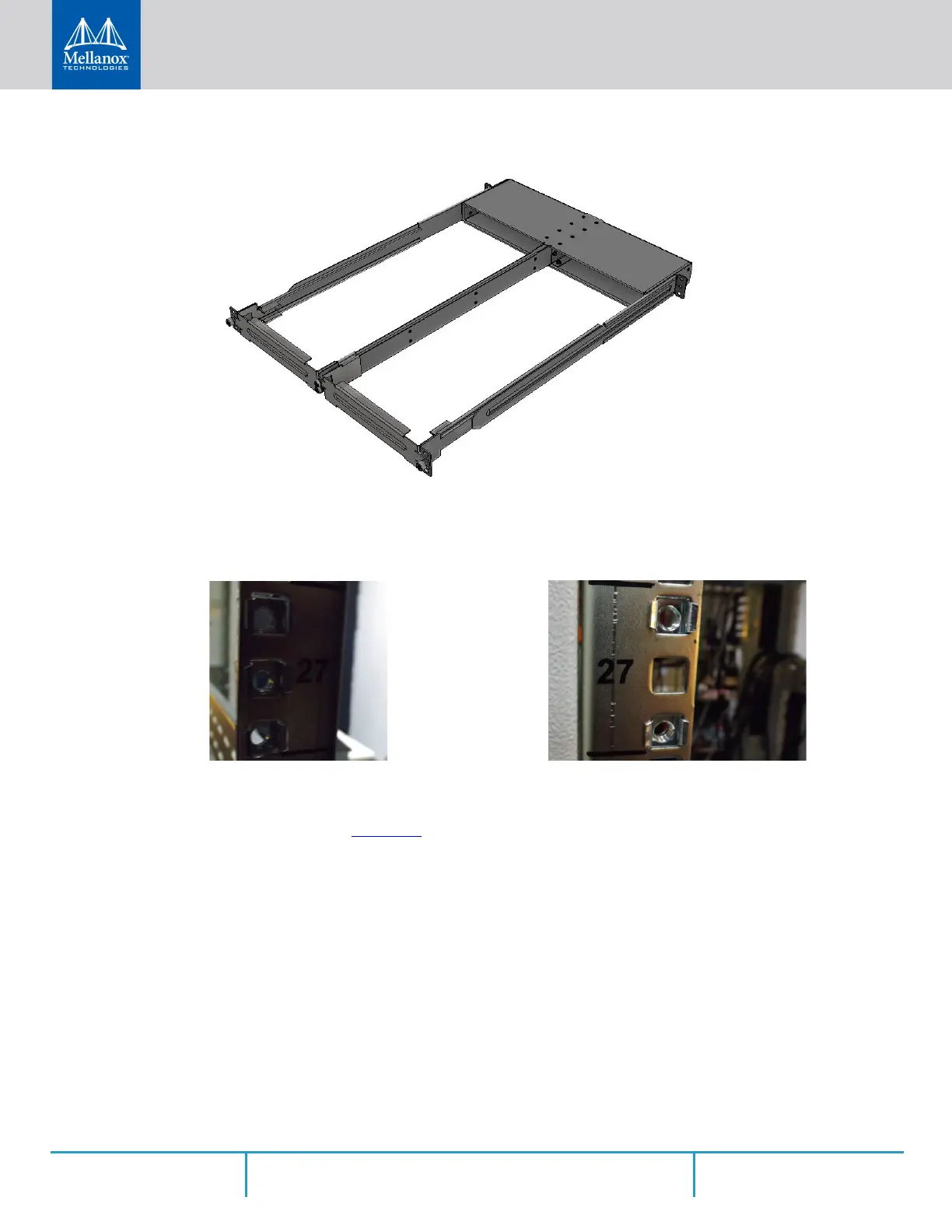

Figure 40: Sliding the Frame Sliders into the Rails
Step 6. Install ten cage nuts in the desired slots of the rack: three cage nuts in the front part of each
cabinet post, and two cage nuts in the rear part of each cabinet post.
Figure 41: Installing the Cage Nuts
Step 7. Attach the frame to the rack by using ten spacer cage nuts, and screw ten M6 pan head
screws - four in the front part of the rack, and 6 in its rear part. The recommended torque is
6.55-7.35 Nm. See
Figure 41.
Step 8. Place the frame in the cabinet.
