Installation
Rev 2.2
56Mellanox Technologies

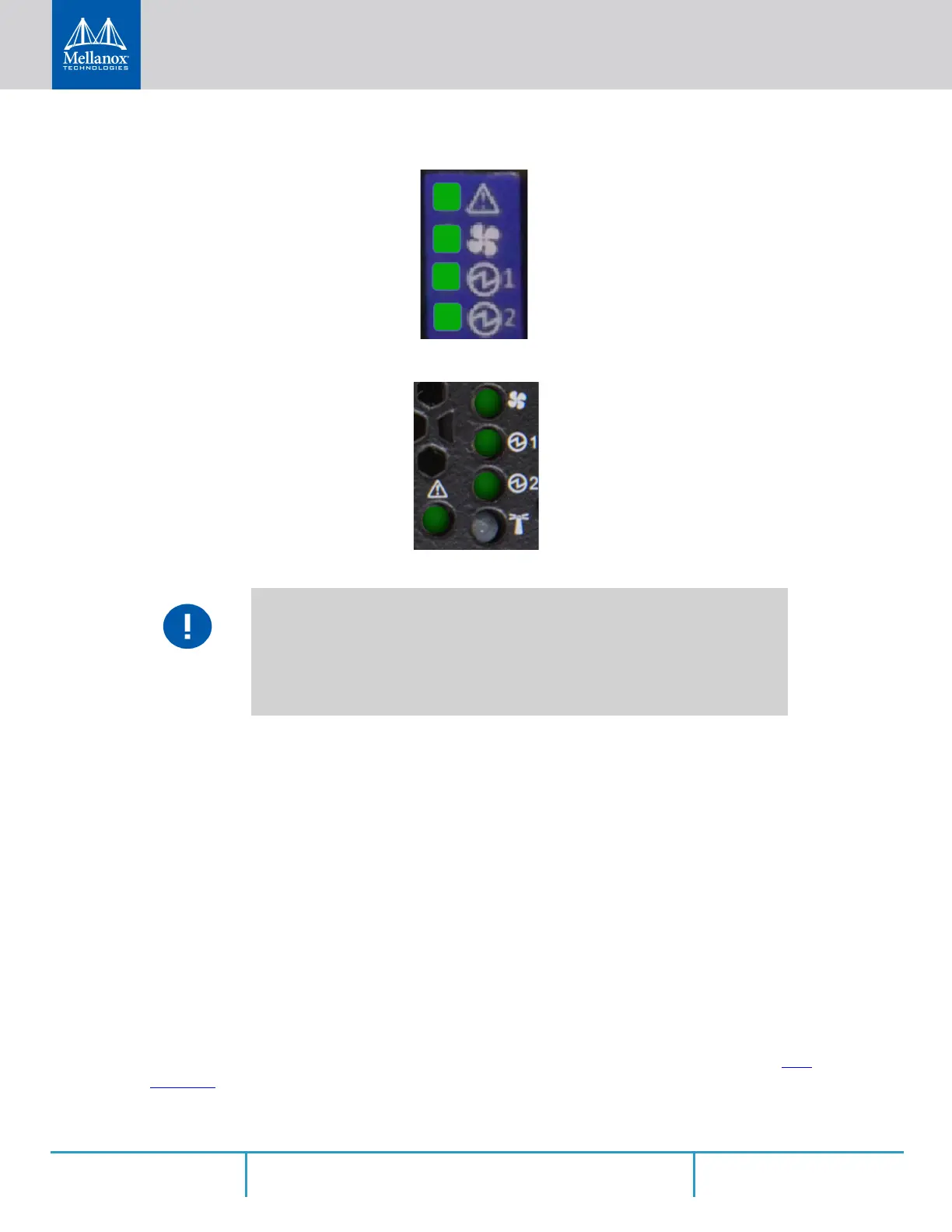

Figure 55: System Status LEDs 5 Minutes After Power On in SN2100
Figure 56: System Status LEDs 5 Minutes After Power On in SN2010
Figure 57: Two Power Inlets - Electric Caution Notifications
2.8 System Bring-Up
For bring-up of a switch system with Onyx (MLNX-OS) operating system installed, refer to Sec-
tion 2.8.1.
After inserting a power cable and confirming the green System Status LED light is
on, make sure that the Fan Status LED shows green.
If the Fan Status LED is not green, unplug the power connection and check that the
fan module is inserted properly and that the mating connector of the fan unit is free of
any dirt and/or obstacles. If no obstacles were found and the problem persists, call
your Mellanox representative for assistance.
CAUTION
Risk of electric shock and
energy hazard. The two power
supply units are independent.
Disconnect all power supplies to
ensure a powered down state
inside of the switch platform.
ACHTUNG
Gafahr des elektrischen
Schocks. Entferrnen des
Netzsteckers elnes Netz-
teils spannungsfrei. Um
alle Einhieten spannungs-
frei zu machen sind die
Netzstecker aller Netzteile
zu entfernen
ATTENTION
Risque de choc et de danger
e’lectriques. Le de’branch-
ment d’une seule alimentation
stabilise’e ne de’branch
uniquement qu’un module
“Alimentation Stabilise’e”.
Pour isoler completement le
module en cause, Il faut
de’brancher toutes les alimen-
tations stabilise’es.
