NetPerformer Hardware Installation Guide
3-22 Memotec Inc.
3.6.2 Installing the SDM-9220/9230 in a Rack
A rackmount kit is provided with each SDM-9220/9230 unit for optional rackmount
installation of the unit chassis (Ordering part number: 100-1086-001). Details about the
rackmount kit are provided on “Rackmount Kit” on page 4-18.
► To assemble the rackmount kit and install the unit in a rack:
1. Screw the brackets to the front or rear of the SDM-9220/9230 unit using 3 small
screws along the bottom of each bracket, as shown in Figure 3-13
.
NOTE: Screw holes for this purpose have already been made at the factory along the
bottom of the unit chassis. You can align the rackmount bracket along any 3
of these holes, depending on the depth of your rack. You can mount the
brackets in either direction, depending on whether you want to access the
front or rear of the unit once it is installed in the rack.

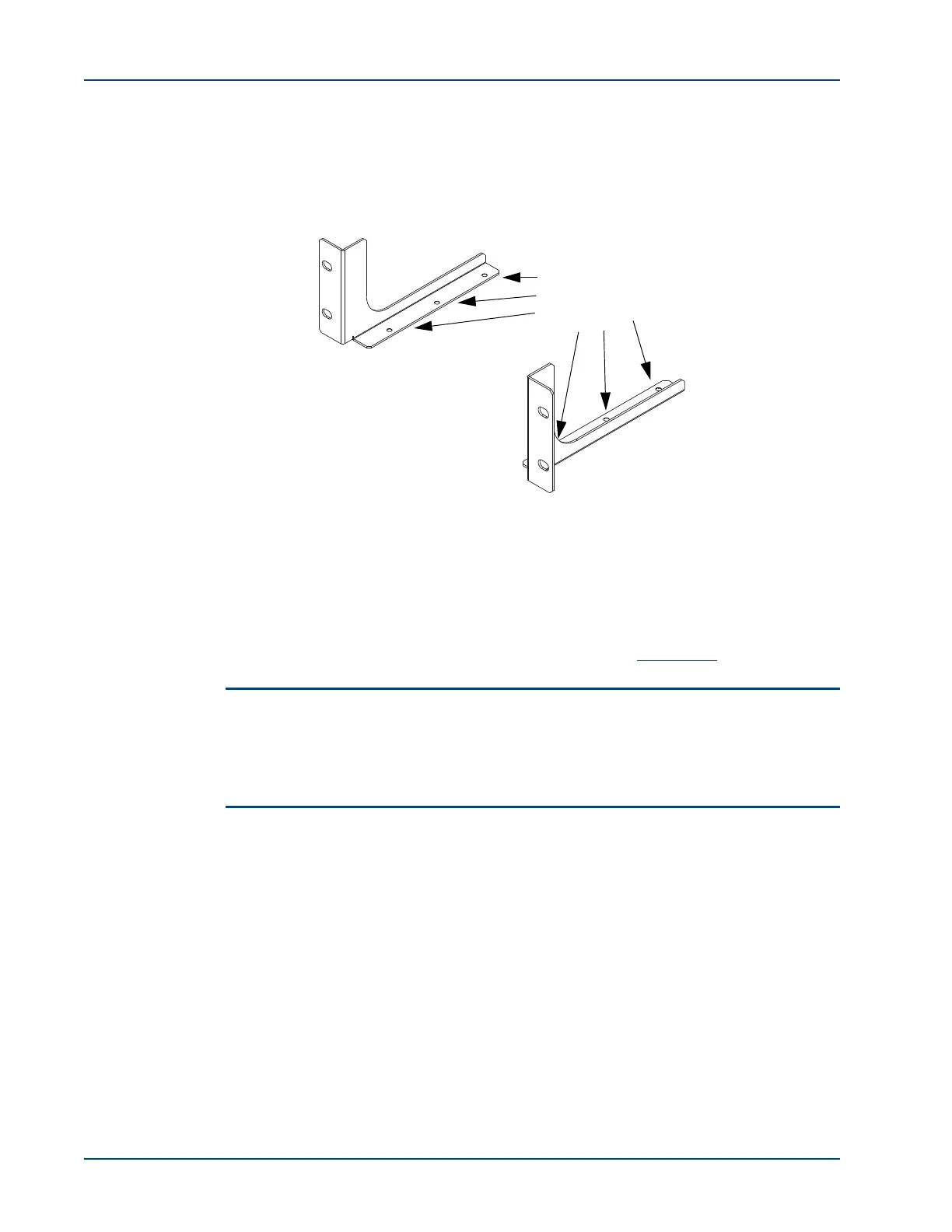

Figure 3-13: SDM-9220/9230 Rackmount Brackets
Install each bracket
with 3 screws into
pre-drilled holes on
base of unit.
Left bracket
Right bracket
