► To place the unit in a rack, follow these steps:
1. Secure the rack so that it does not move during the installation.
2. Prepare the mounting brackets and the support screws. See Figure 4-12.
When you unpacked your unit, locate a pair of mounting brackets with a bag of
mounting screws. The larger screws secure the mounting brackets to the unit. The
smaller screws are to attach the optional handle to the bracket.
3. Optionally, you can add a handle to the bracket by aligning the handle with the holes
and attaching the handle using 2 screws provided.
4. Using the mounting screws, secure each mounting bracket on either side of the unit
along the front edge. Secure the bracket to the side of the unit with 3 screws, using
the 3 holes closest to the front of the bracket. See Figure 4-13.
5. Insert the unit into the rack at the desired level and line the holes in the unit mounting
SDM-9120 brackets with the holes in the rack mounting plates.

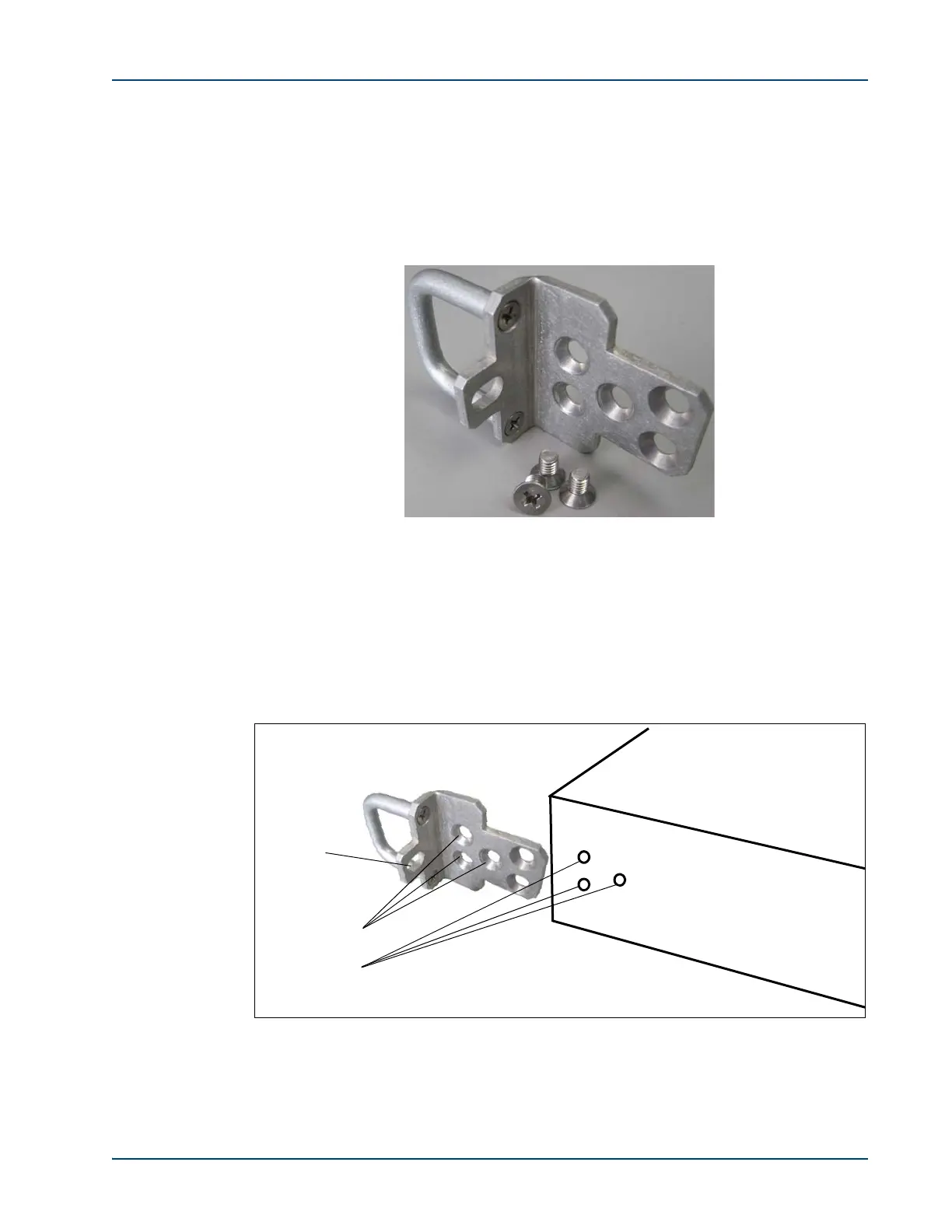

Figure 4-12: Mounting Screws and Mounting Bracket
Figure 4-13: Side View of a Unit with a Bracket
Rack
mounting
hole
Mounting
holes on
bracket to unit
Mounting holes
on unit
