NetPerformer Hardware Installation Guide
4-18 Memotec Inc.
4.10 Rackmount Kit
One rackmount kit is supplied with the unit for mounting in a standard 19" (48 cm) rack.
The ordering part number for the SDM-9220/9230 is 100-1086-001, and KT-0021088 for
the SDM-9120. To assemble the rackmount kit and install the unit in a rack, refer to
“Installing the Unit in a Rack” on page 3-21.
For the SDM-9220/9230 units, the kit includes:
• Two brackets (left and right)
• Six small screws for the brackets: Phillips 5 mm (3/16”)
• Four mounting screws with washers: Phillips 10 mm (3/8”)
4.10.1 Using the Mounting Brackets for the SDM-9120 or SDM-9140

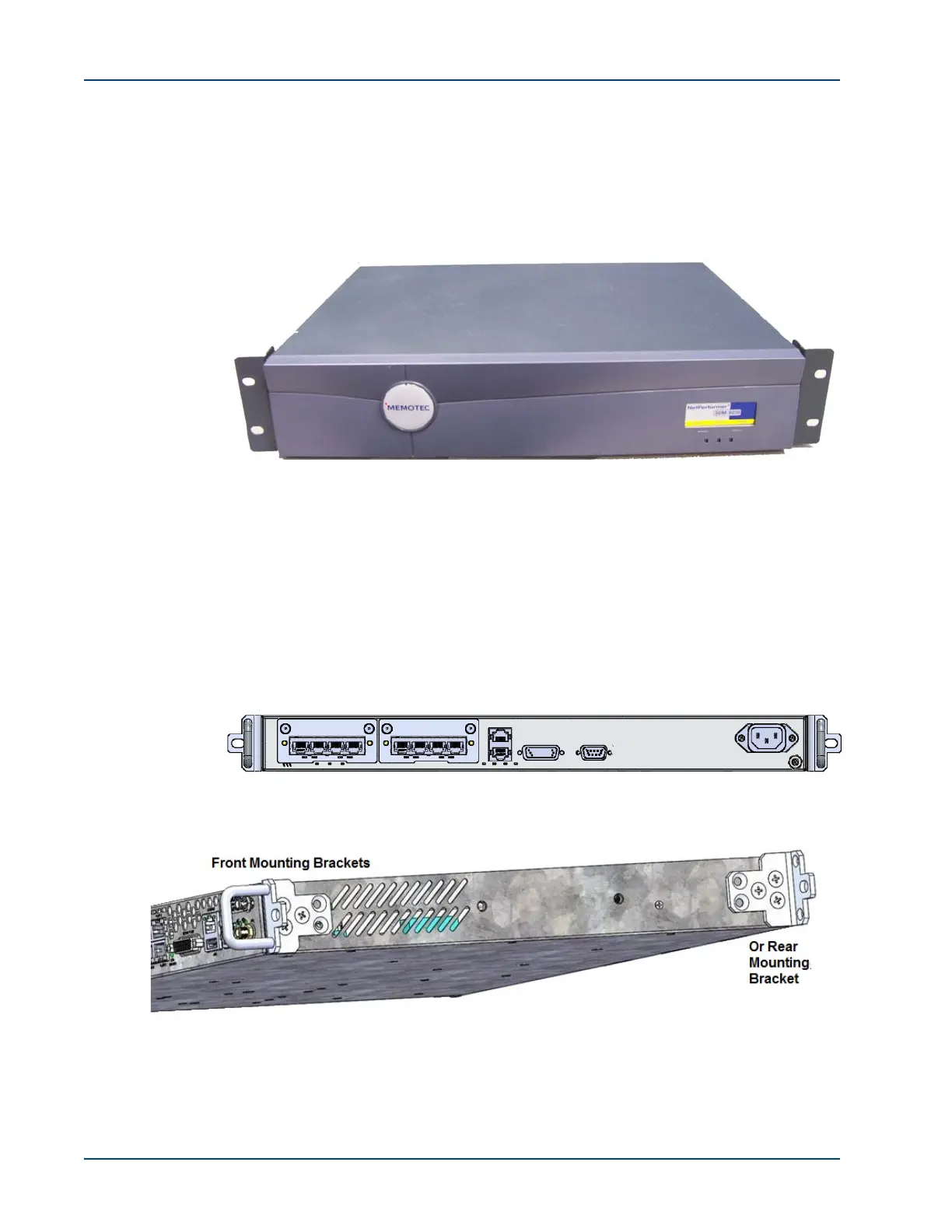

Figure 4-9: SDM-9220/9230 Installed with Rackmount Brackets
Figure 4-10: SDM-9120 with Rackmount Brackets
Figure 4-11: SDM-9140 with Rackmount Brackets
