Hardware Installation
Memotec Inc. 3-29
3.9 Powering the Unit
All the SDM-9XXX Series units are AC or DC powered, except for the SDM-9120 unit
which is AC powered only.
NOTE: Information about the power supply is provided on “Power Supply” on page 4-17.
3.9.1 SDM-9XXX Series UAC Power Cords
A removable power cord is supplied with the unit, either:
• 115VAC North American type, or
• 240VAC European Schuko type (see Figure 3-18).
► To connect a UAC unit to its power source:
1. Ensure that all interface cards are fully inserted into their slots and securely screwed
into place.
2. Connect the factory supplied power cord to the AC inlet, located at the rear of the
SDM-9XXX Series chassis.
3. Plug the other end of the power cord into an AC power outlet (100-240 VAC, 50/60
Hz) with a protective earthing connection in good condition.
4. For the SDM-9220/9230 units, turn the power switch ON by pushing it to 1. The unit
will begin power-up and system check immediately.

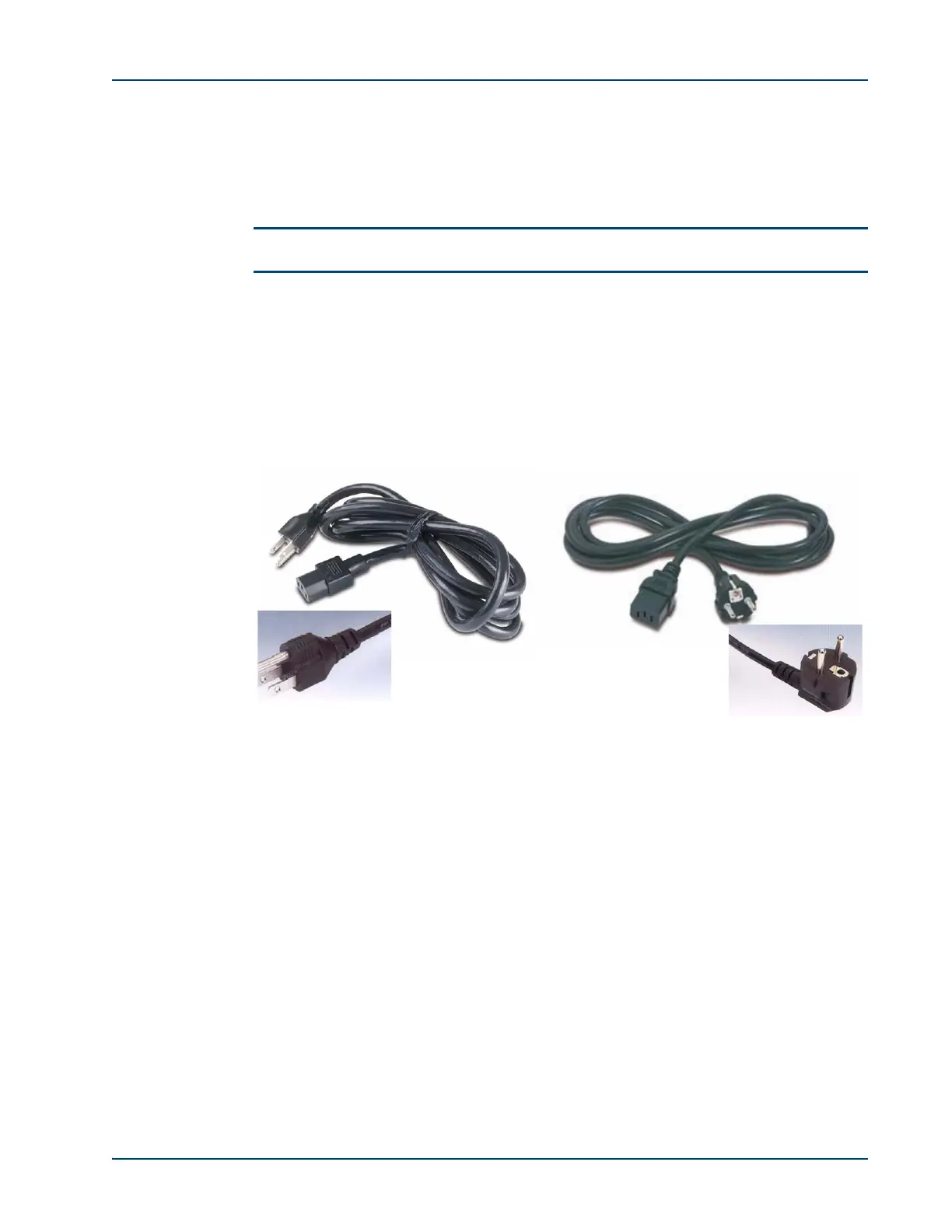

Figure 3-18: Power Cords for the SDM-9220 UAC or SDM-9230 UAC Unit
240VAC
European
Schuko
115VAC North
American type
