4.4 SDM-9140 Base Unit

4.4.1 Front View of the SDM-9140 Base Unit

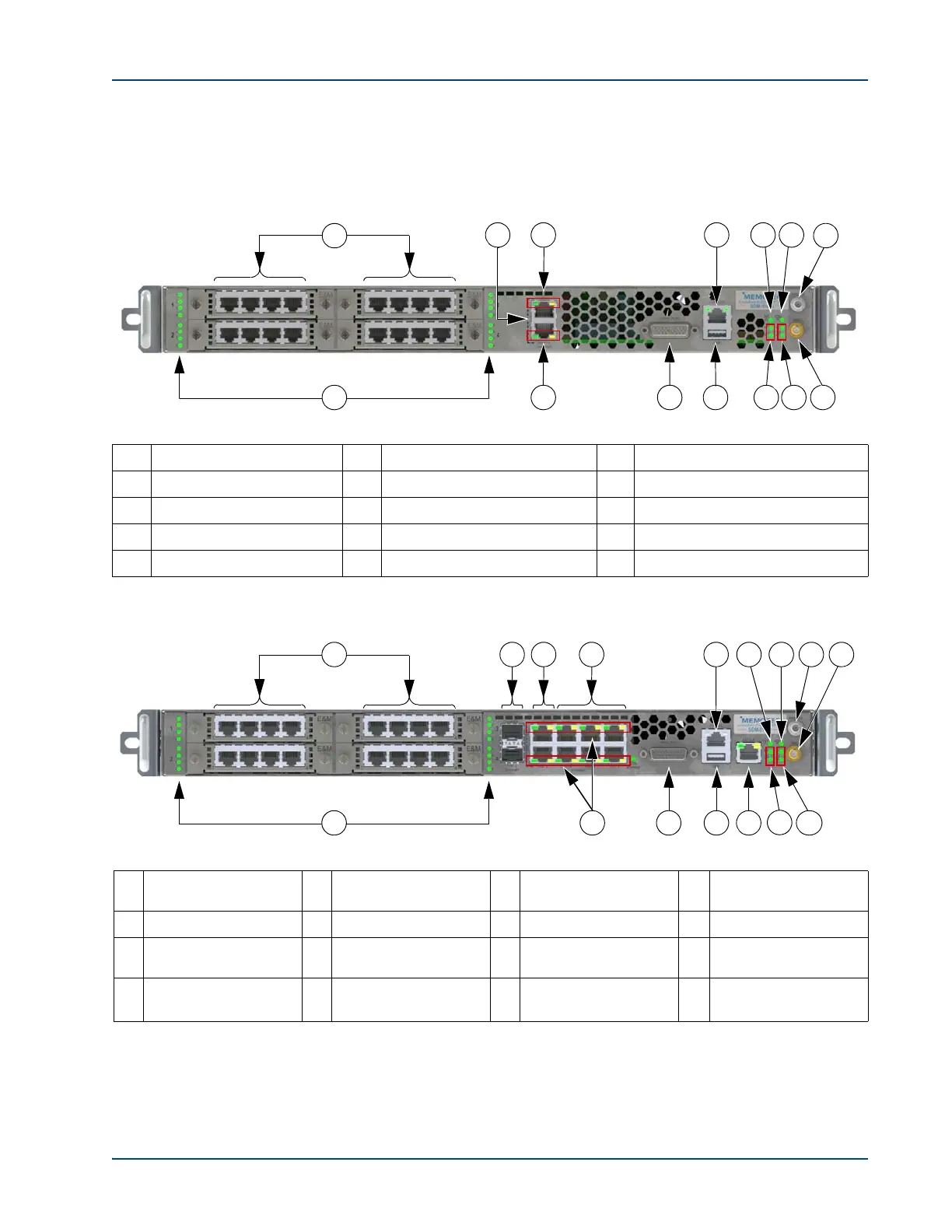

Figure 4-5: Front View of the SDM-9140s

1 Interface card slots (4) 6 USB port 11 Wireless status LED

2 Interface status LEDs 7 Console port 12 GPS antenna connector

3 Gig Ethernet ports (2) 8 Power supplies status LEDs 13 Wireless antenna connector

4 LAN status LEDs 9 GPS status LED

5 Serial port 10 System status LEDs

3 4

5 6

7 9 11

8 10

1 Interface card slots (4) 5 Gig Ethernet ports 3-8

(RJ45/LAN switch)

9 Console port 13 Wireless status LED

2 Interface status LEDs 6 LAN status LEDs 10 External clock In/Out 14 System status LEDs

3 Gig Ethernet ports 1-2

(SFP option)

7 Serial port 11 GPS status LED 15 Wireless antenna

connector

4 Gig Ethernet ports 1-2

(RJ45)

8 USB port 12 Power supplies status

LEDs

16 GPS antenna

connector

Figure 4-6: Front View of the SDM-9140e

43 13

8 10 12 146

9 155
