INBOARD (MIE) MODELS SERVICE MANUAL NUMBER 22
Page 2B-14 90-860074--1 FEBRUARY 2002
b. TO MOVE ENGINE TO THE LEFT OR RIGHT: Loosen clamping screw and nut on
all four mount brackets; move engine to the left or right as necessary to obtain proper
alignment. Torque clamping screws and nuts to 68 Nm (50 lb-ft).
NOTE: A small amount of side-to-side adjustment can also be obtained from the slots on
the engine mount pad (front pads only). Loosen lag bolts (which fasten mounts to engine
bed) and move engine, as required. Tighten lag bolts securely.
IMPORTANT: Large diameter of mount trunnion MUST NOT extend over 19 mm
(3/4 in.) from mount brackets on any of the mounts.
50687
a
b
50687
a
b

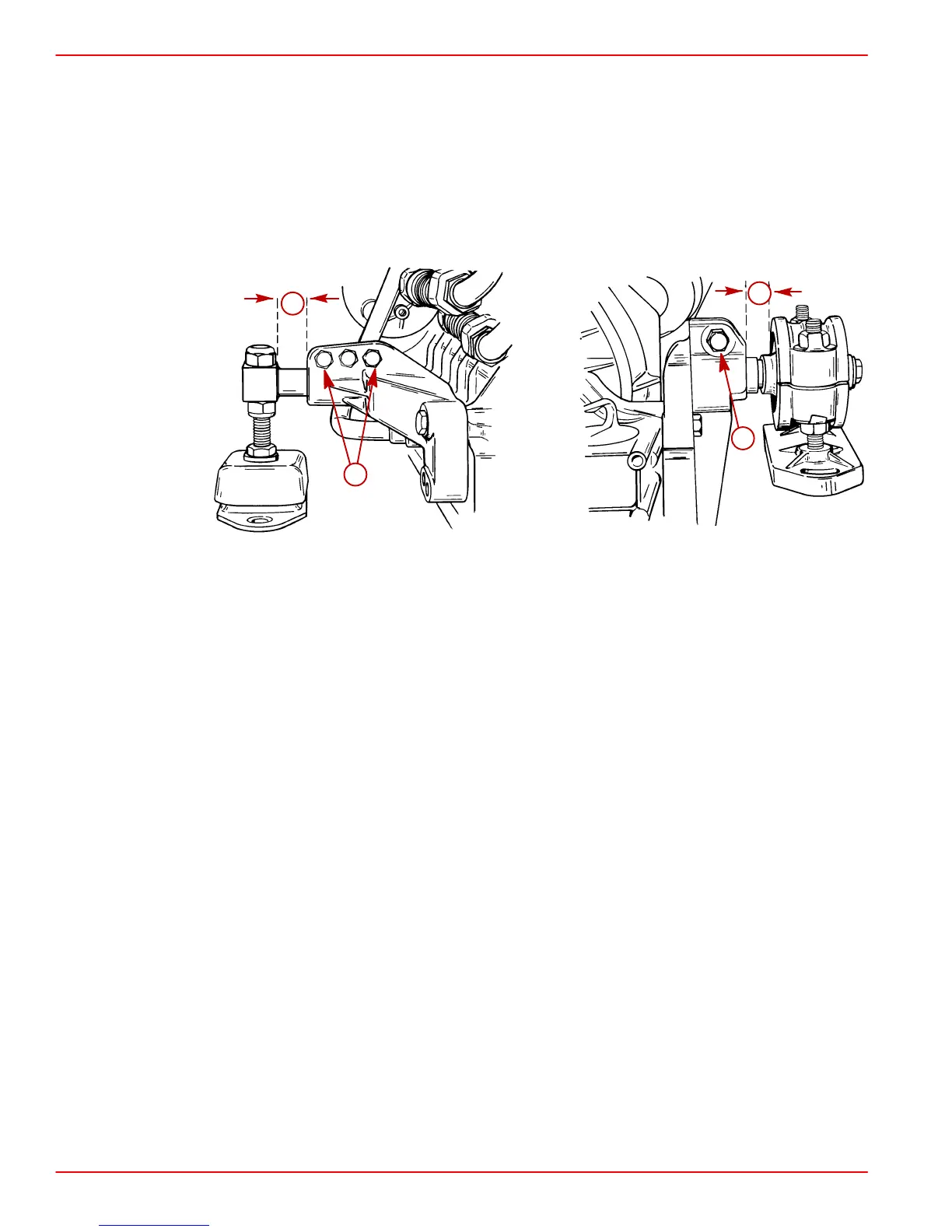

Front Mounts Rear Mounts
a-Clamping Bolts and Nuts
b-Mount Trunnion Maximum Extension
