c. After engine has been properly aligned, relieve hoist tension entirely. Secure mounts
to stringers using appropriate hardware. On port front mount do as follows:
(1.)Position ECM assembly mounting bracket holes directly over front, port engine
mount holes.
NOTE: It may be necessary to lower, or raise, the ECM assembly and bracket, depending
upon the final configuration of the power package, to position ECM on front mount.
(2.)Fasten ECM mounting bracket and front mount assembly to boat stringer using
appropriate hardware (lag bolts or thru-bolts etc.).
75301
a
b
c
d

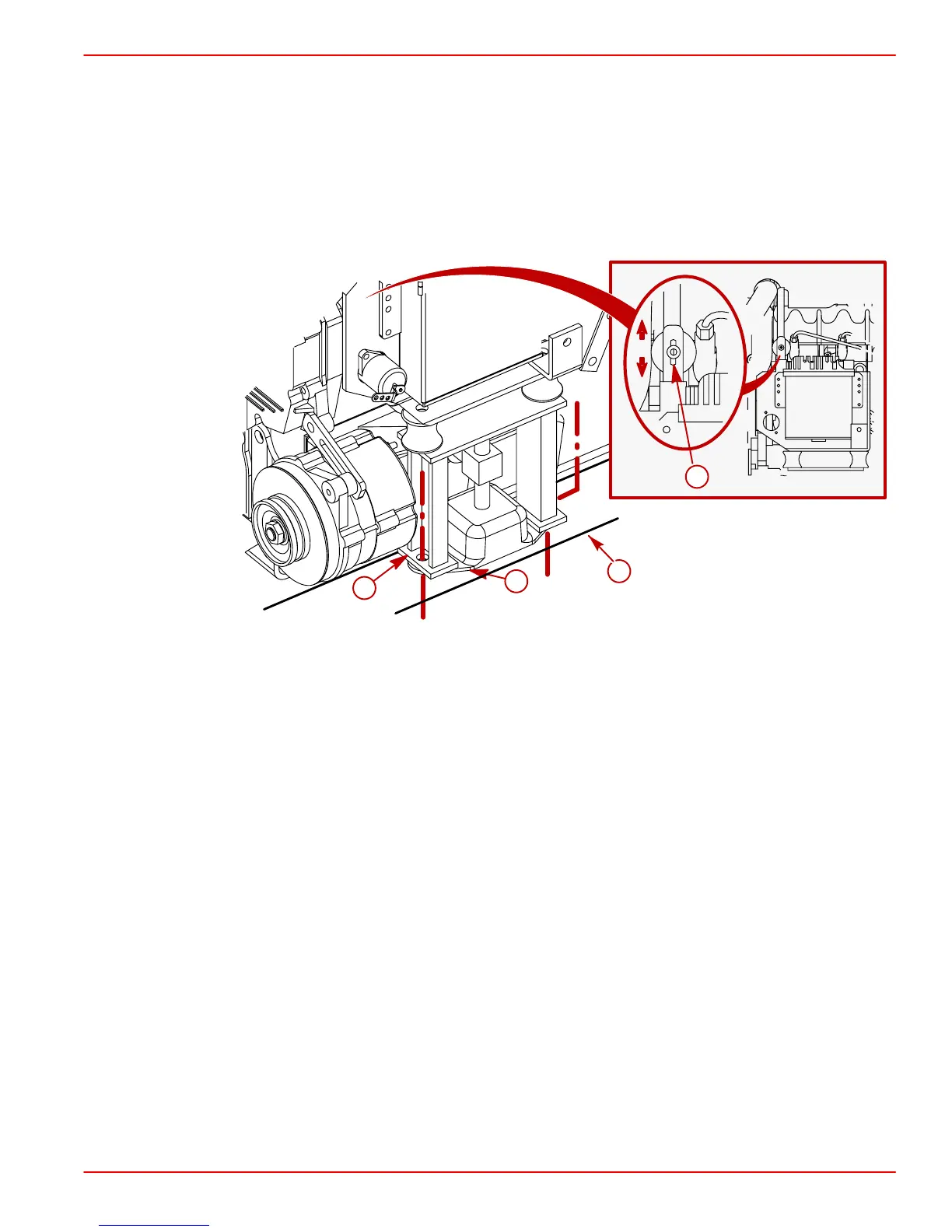

a-ECM Assembly Mounting Bracket
b-Front, Port Engine Mount
c-Stringer
d-Slotted Hole For Raising Or Lowering ECM Assembly
