INBOARD (MIE) MODELS SERVICE MANUAL NUMBER 22
Page 2B-16 90-860074--1 FEBRUARY 2002
6. Connect propeller shaft coupler to transmission output flange following instructions a.
or b.:
IMPORTANT: All coupler bolts must be Metric Grade 10.9 (SAE Grade 8) or better, with
a shoulder (grip length) sufficient to pass through the mating face plane of couplers.
a. All Couplings Without Propeller Shaft Set Screws: Secure coupling together
with bolts, lockwashers and nuts. Torque to 68 Nm (50 lb-ft).
50687
a
b
c
d

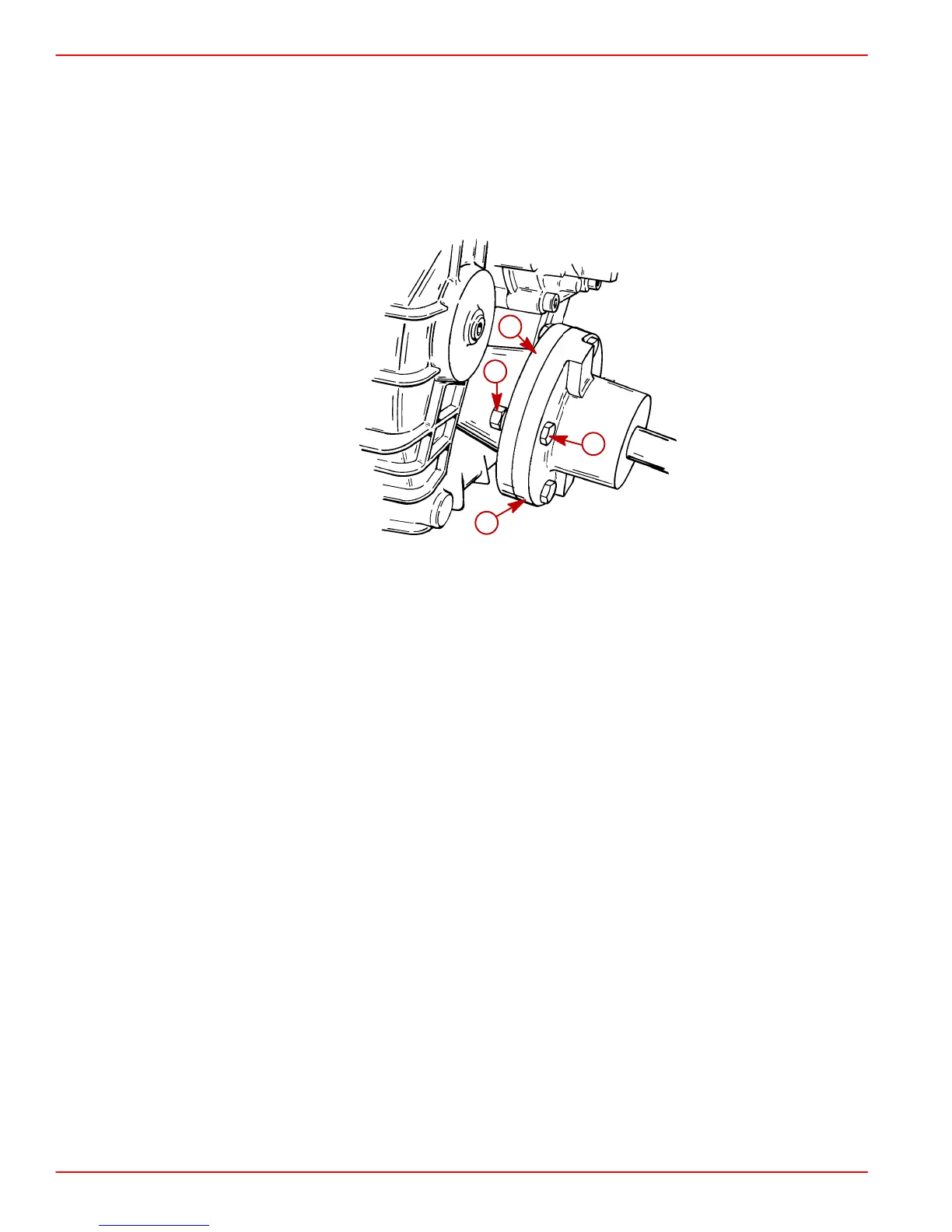

Hurth 8 Degree Down Angle Transmission Shown (All Similar)
a-Propeller Shaft Coupler
b-Bolts (4)
c-Lockwasher and Nut (4)
d-Transmission Output Flange
