INBOARD (MIE) MODELS
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 2B-17
b. Couplings with Propeller Shaft Set Screws:
(1.)If propeller shaft coupler has set screws, remove set screws and mark (dimple)
locations using a transfer punch.
50609
a
b

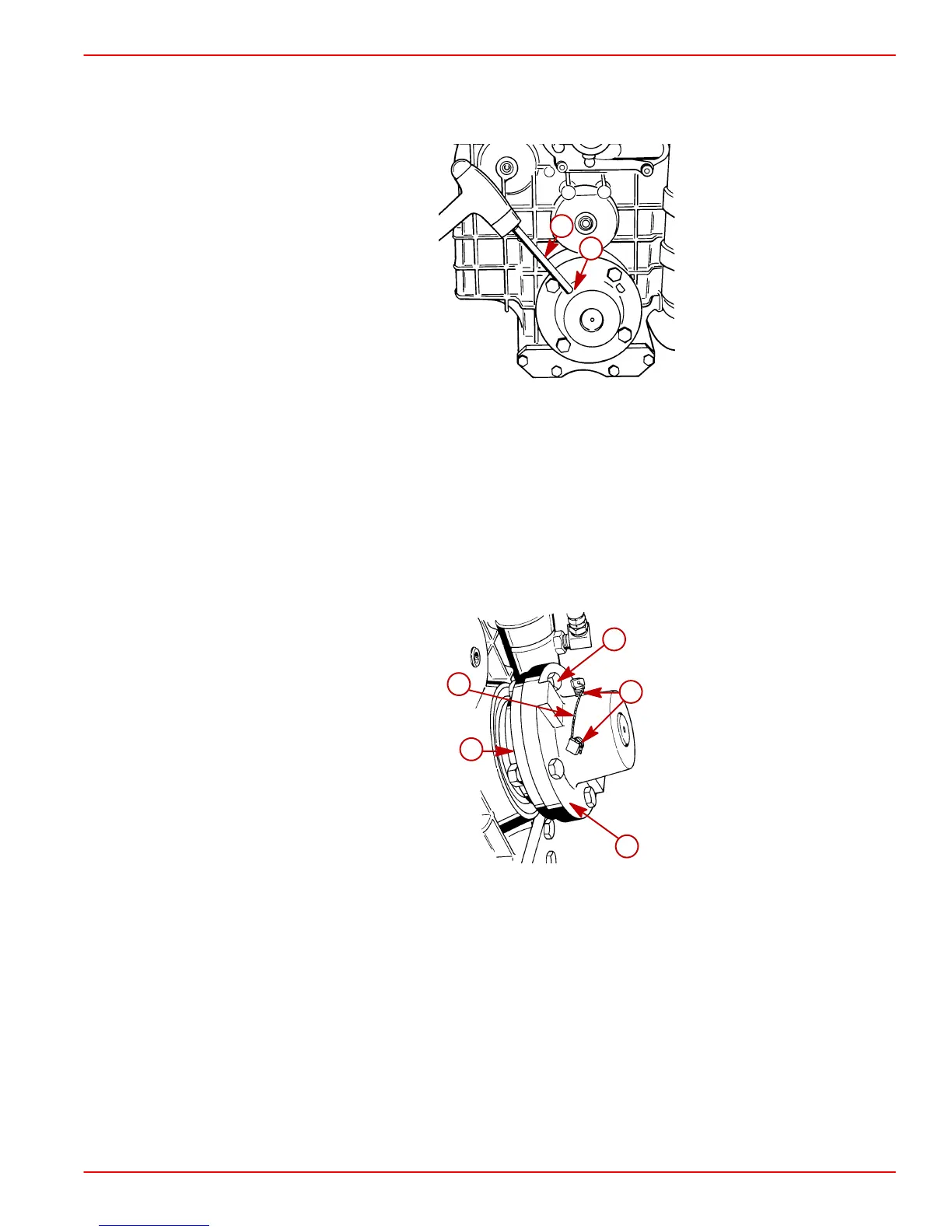

Hurth V-Drive Shown (All Similar)
a-Set Screw Location
b-Transfer Punch
(2.)Remove propeller shaft coupler and drill shallow dimples at locations marked
with punch.
(3.)Reinstall propeller shaft coupler and torque bolts to 68 Nm (50 lb-ft). Install set
screws and tighten securely. Safety wire set screws to ensure they Do NOT back
out.
50608
a
b
c
d
e
Hurth V-Drive Shown (All Similar)
a-Propeller Shaft Couple
b-Bolts (4), with Lockwashers and Nuts (4)
c-Set Screws
d-Safety Wire
e-Transmission Output Flange
To Next Page
