INTERCOOLER
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 7A-17

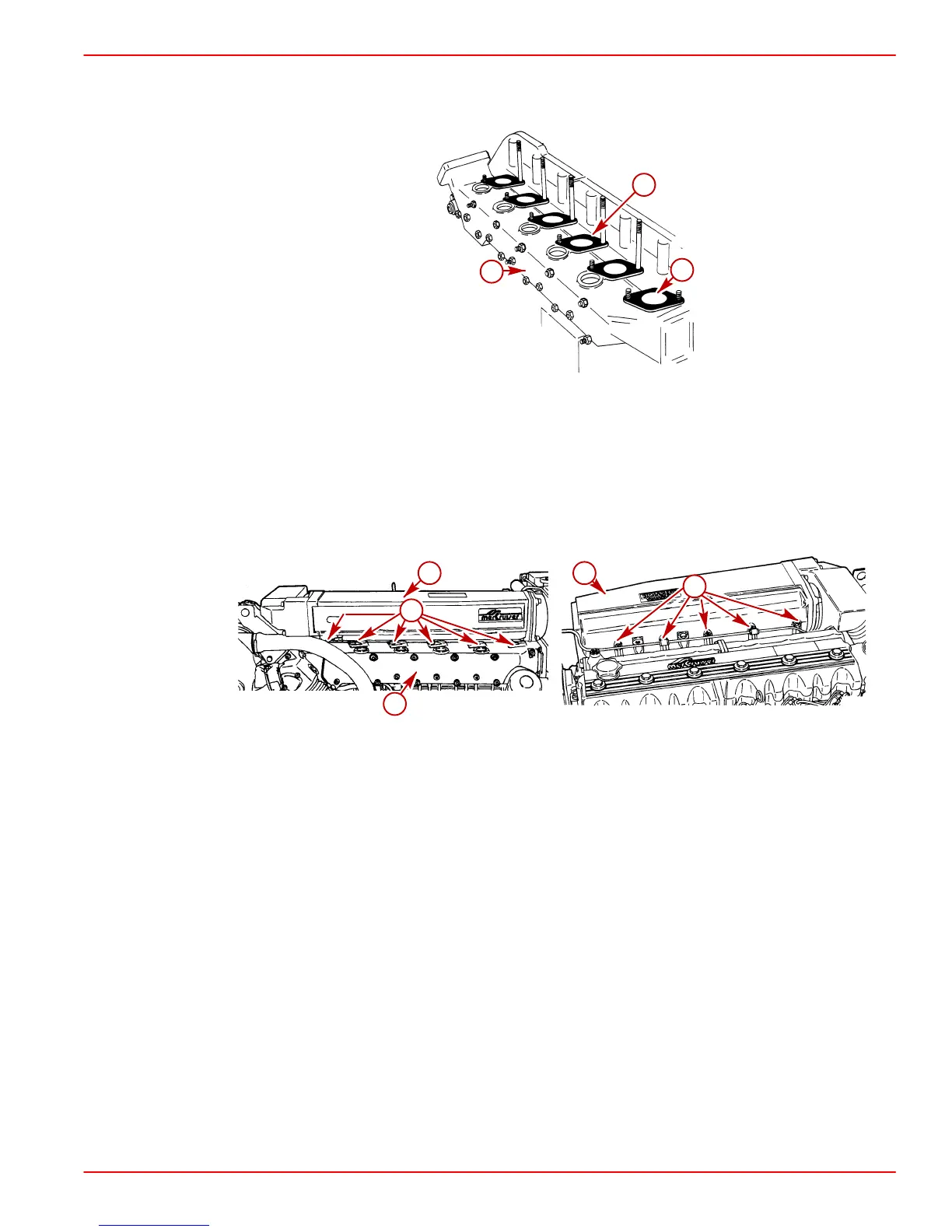

Installation
1. Install new intake port gaskets.
70881
c
a
b
Typical
a-Manifold
b-Intake Ports
c-Intake Port Gaskets
2. Install intercooler housing.
3. Install hex nuts with lockwashers and torque to 32 Nm (24 lb-ft).
70916
70921
b
a
c
a
c
Typical
a-Intercooler/Intercooler Housing
b-Exhaust/Intake Manifold
c-Hex Nuts
To Next Page
