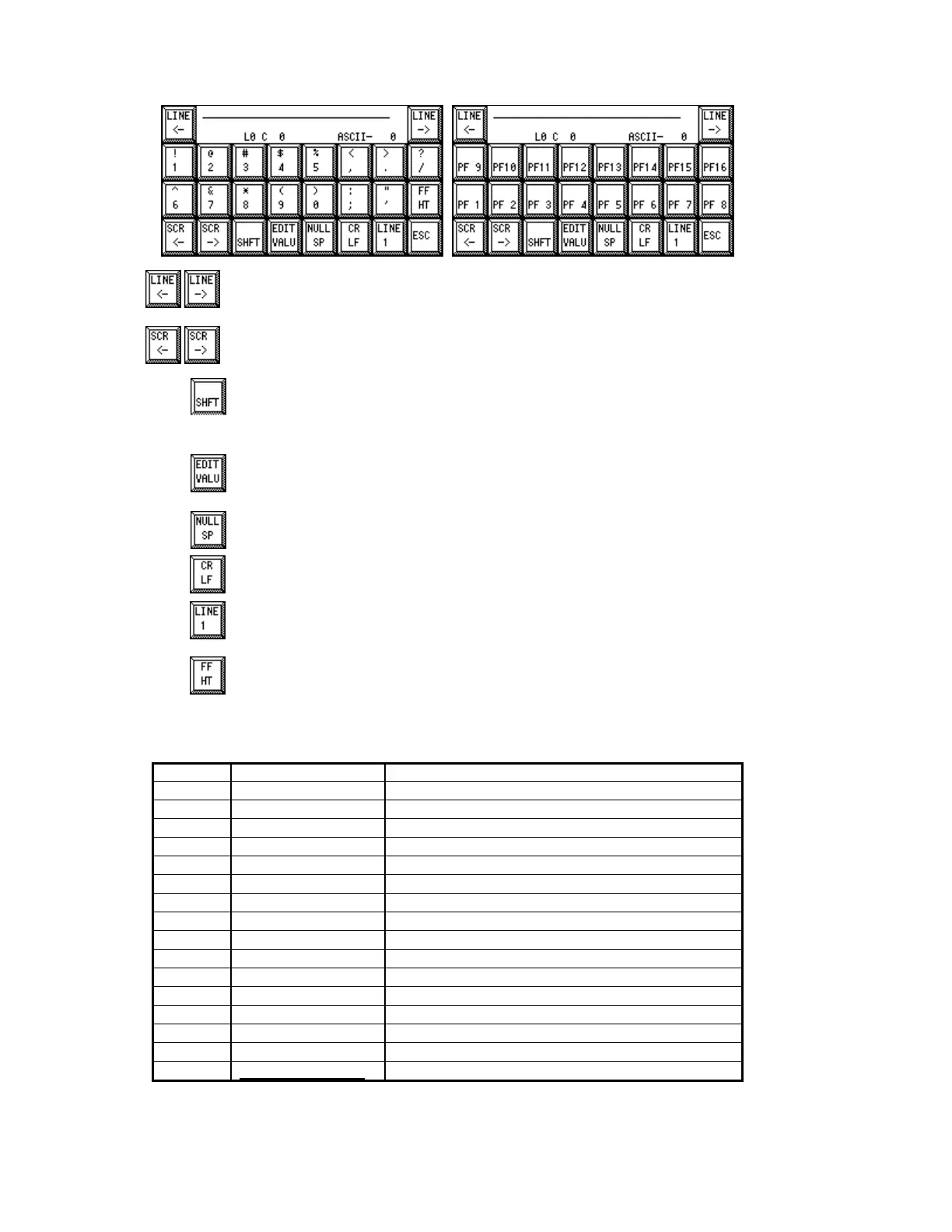

These allow you to move character by character in the selected print string.
Touching these buttons will allow you to rotate through the character selection screens.
This is the shift button. This allows you to select uppercase or non-alphanumeric
characters on the buttons. If a button has two lines displayed the upper set is selected
by pressing this button (SHIFT will appear under the string) then pressing the
appropriate button.
This allows you to enter specific ASCII values that are not supported with a button.
Also enter the print counter and increment values.
Un-shifted this is used to place a space character in your string. When the shift is
enabled, it places a null (0) value at that character position.
In the un-shifted mode this button places a linefeed character in the string. When
shifted, it places a carriage return at the current character position.
This button toggles through the four available print strings.
FF - Form feed
HT - Horizontal tab
PF buttons.
The PF buttons embeds function codes into print string.
Button
Function
Description
PF1
ASCII CODE
DO NOT USE
PF2
Total
Prints the total
PF3
Sub-total
Prints the subtotal
PF4
Date
Prints the MC³ date.
PF5
Time
Prints the MC³ time.
PF6
Clear Sub-total
Clears the Sub-total
PF7
Counter
Prints the value of the print counter
PF8
Increment counter
Increment the counter
PF9
Belt load
Prints the current belt load
PF10
Feedrate
Prints the current feedrate.
PF11
Setpoint
Prints the current setpoint
PF12
Register value
Prints the value of a register
PF13
Load unit
Prints the Load units.
PF14
Feedrate unit
Prints the Feedrate units.
PF15
Total unit
Prints the Total units
PF16
NOT EMBEDDED
Clear currently selected print string
