MC³ 24.96.EX O&M Manual Page 62 08/14/01 4:34 PM/LDD

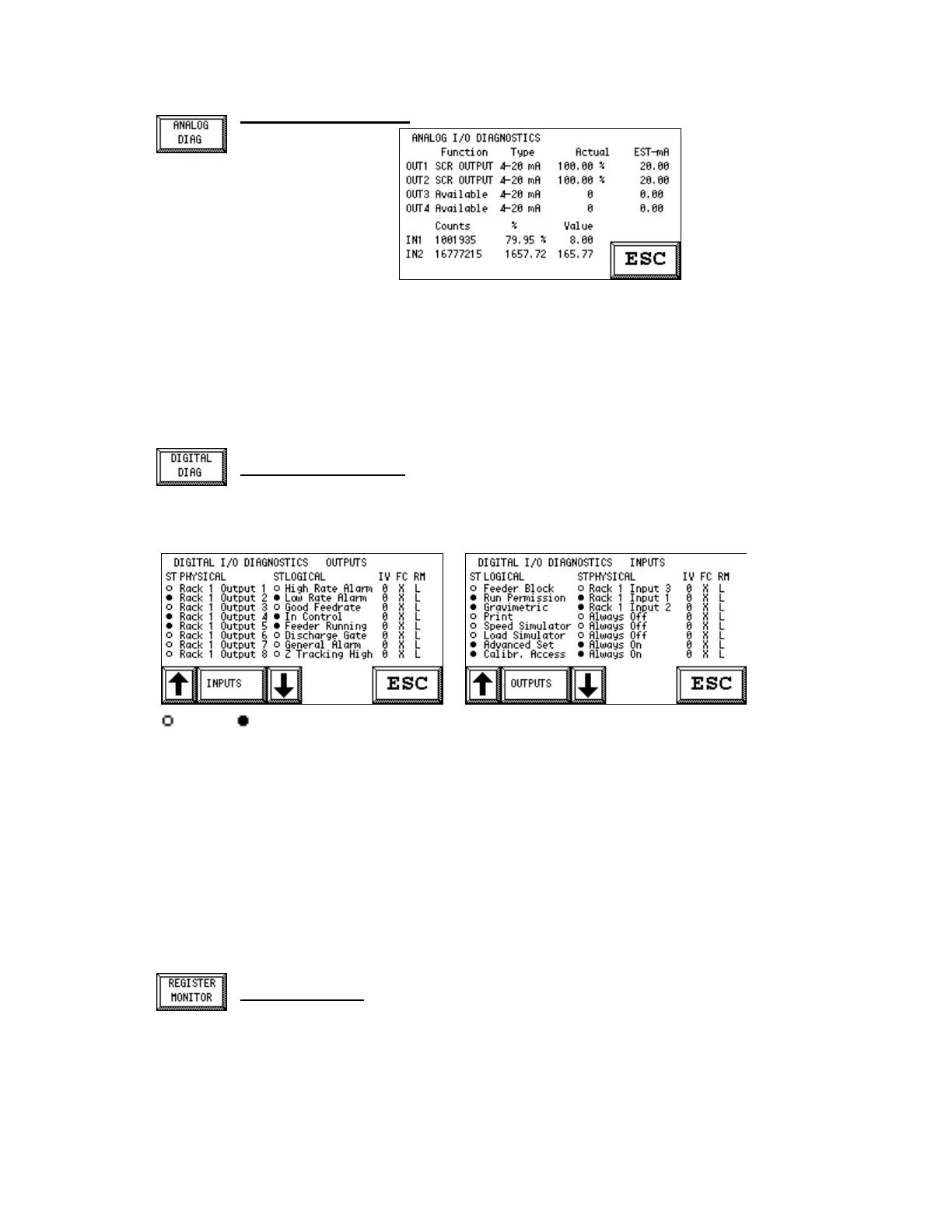

Analog I/O Diagnostics
This diagnostic screen displays the current function and type for each of the Analog outputs. The
“Actual” column in the output section displays the current value of function selected for the
particular output. The “EST-mA” column displays the estimated milliamp value for the output. See
Analog Outputs on page 33 for more information.
In the Input section the current analog counts, the percentage of the allowed range and the value
based on the scaler for the particular input are displayed. See Analog Input on page 33 for more
information.
Digital I/O Diagnostics
The button between the up and down arrows toggles between Digital Outputs and
Inputs. The up and down arrow buttons are used to page the digital I/O points.
For more information see Digital I/O Mapping on page 34.
= OFF = ON
ST - Current status of I/O point.
IV - Invert the I/O point.
0 The Physical I/O point is not inverted.
1 The Physical I/O point is inverted.
FC - Force the I/O point ON, OFF or Normal Operation.
0 I/O point is forced off.
1 I/O point is forced on.
X I/O point is under normal operation.
Register Monitor
