MC³ 24.96.EX O&M Manual Page 23 08/14/01 4:34 PM/LDD
Entering New Values on page 9 for the proper method to enter values into Numeric Entry Screens.

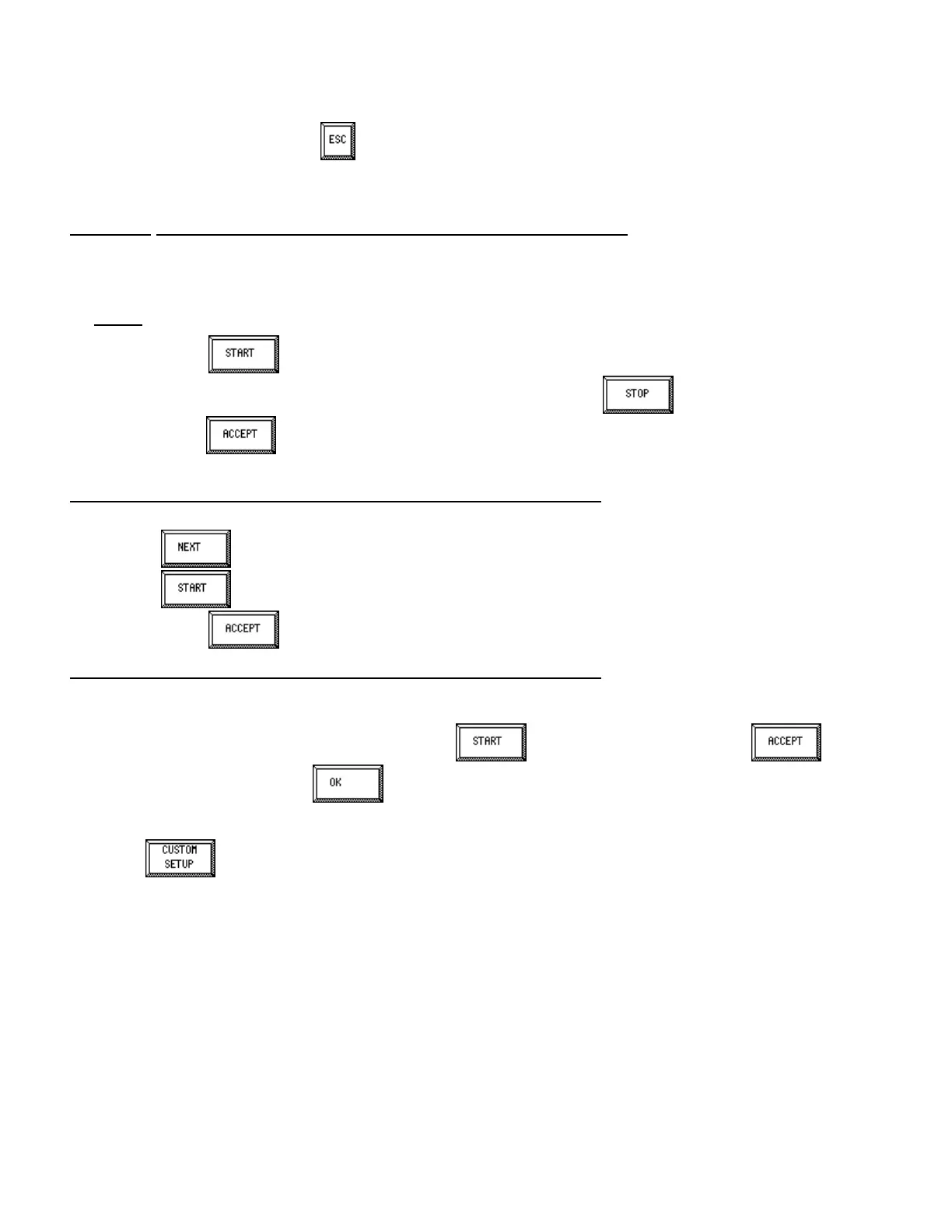

When complete, touch to exit the numeric entry screen and return to EZ Setup procedure.
The next series of tests will determine the type and mode of the Tacho attached, the number of
pulses per revolution of the belt and the design speed of the feeder.
WARNING: THE BELT WILL START MOVING TO COMPLETE THESE TESTS.
Five seconds are allotted to allow the belt to start to spin up for the tacho type and direction
detection. Next the speed calibration procedure is performed. This procedure determines the
pulses per belt revolution.
NOTE: The belt must cycle the number of revolutions that is indicated on the speed calibration screen.
Touch when you are ready for the test to be performed. Allow the number of revolutions
specified by # Speed Revs (page 28) to accumulate then touch . If value is reasonable,
touch . The speed will automatically increase to determine the design speed of the
feeder. When this speed is found, the controller will stop the feeder.
WARNING: THE BELT WILL START MOVING TO COMPLETE THIS TEST.
Next the zero procedure will be run to determine the zero load value for your feeder. After touching
the controller will take 5 seconds to allow the feeder to spin up for the test. Touch
to begin the procedure. This will zero the controller when there is no load on the feeder.
Touch to accept results.
WARNING: THE BELT WILL START MOVING TO COMPLETE THIS TEST.
Next the calibration procedure will be performed. You must put the calibration weights on the
feeder suspension. The controller will run 30 seconds to allow the weight to stabilize before
allowing the procedure to be run. Touch to start the procedure. Touch to
accept results. Touch to accept results and quit EZ Setup.
CUSTOM SETUP
There are two screens in the Custom Setup menu. These functions allow you to customize the
controller for a specific feeder and process.
