MC³ 24.96.EX O&M Manual Page 57 08/14/01 4:34 PM/LDD

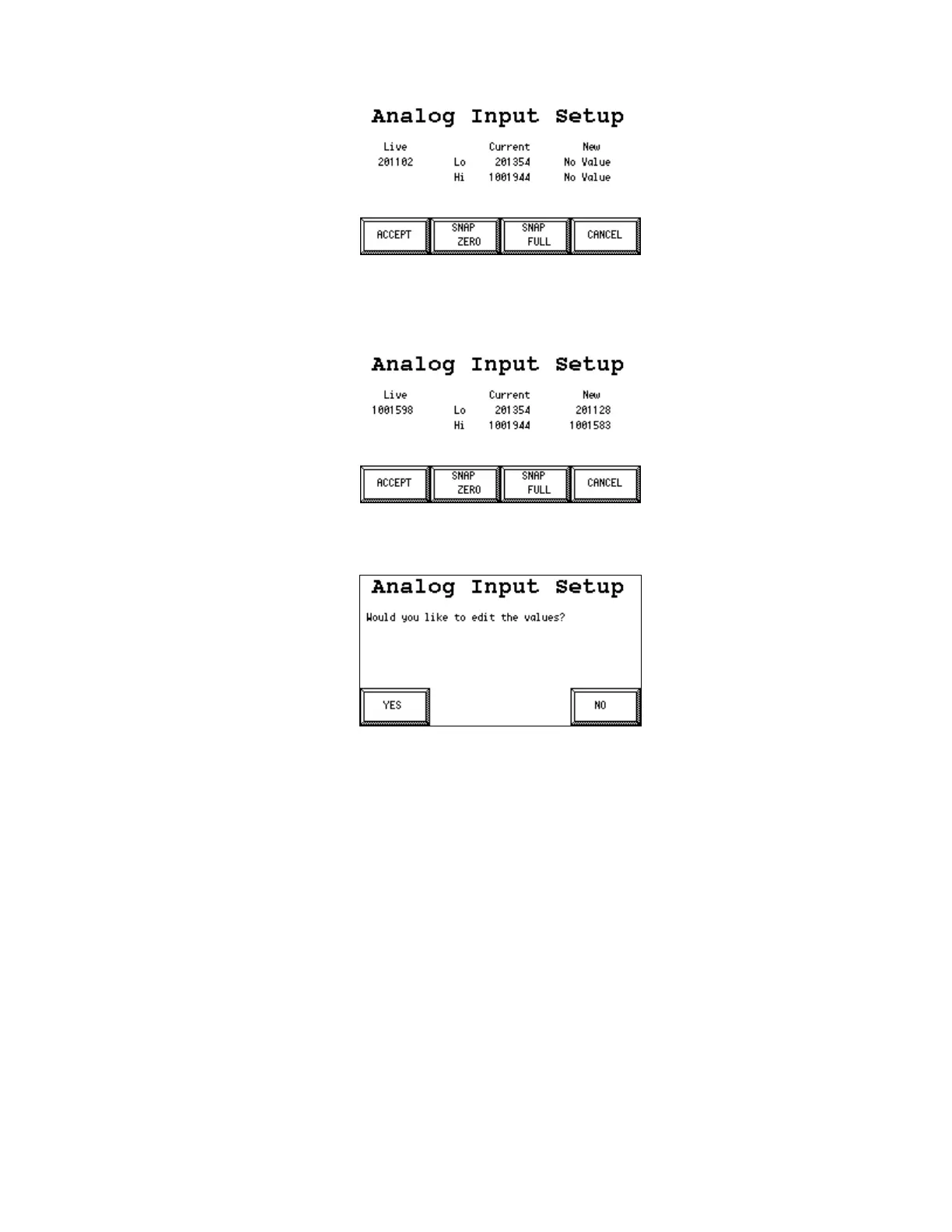

Adjust the input for a zero level. The live counts will vary accordingly. When zero is reached touch
the snap zero button. The live value will snap to the new value column.
Adjust the input for full scale level. The live counts should follow the input. When the full level has
been reached touch the Snap full button. The live value will snap to the new Hi column.
If the values you selected are correct for your application, touch the accept button. You will be
asked if you want to edit the values. This gives you the opportunity to perform fine adjustments to
the zero and full level values.
If you want to manually adjust the values, press the Yes button. The numeric entry screen for
analog inputs will be displayed (see Analog Inputs on page 33). When editing is completed the
controller will return you to the analog input setup screen.
