METREL MI3115 - Editing Graphs; Single Test (Inspection) Screens

MI 3115 PV Analyser
Single tests
40

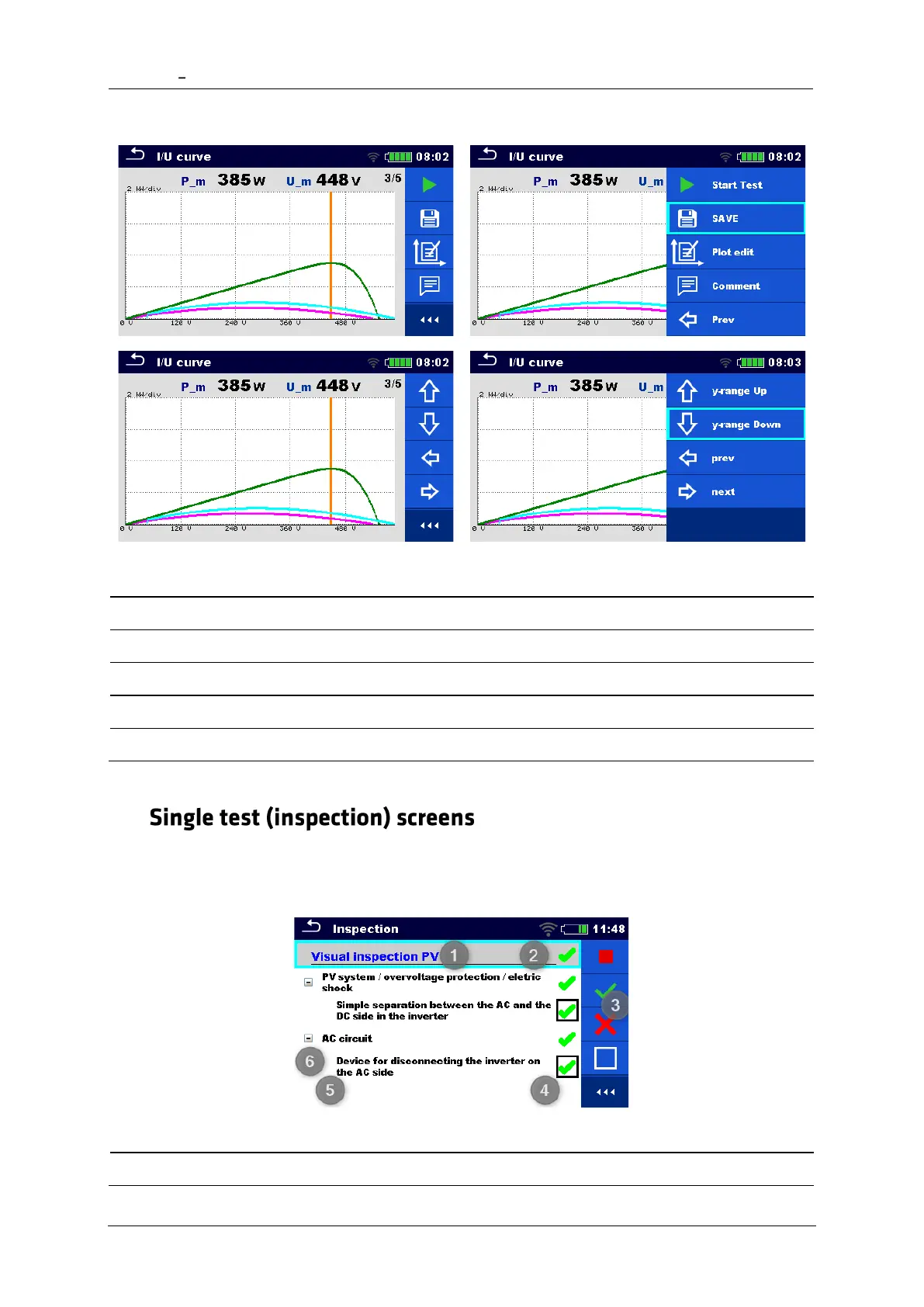

6.2.4 Editing graphs
Options for editing graphs (start screen or after measurement is finished)
Plot edit
Open control panel for editing graphs
y-range Up
Increase scale factor for y-axis
y-range Down
Decrease scale factor for y-axis
Prev
Move cursor left on x-axis
Next
Move cursor right on x-axis
6.3
Visual inspections are a special type of single tests. Items to be visually checked are
displayed. Appropriate statuses can be applied.
1
Selected inspection name
