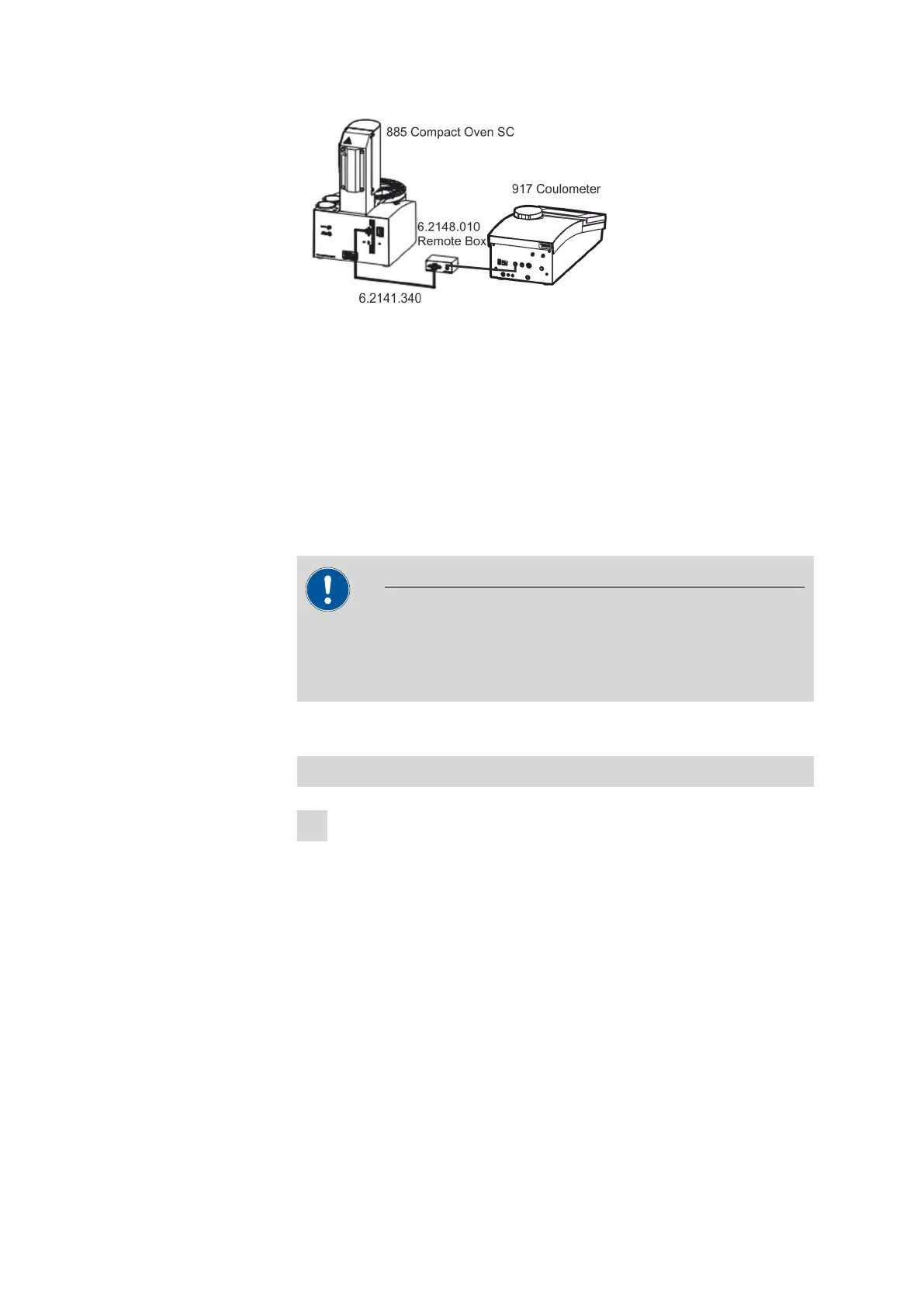

Figure 9 Remote connection 885 Compact Oven SC – Remote Box –
917 Coulometer
The 917 Coulometer is operated in KFC mode. The sample series is started
on the 885 Compact Oven Sample Changer.
2.2.7 Connecting sensors
The measuring interface contains the following measuring inputs:
￭ Gen. for a generator electrode
￭ Ind. for a double Pt electrode
￭ Temp. for a temperature sensor of the Pt1000 or NTC type
CAUTION
Under all circumstances, avoid mixing up the electrode cable from the
indicator electrode with the one from the generator electrode. Mark
the screw heads of the cables accordingly.
2.2.7.1
Connecting generator electrodes
Screwing the electrode cable to the generator electrode
1
Unscrew the protective cap from the generator electrode.
