metso automation maxPAC User Manual

Analog Input Modules
3-Wire RTD Module IOP 303
Metso Automation MAX Controls Inc. • 277596 •
4-5

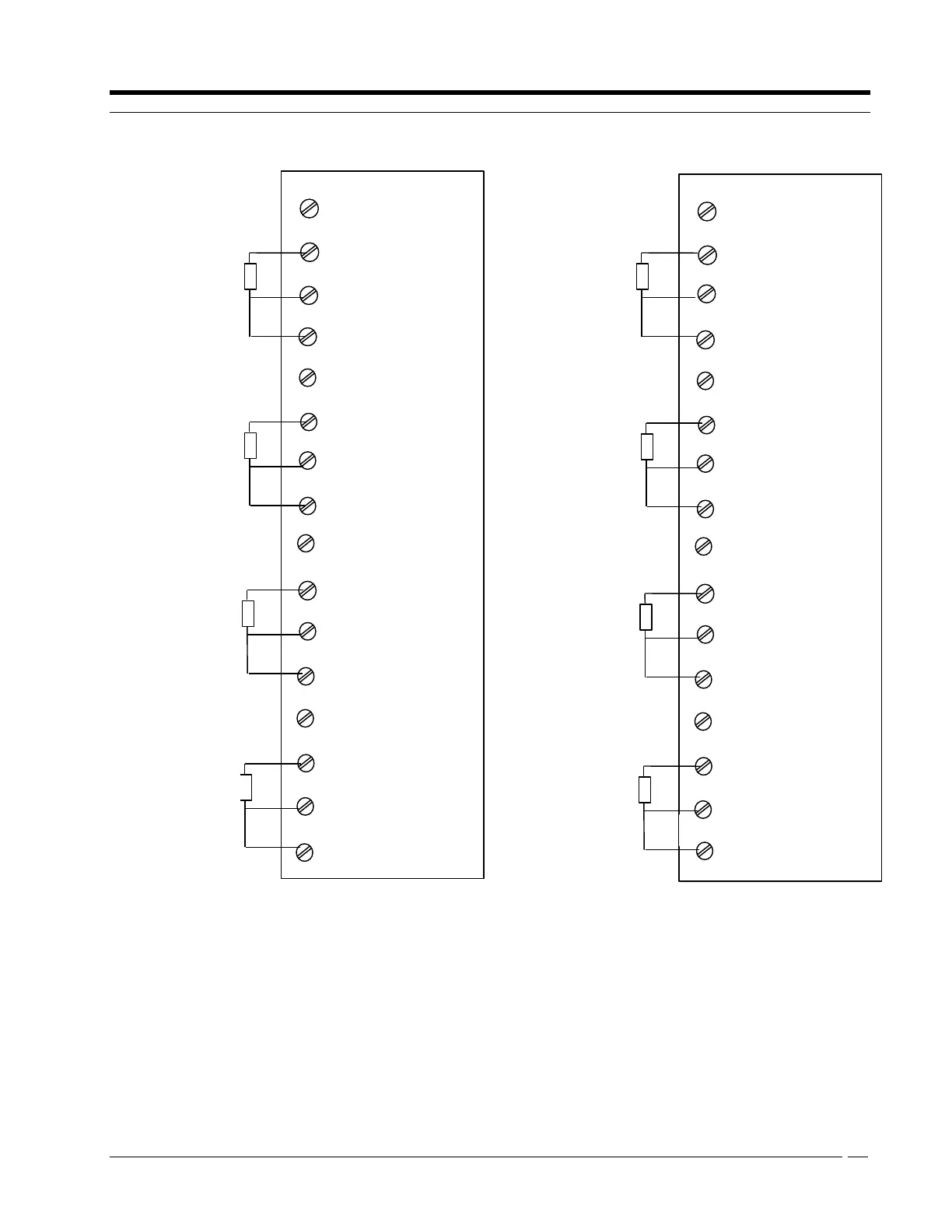

Field Wiring
P2
Channel 1
Channel 2
Channel 3
Channel 4
11
7
8
5
6
3
4
1
2
9
10
11
12
13
14
15
16
P3
Channel5
Channel 6
Channel 7
Channel 8
11
7
8
5
6
3
4
1
2
9
10
11
12
13
14
15
16
Note: Field wires must be of equal length
