Analog Output Modules

4-20mA Output Module IOP320

Metso Automation MAX Controls Inc. • 277596 •

6-7

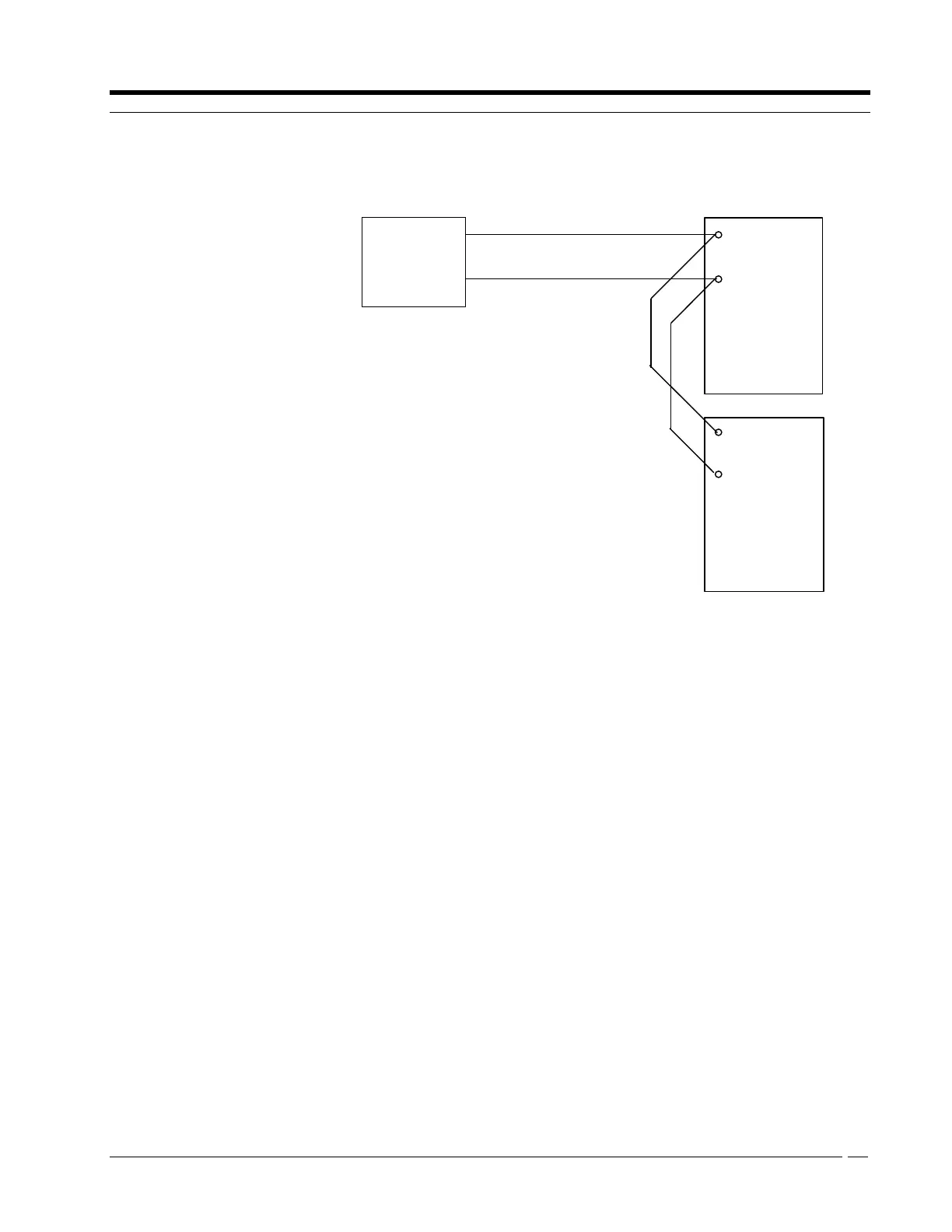

Field wiring for redundant modules with common end element

(+)

(-)

Primary

IOP320

AO Module

W2 – not installed

W3 – not installed

W4 - not installed

(+)

(-)

Secondary

IOP 320

AO Module

W2 – not installed

W3 – installed

W4 – not installed

Current

Loop

Controlled

Device
