metso automation maxPAC - IOP350;351 Field Wiring

Digital Output Modules
Form A/B of Relay Module IOP351
Form C Relay Module IOP350
Metso Automation MAX Controls Inc. • 277596 •
10-5

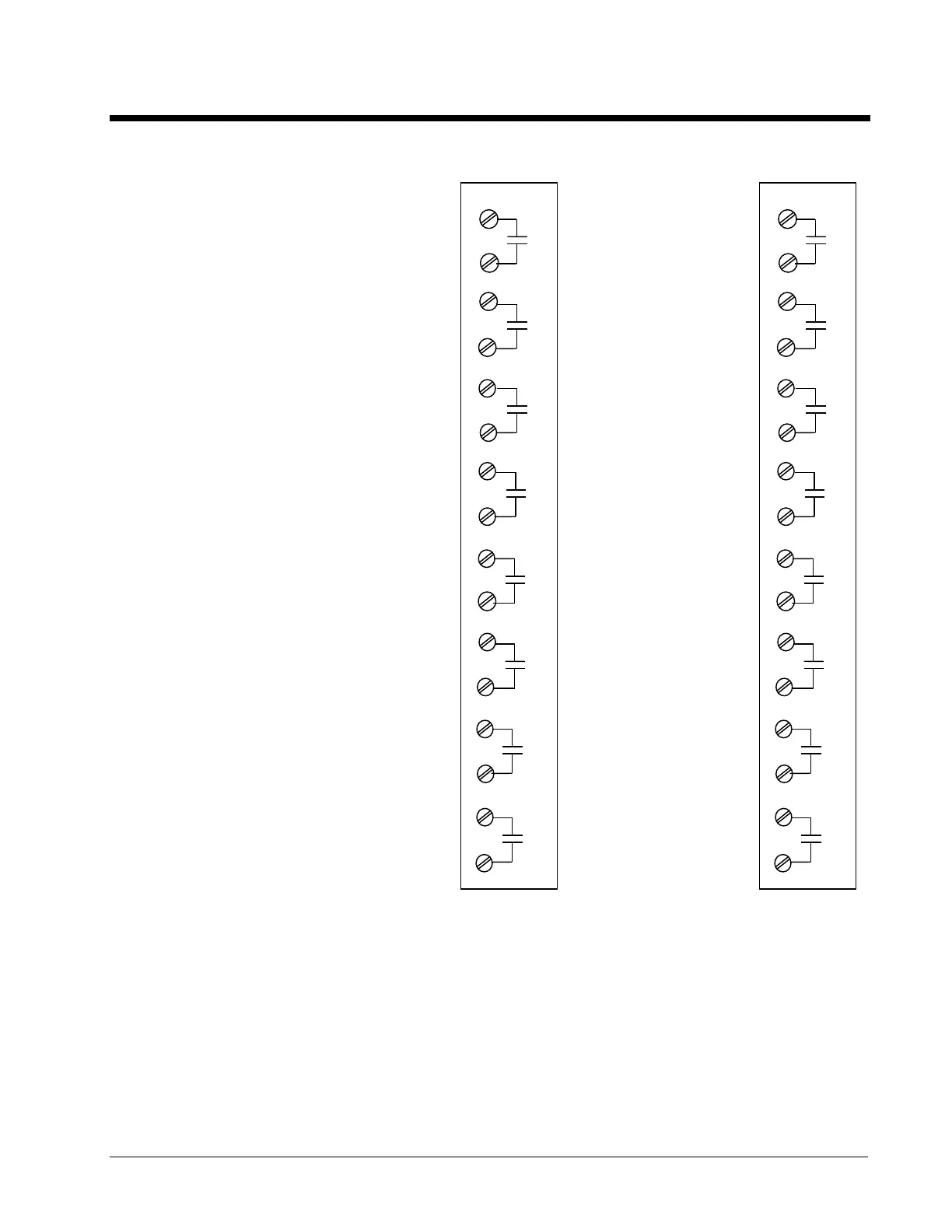

Field Wiring – IOP 351
P2
7
8
5
6
3
4
1
2
9
10
11
12
13
14
15
16
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
P3
7
8
5
6
3
4
1
2
9
10
11
12
13
14
15
16
Channel 9
Channel 10
Channel 11
Channel 12
Channel 13
Channel 14
Channel 15
Channel 16
