metso automation maxPAC - Chassis Assembly and Mounting

maxPAC Hardware Reference Guide
Metso Automation MAX Controls Inc. • 277596 •
1-2
The following figure shows a typical cabinet arrangement with I/O in both
the front and rear of the cabinet.

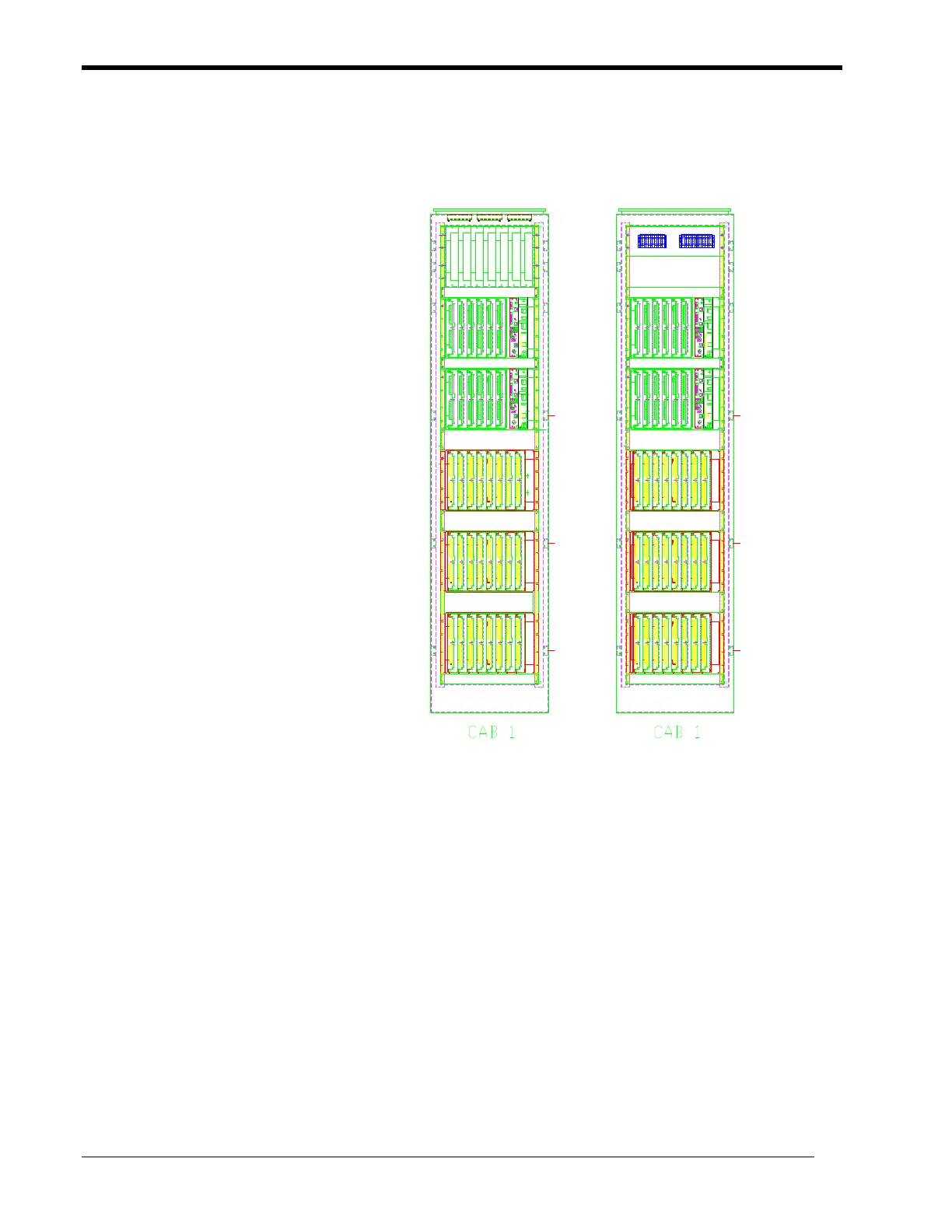

Figure 1-1. Typical Cabinet Arrangement, Front and Rear Views
Chassis Assembly
Three chassis assembly types are available for the installation of the I/O
module as follows:
q IOP382 Eight-pack assembly to accommodate up to eight maxPAC I/O
modules.
q IOP383 Six-pack assembly to accommodate a DPU or a Model 564 I/O
module in the right most position along with six maxPAC I/O modules; the
DPU takes up the equivalent of two maxPAC I/O module positions.
q IOP381 Four-pack assembly to accommodate four maxPAC or Model 564
I/O modules.
