Michell Instruments CDP301 User Manual

CDP301 Dew-Point Tester User’s Manual
4 97585 Issue 1, June 2020
INSTALLATION
2 INSTALLATION
The product should be used in a xed position as per the full installation instructions
provided in this User’s Manual.
The combined weight of the instrument and measurement cell is <8kg (17.6lb).
Appropriate lifting and handling techniques should be used during the carrying and
installation process. Before commencing any lifting or handling ensure that the intended
location is suitable and appropriately prepared. Make sure that mounting point design
considerations have employed locally approved safety factors. When handling and
installing this instrument (particularly after removal from its packaging) ensure that
it is not dropped, impacted or subjected to high levels of vibration or environmental
conditions that may impair its operation.
The CDP301 is housed in a copper-free, aluminium Exd enclosure suitable for 5/8’’ -11
UNC tripod mounting and benchtop operation, using the Michell Instruments benchtop
stand. The enclosure provides environmental ingress protection IP64 and can be
mounted vertically or horizontally in a location free of any appreciable vibration. If used
outdoors, it should be placed in a shaded position to prevent heating eects through
sun radiation.
DRAWN
CHECKED
ENG APPR
MGR APPR
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETERS
ANGLES ±X.X°
2 PL ±X.XX 3 PL ±X.XXX
NAME
adam.harley
DATE
06/26/20
Solid Edge
TITLE
SIZE
A2
DWG NO REV
FILE NAME: Images for Steve .dft
SCALE: WEIGHT:
SHEET 1 OF 1
GAS INPUTGAS OUTLET
82.5
238 DIA
278
FLOW RESTRICTOR
BREATHER
1/8"FNPT INTO
FLAME ARRESTOR
1/8" FNPT INTO FLOW RESTRICTOR
EARTH/GROUND
CONNECTOR

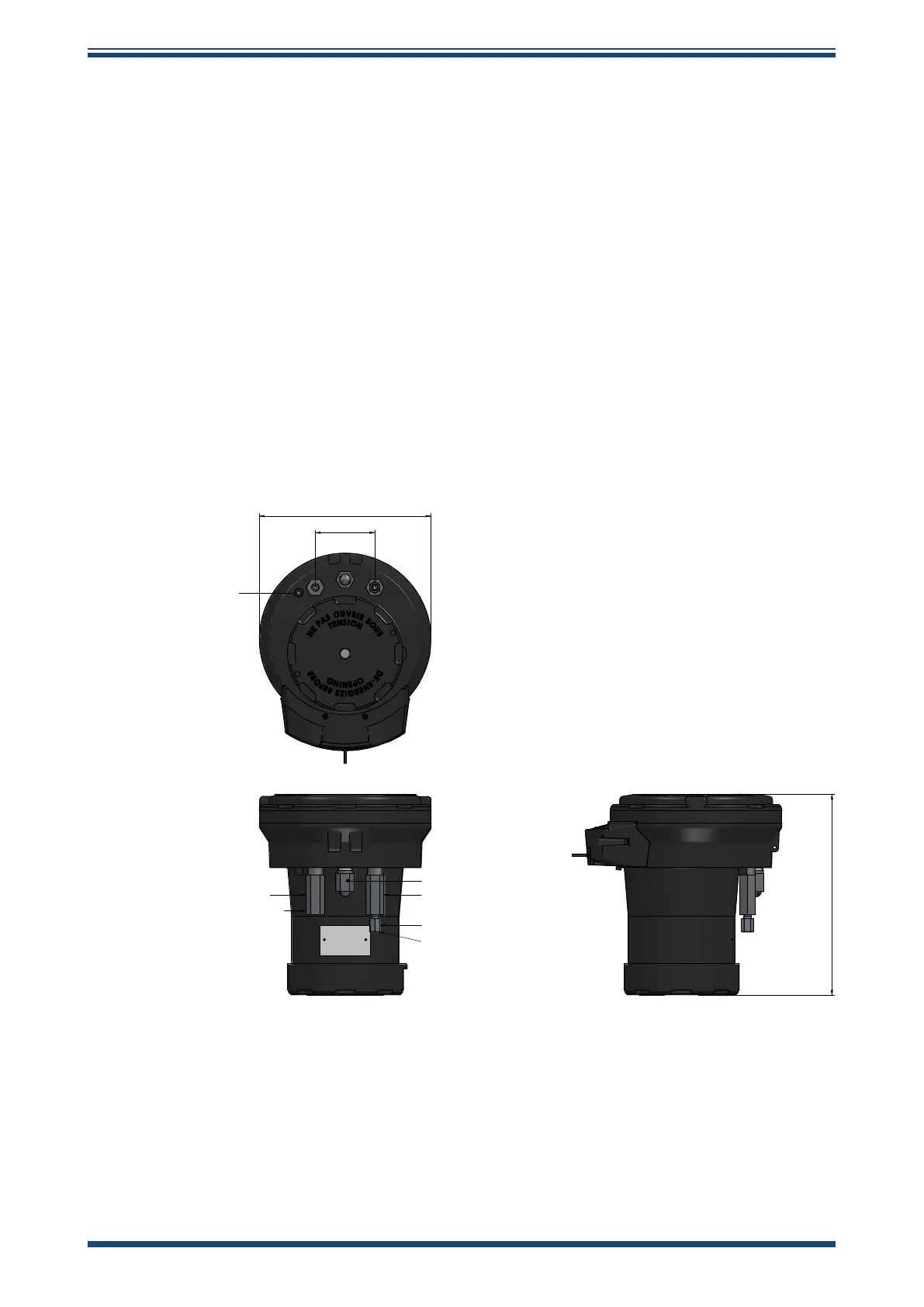

Figure 1 Dimensions and Gas Connections
