CDP301 Dew-Point Tester User’s Manual
Michell Instruments 17
OPERATION
3.2.2 Front Page B Navigation
Front Page B shows a full screen image of the mirror surface. From this screen it
is possible to view and capture still images or video of the mirror surface during
measurement.

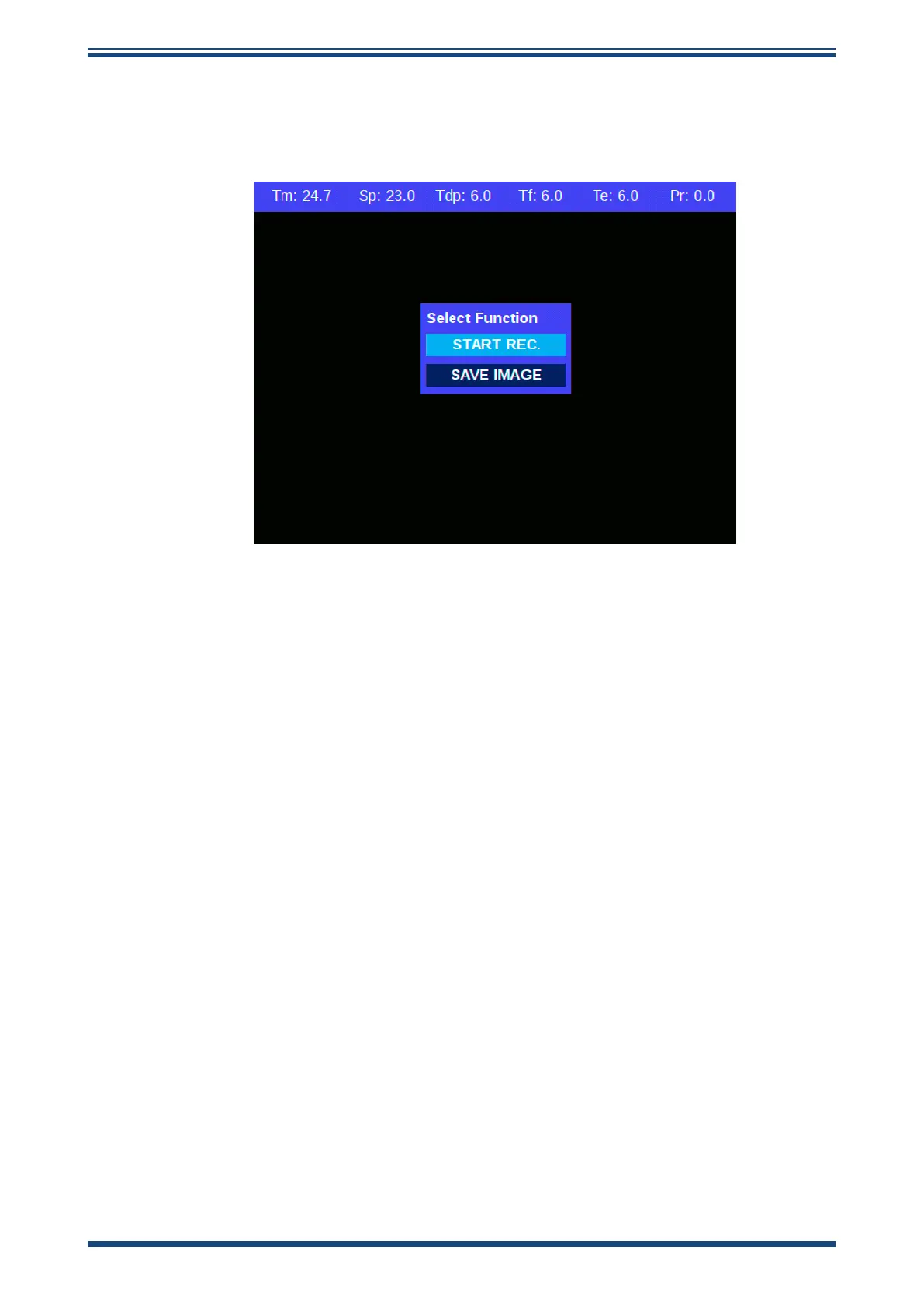

Figure 8 Front Page B – Pop Up
Front Page B controls:
• Long ENTER press – open Quick Menu
• Start Rec. / Stop Rec. – Start the recording of video or stop the recording
of video. A red circle will ash at the top right of the display to indicate
that a video is being recorded.
• Save Image – Saves an image of the current Front Page B (excludes the
pop-up menu). A red circle will momentarily appear at the top right of the
display to indicate that an image has been saved.
