Img X Oset: 0% to 100% in 1% steps – Adjusts horizontal location of camera display
Img Y Oset: 0% to 100% in 1% steps – Adjusts vertical location of camera display
3.2.4.8 Battery Status
Displays battery and system power (information only)
Capacity Remaining: 0.0 to 100.0% – amount of capacity available before a recharge
is required
Voltage: Range 10.0 to 20.0V Battery voltage level
Current: Range 0 to 5000mA Battery current draw (Charging current shows as positive)
Temperature: 50 to 100°C (122 to 212°F) Battery pack temperature
TEC Drive: Range -100% to 100% – TEC power drive (Cooling shows as negative,
heating as positive)

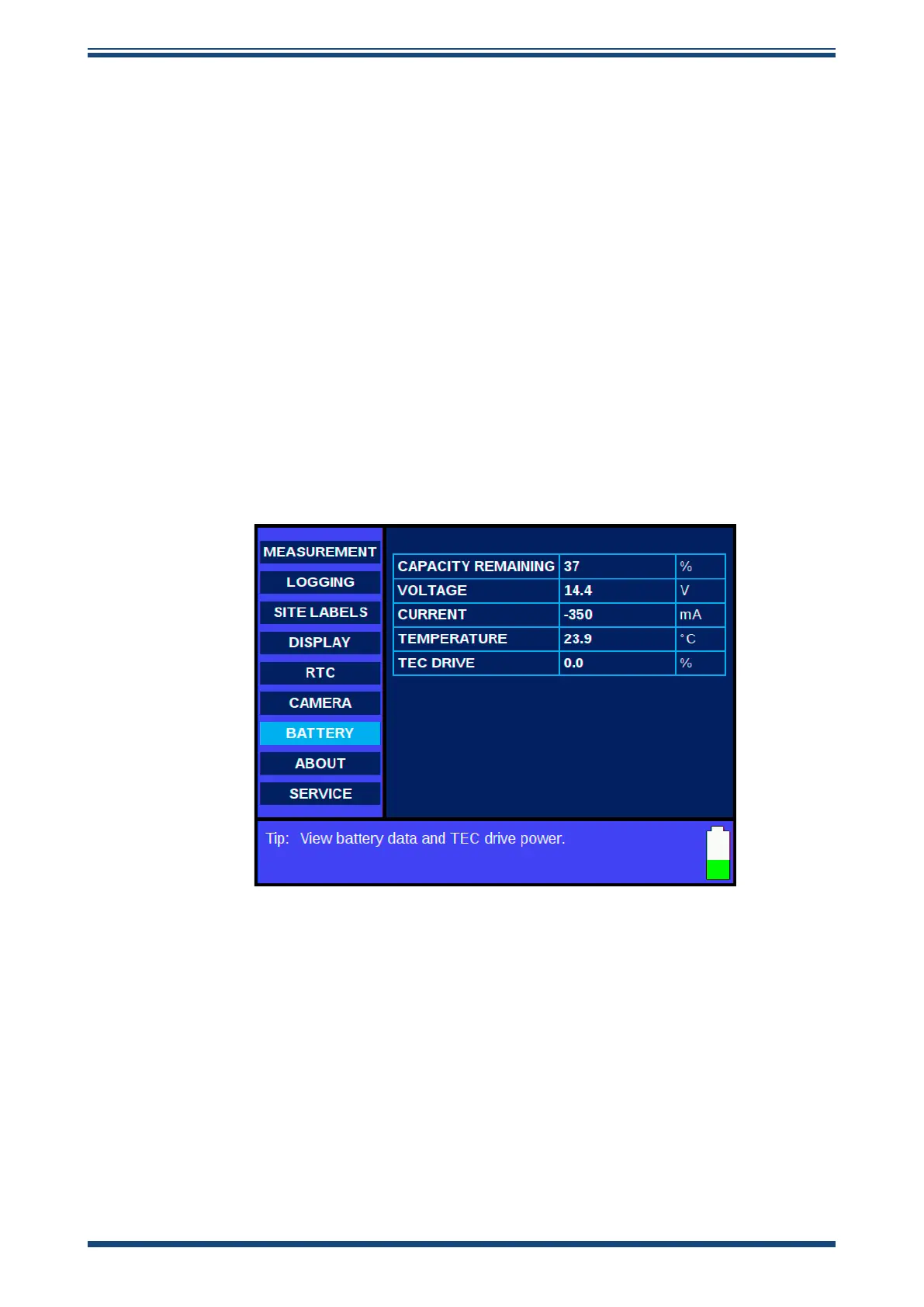

Figure 21
Configuration Menu – Battery Page
To Next Page
