OPERATION
If ramp is in paused state:
• First short ENTER press – saves condensation formation temperature (Tf)
• Second short ENTER press – saves evaporation temperature (Te) and dew
point (Tdp).
• Third short ENTER press – clears values
• Short ESC press – scrolls to Front Page B, then Front Page C
• Long ESC press – go to conguration page
Figure 7

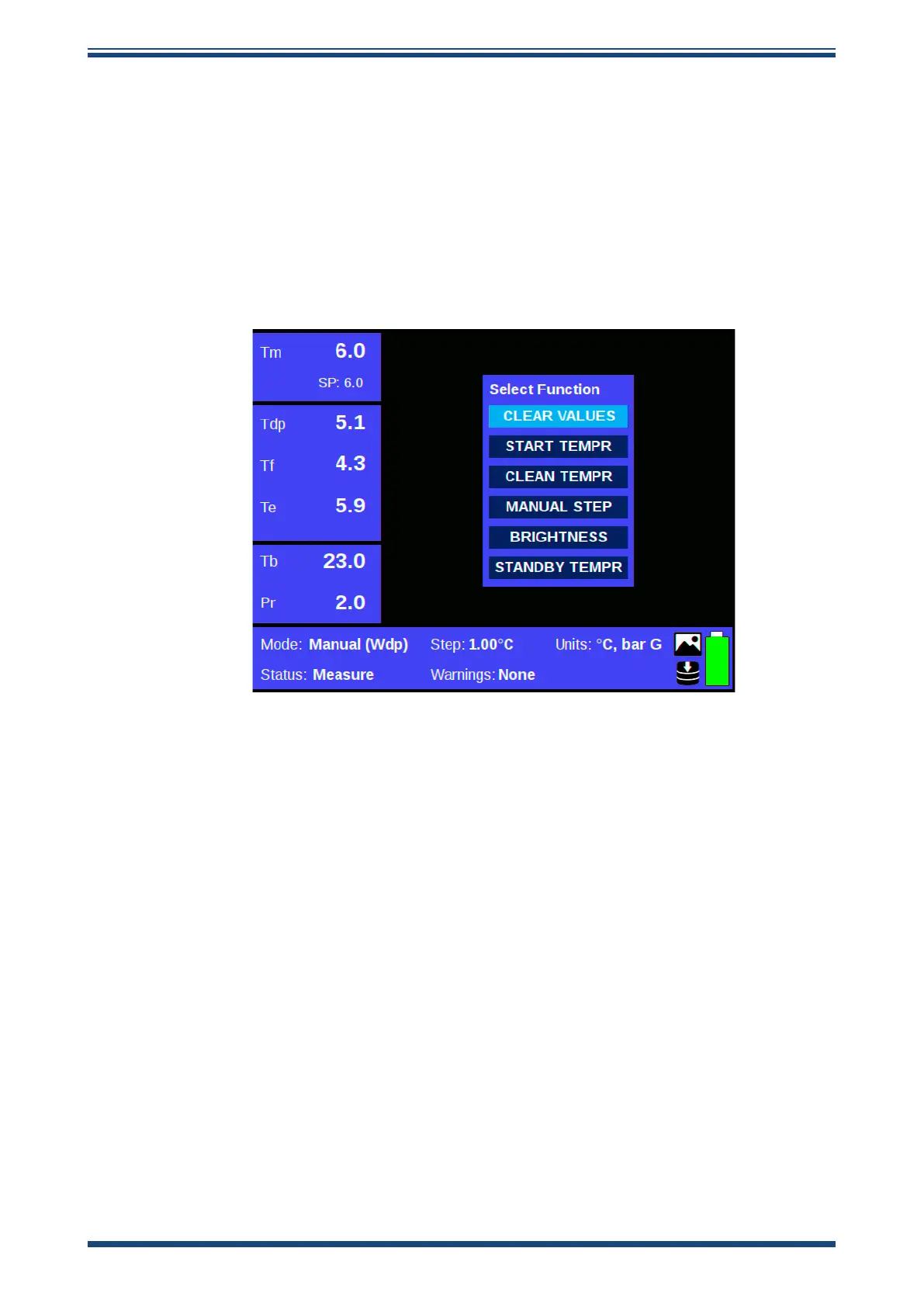

Front Page A – Quick Menu
Front Page A – Quick Menu Controls
• Clear Values – Cancels and clears Tdp, Tf and Te values ready for a new
measurement
• Start Tempr – Sets the mirror temperature setpoint to the START TEMPR
• Clean Tempr – Sets the mirror temperature setpoint to the CLEAN TEMPR
which is calculated as Tb + CLEAN TEMPR OFFSET
• Manual Step – Navigates to the manual step option in the conguration
menu
• Brightness – Navigates to the display brightness option in the conguration
menu
• Standby – Sets the mirror temperature setpoint to the tb value and power
to the TEC is turned o.
• Take Ref Img (Take Reference Image) – This function is only available in
one of the enhanced ANALYSIS MODES. All enhancement modes utilize a
reference image. Select this function to take a reference image. Normally
done when the mirror is clean (heated).
