CDP301 Dew-Point Tester User’s Manual
18 97585 Issue 1, June 2020
OPERATION
3.2.3 Front Page C Navigation
Front Page C controls:
From this page, saved Logs, Images and Videos can be viewed or deleted*. The 3 le
types are stored in separate folders and are accessed by scrolling UP or DOWN using
the arrow buttons and pressing ENTER to select the desired log le.

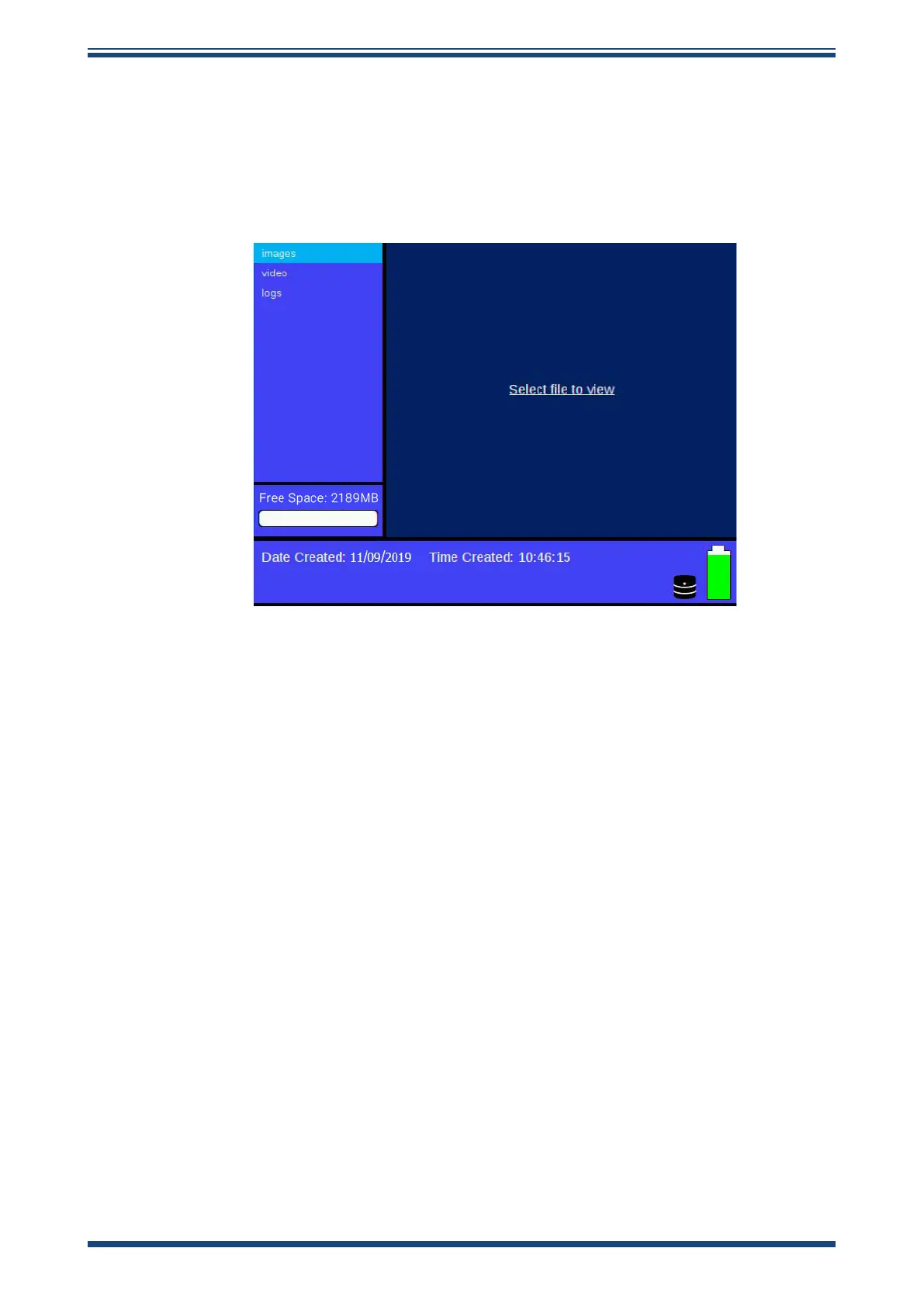

Figure 9
Front Page C – Main Page
Video recording is 5MB/min in MP4 format. The unit can store ~300 minutes of video
clips.
Still images are JPEG or PNG format, full colour 200KB size for HCdp Dew-point Type or
red ltered 50KB size for Wdp Dew Point Type.
Total storage capacity for video, still image and log les is 2GB.
* If the instrument is connected to a PC via the USB connection, then it will not be
possible to view any les in this page until the USB is disconnected.
Images will be available to view either within the Images folder or within the logged
data folders. The images are listed in chronological order with the newest at the top.
• Pressing ENTER will display the image in full screen.
• Pressing ESC will cancel the full screen view.
• A long press of ENTER will give the user the option to delete the image
via a pop-up conrmation box.
