MICRODOS Pooltec - Connecting up the Main Pump to Microdos Pooltec; Front Panel Opening;Closing

Installation, Programming and Maintenance Microdos Pooltec
Rev. 1.0 EN
10

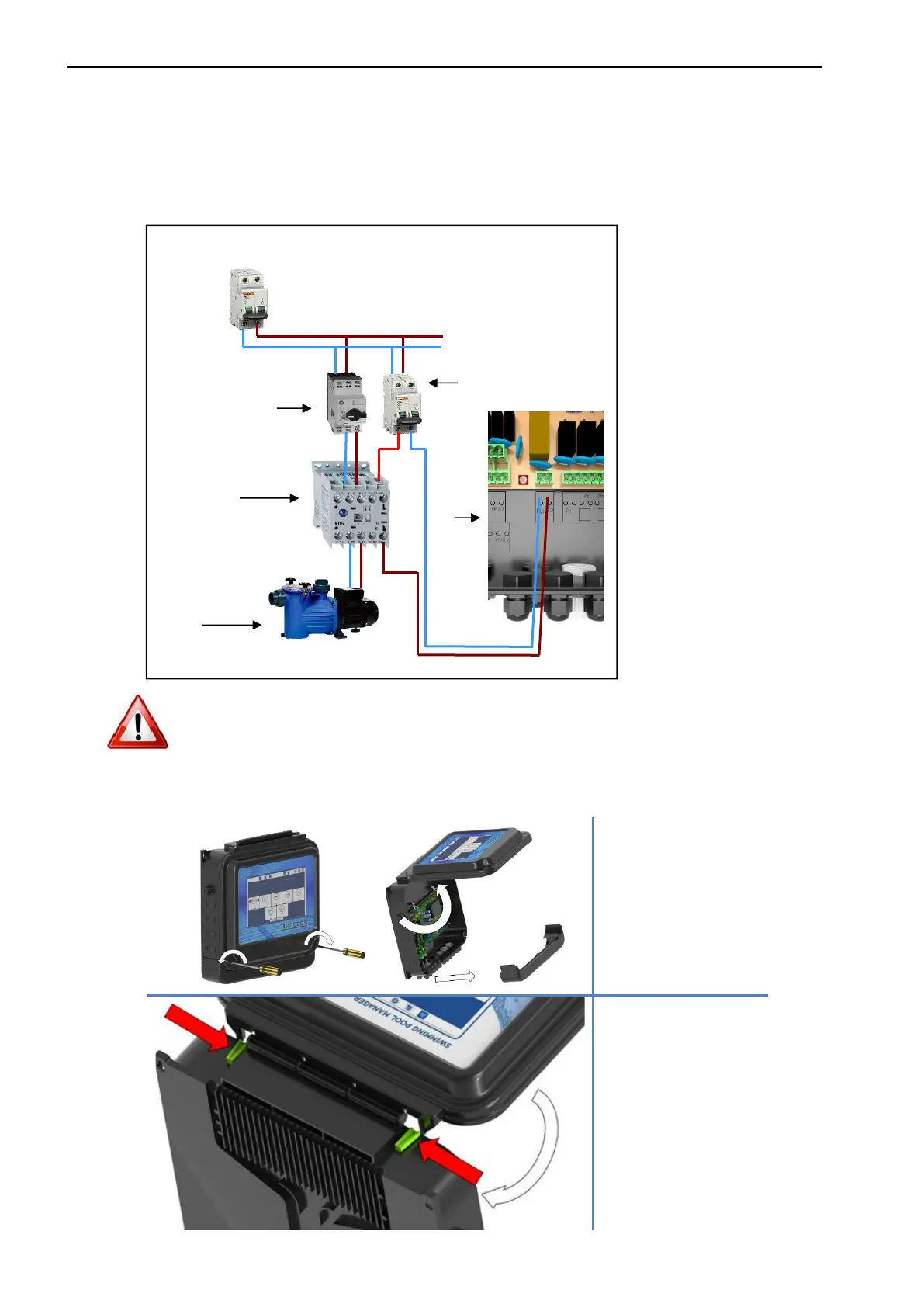

3.2.2. CONNECTING UP THE MAIN PUMP TO MICRODOS POOLTEC
Microdos Pooltec connects/disconnects the coil of the recirculation-pump contactor. For this, we create a bridge with the
Microdos Pooltec at the cable that runs from the pump’s circuit-breaker to the A2 of the contactor’s coil (SEE BELOW).
If the recirculation pump already has a timer, do not connect it to POOLTEC or set it to manual (24 hour operation).
3.2.3. FRONT PANEL OPENING/CLOSING
OPENING
To access the connection
compartment it is necessary
to open the front panel:
- Unscrew the 2 screws
- Remove the cover
CLOSING
To close the front panel it is
necessary to hold the 2
tabs on the back at the
same time, as indicated by
the red arrows.
GENERAL MAGNETOTHERMIC
N
A1
A2
L
RELAY CURRRENT
OVERLOAD
VERY IMPORTANT
CONTACTOR 110-230V
MANEUVER
MAGNETOTHERMIC
CIRCULATION
PUMP
POOLTEC
CONNECTING OF THE CIRCULATION PUMP TO ELECTRIC PANEL AND TO MICRODOS
POOLTEC
