Microengine XP-GT Series - 5 Alarm Menu; Input Setting



49

MicroEn
g
ine
®

XP-GT/GTR Programming Manual
v4.00

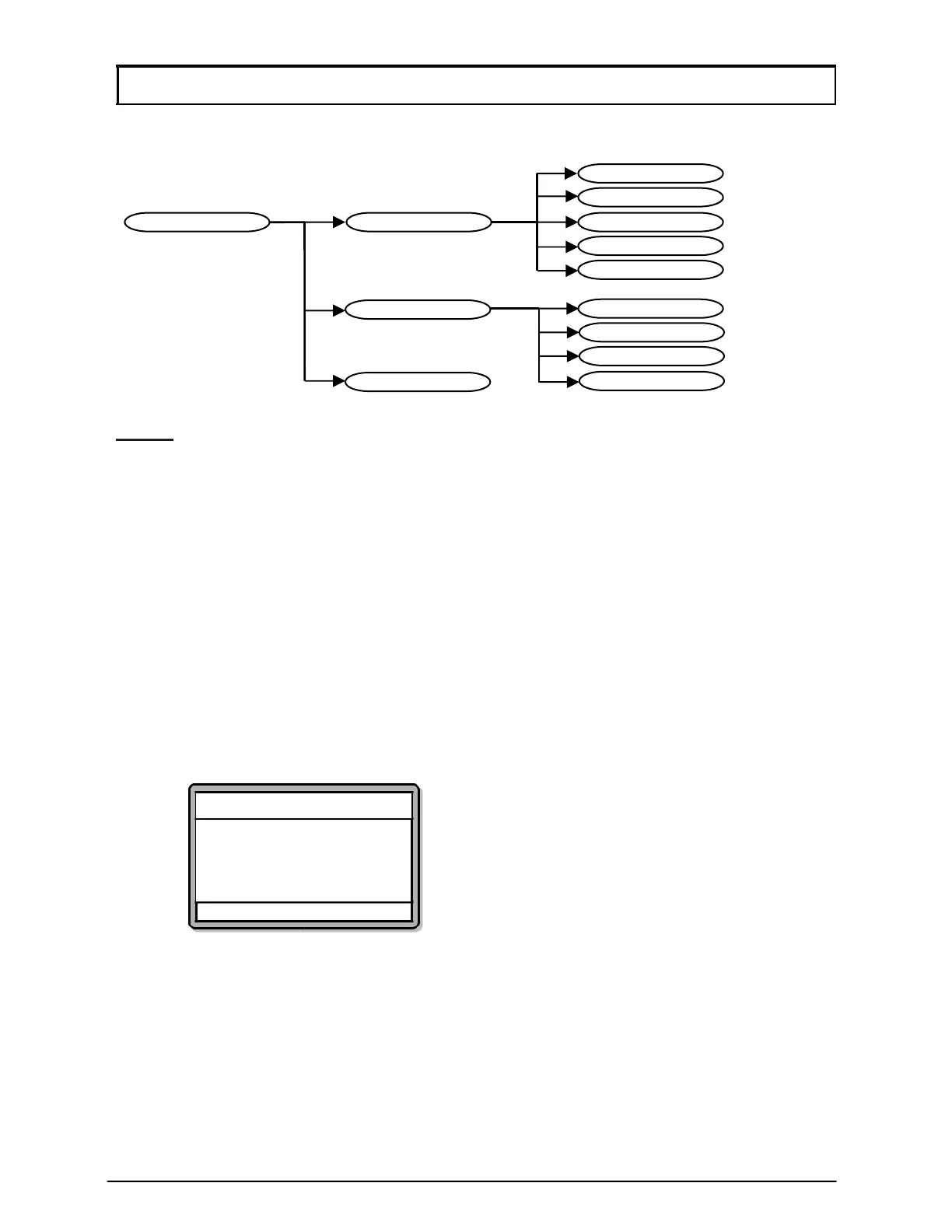

5. Alarm Menu
NOTE:- The Alarm Menu is only applicable to XP-GTR (1200, 3000, 1200L, 3000L)
series only.
5.1 Input Setting
5.1.1 Arm/Disarm Sensor
This menu lets users arm or disarm sensors connected to the controller.
To arm or disarm a sensor, please follow steps below:
1. Enter Configuration Menu.
2. Press 5 for Alarm Menu.
3. Press 1 for Input Setting.
4. Press 1 for Arm/Disarm Sensor. Screen as below will be shown. Press 1 or
2 to select the sensor. Press
↑ or ↓ to arm or disarm the input and press √ to
save changes.
Arm/Disarm Sensor
Enter Input No.[?]
(Min=01, Max=02)
Status : [Disarm]
√ - OK X – Cancel
5.1.2 Arm Delay
This menu lets users program the arm delay time for the sensors connected to the
controller.
To specify the arm delay time, please follow steps below:
1. Enter Configuration Menu.
2. Press 5 for Alarm Menu.
3. Press 1 for Input Setting.
5
)
Alarm Menu
1
)
In
p
ut Settin
g
1
)
Arm/Disarm Senso
r
2
)
Arm Dela
y
3
)
Tri
gg
er Dela
y
4
)
Sensor Arm TZ
5
)
View Sensor State
1
)
Out
p
ut On/Off
2
)
Out
p
ut T
yp
e
3
)
Event T
yp
e
4
)
Out
p
ut TZ
2
)
Out
p
ut Settin
g
3
)
Panel Status
